PT-105HD-V2 - CNC Plasma Table

Name: PT-105HD-V2 - CNC Plasma Table
SKU: BA9-1231495A
Price: 29999 USD
Availability: InStock

Stock Number:

BA9-1231495A

$29,999.00

LIMITED TIME ONLY| ORIGINAL PRICE $39999

Enhanced Bullet 1: 220V 1-phase CNC plasma table

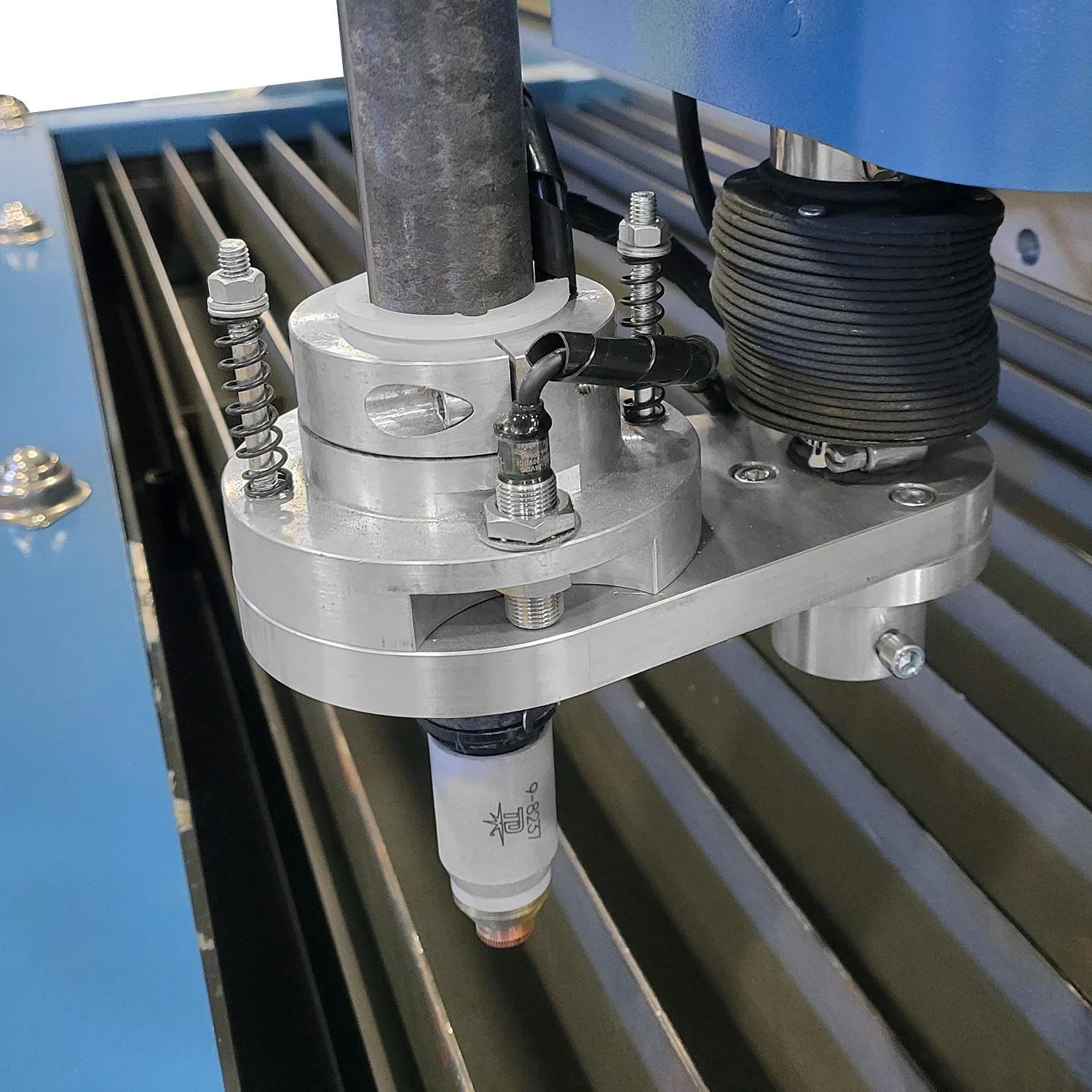

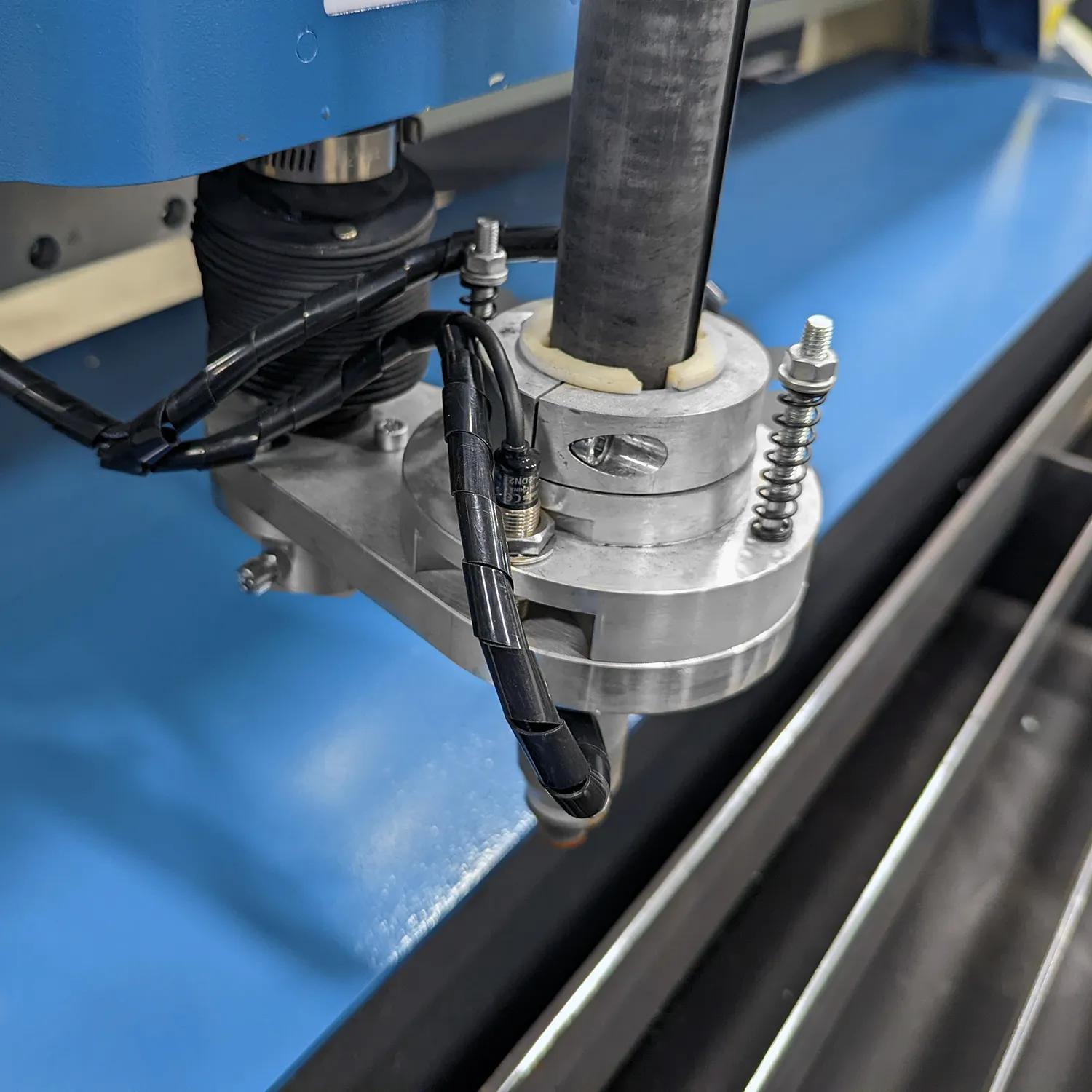

Enhanced Bullet 2: Automatic height detection

Enhanced Bullet 3: Panasonic motors for X, Y, and Z axes

Enhanced Bullet 4: Large enough for 5’ X 10’ sheets

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Real Applications

Product Overview

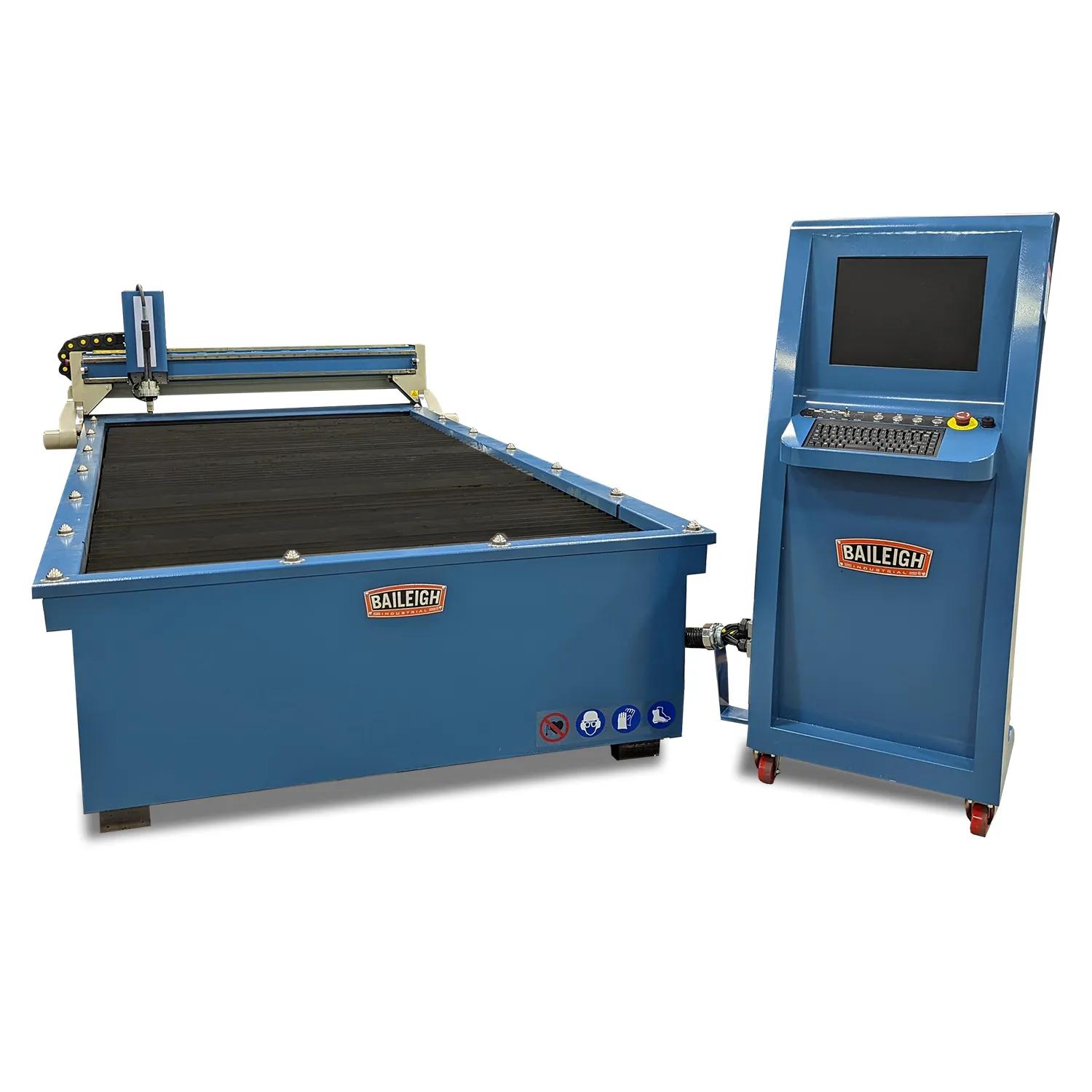

Our PT-105HD-V2 is the next generation of our plasma tables, it has the structural strength to handle 5’ x 10’ sheets. Automatic height detection is ideal for production runs. It arrives nearly fully assembled and comes with the software. For our version with an integrated water bath, see the Baileigh 60” x 140” CNC Plasma Table PT-105HD-W.

Plasma torch systems are sold separately. We’ll let you choose the Thermal Dynamics Cutmaster model that works best for your application. This table is compatible with automatic torches, but not manual ones.

BOBCAD-CAM EXPRESS DESIGN SOFTWARE (INCLUDED)

The PT-105HD comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.

+ Show More

Features

Runs on 220-volt single-phase power.

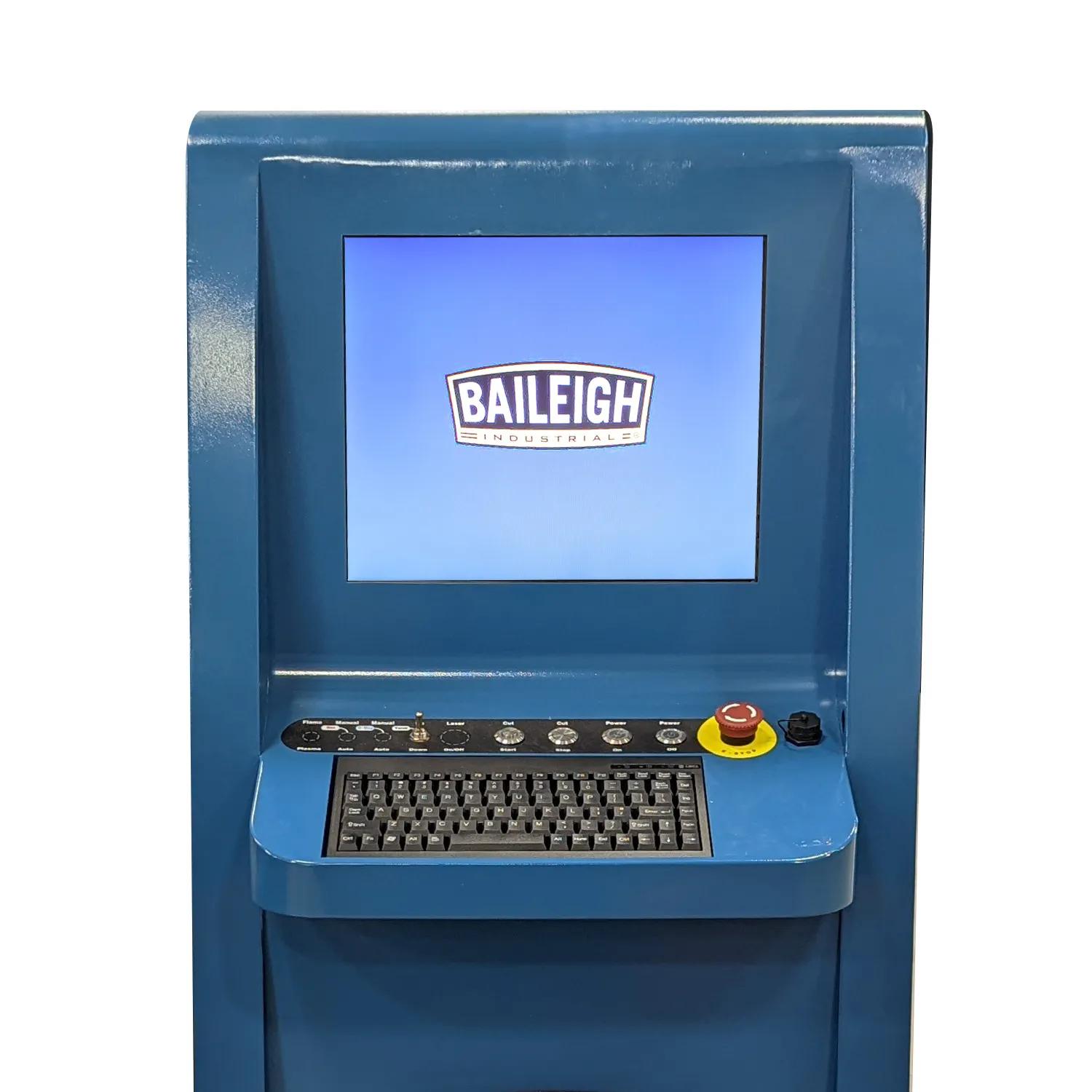

Control the X, Y, and Z-axis movement from the sturdy podium with a large console screen and keypad.

Includes easy-to-learn design software that you can load into any basic PC (more details below).

The console offers a pre-loaded library of shapes that you can resize and alter at the table—without a computer.

Panasonic® brushless servo motors, controlled by Panasonic® servo motion controllers, drive the gantry.

Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.

High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.

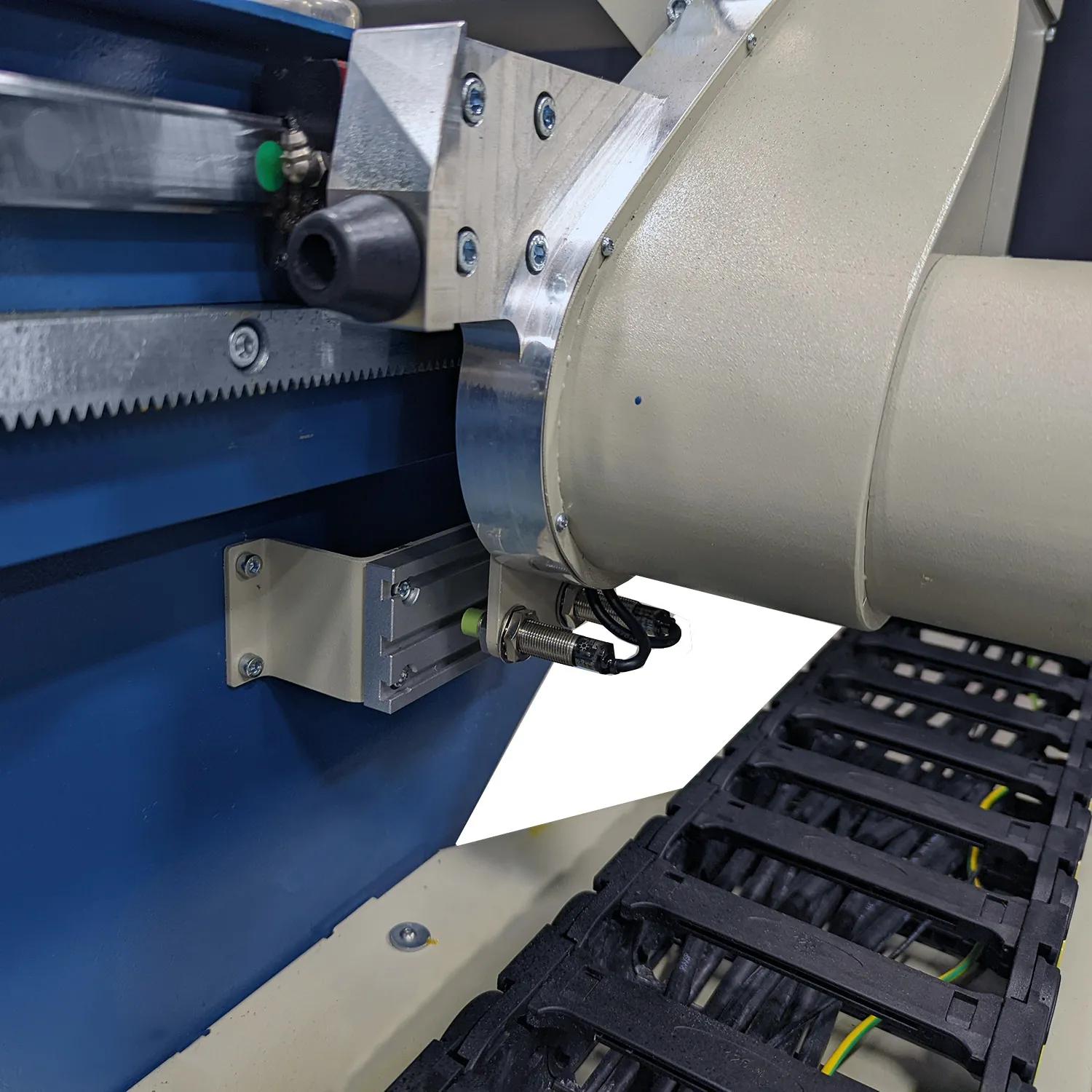

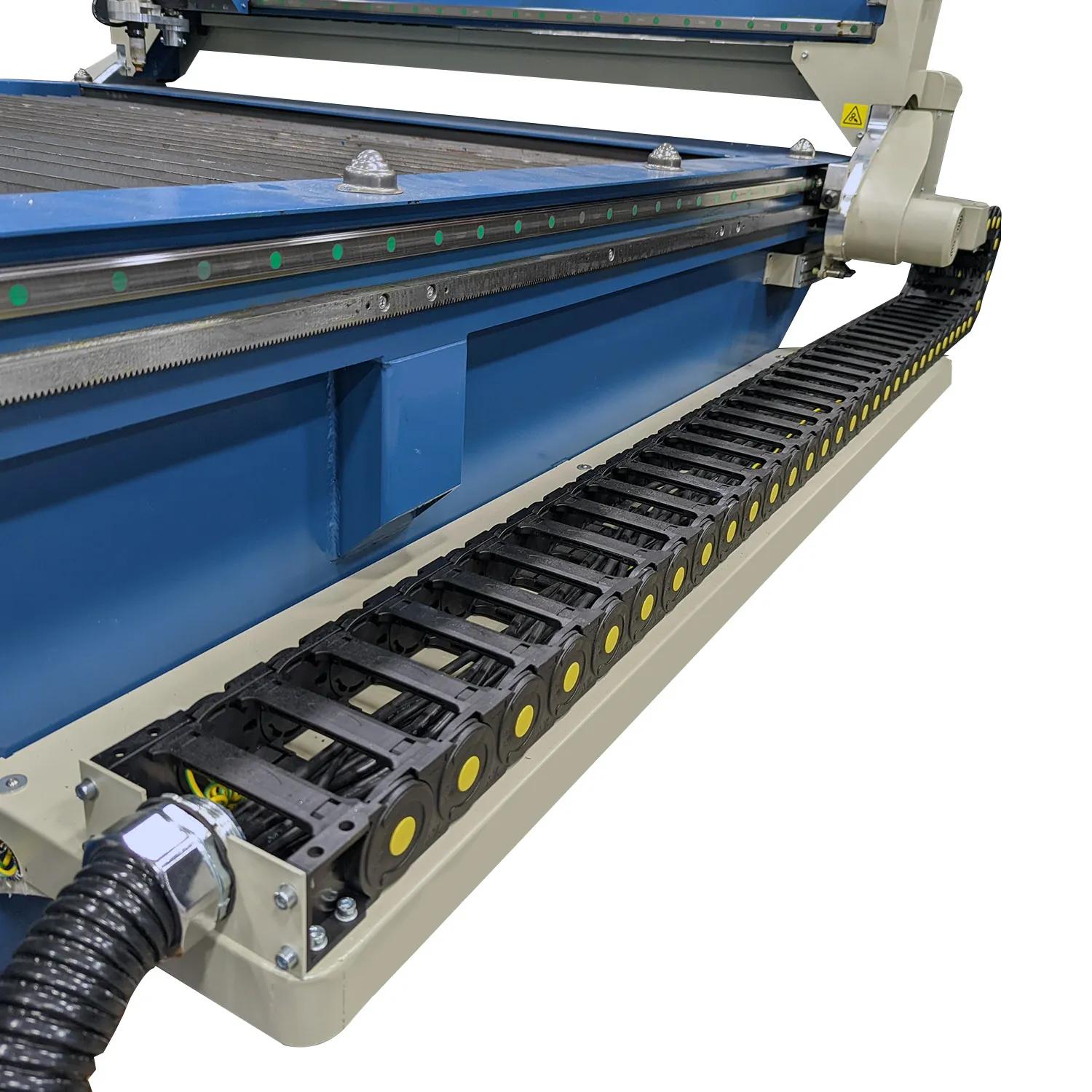

Axes ride on heavy-duty Hiwin square rails.

Wipers on rails keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.

Our design reduces the risk of damaging the table while loading or pinching your forklift—unlike competing plasma tables with recessed work areas.

Specifications

More Information
Stock Number	BA9-1231495A
Drive	Servo Motor
Input Power	220 Volt Single Phase
Model Number	PT-105HD-V2
Prop 65	Cancer and Reproductive Harm
Shipping Dimensions (L x W x H) (In.)	160" x 102" x 68"
Software	BobCAD-CAM
Table Dimensions (In.)	60" x 140"
Travel Speed (FPM)	315 Inches Per Minute
Warranty	1 Year
Gross Weight	4000.0
Net weight	4000.0
Machine Weight (lbs.)	3520
