PT-48AH-W - CNC Plasma Table

Stock Number
BA9-1225308
$14,999.00
Click LeaseLeasing starts at $451 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $451

Product Overview

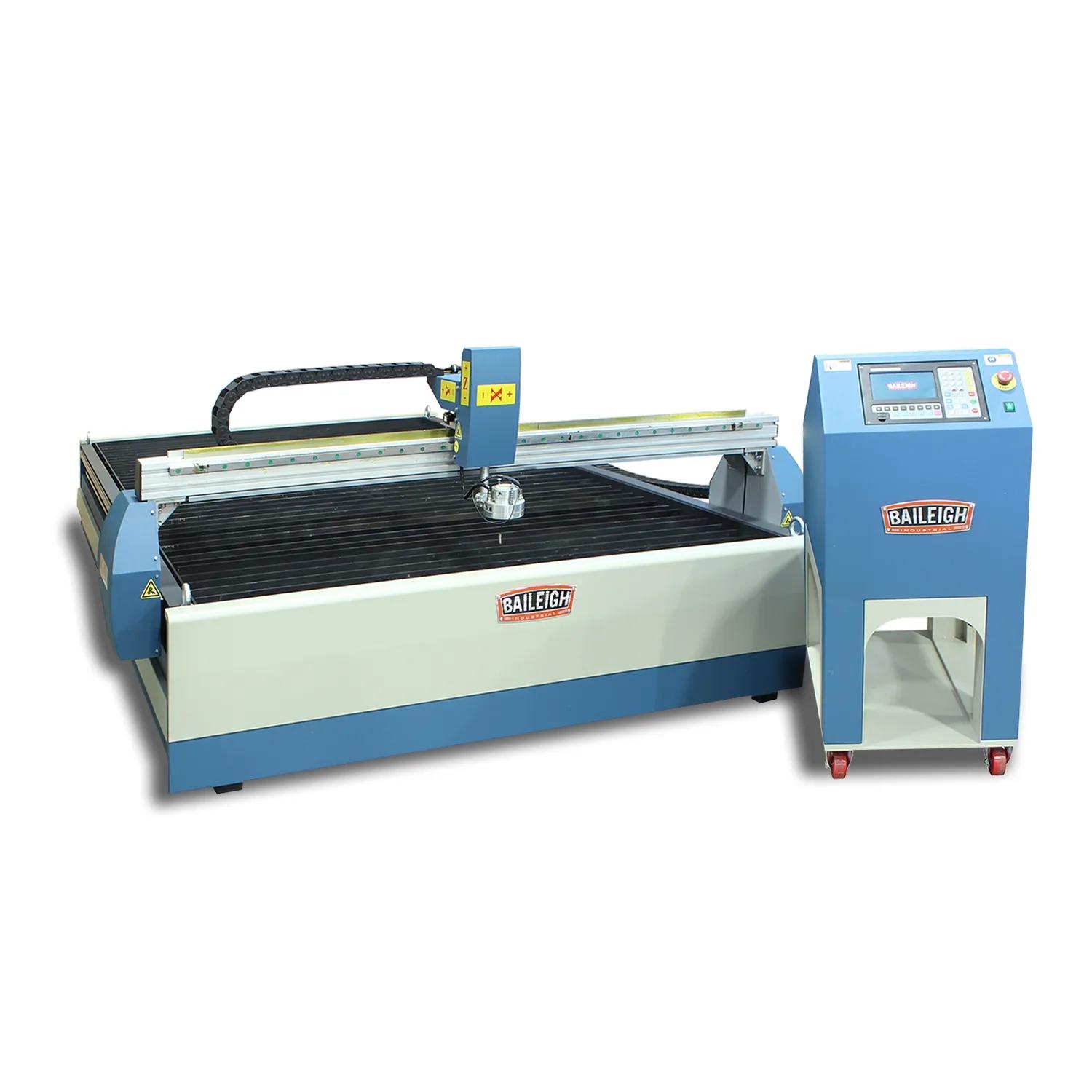

With variable height control, the PT-48AH-W makes perfect cuts in uneven material. This CNC plasma table comes assembled with a heavy steel frame and includes design software.

*To get started just:

*Uncrate the machine.
*Add a plasma system, power, and a clean, dry air supply.
*Fill tank with water.

*Industrial plasma cutter Covered by a 1-year parts warranty.
*We keep most replacement parts in stock for quick shipping.
*You can depend on lifetime technical support by phone from our team of knowledgeable reps.

Plasma torch systems sold separately. We’ll let you choose the Thermal Dynamics Cutmaster model that works best for your application. This CNC plasma cutting machine is compatible with automatic torches, but not manual ones.

BobCAD-Cam Express Design Software (Included)

The PT-48AH-W comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive. To learn more or download a free trial, click the BobCAD-Cam logo above.

Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.


+ Show More
Runs on 220-volt single-phase power with a 60" x 100" working area

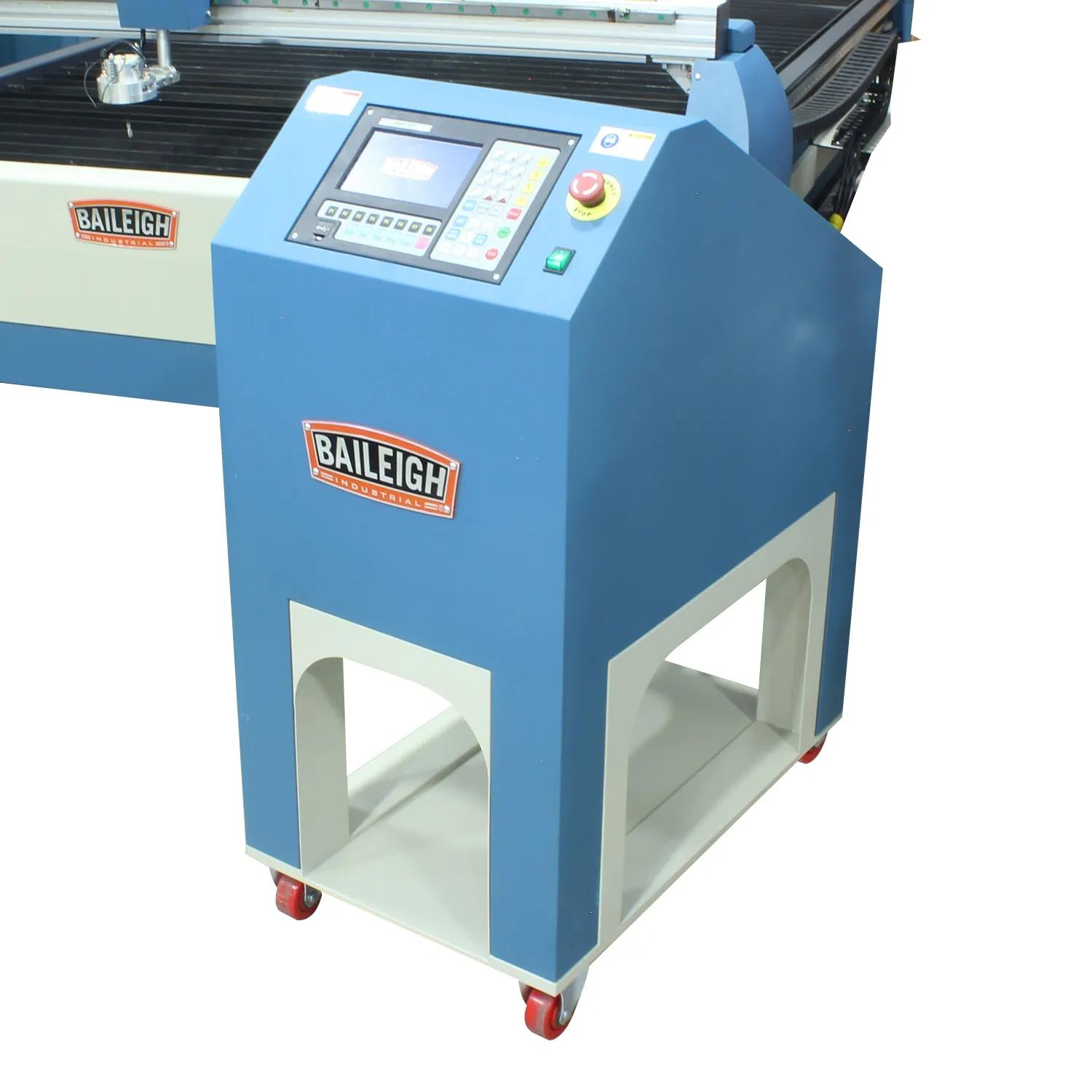

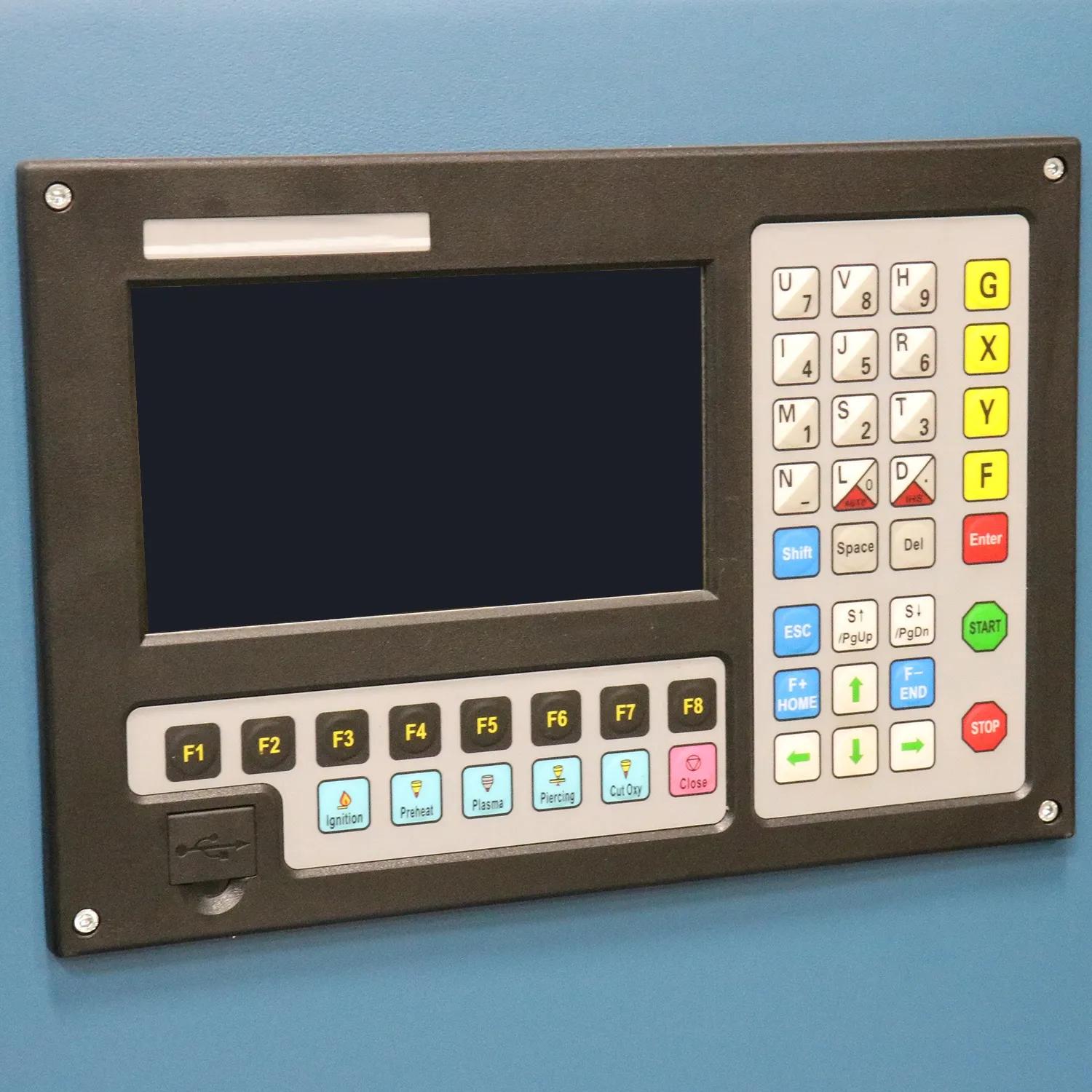

You can control the X, Y, and Z axes using the integrated panel on the podium
Automatic height control is integrated into the operator’s panel, eliminating secondary systems found on many other tables

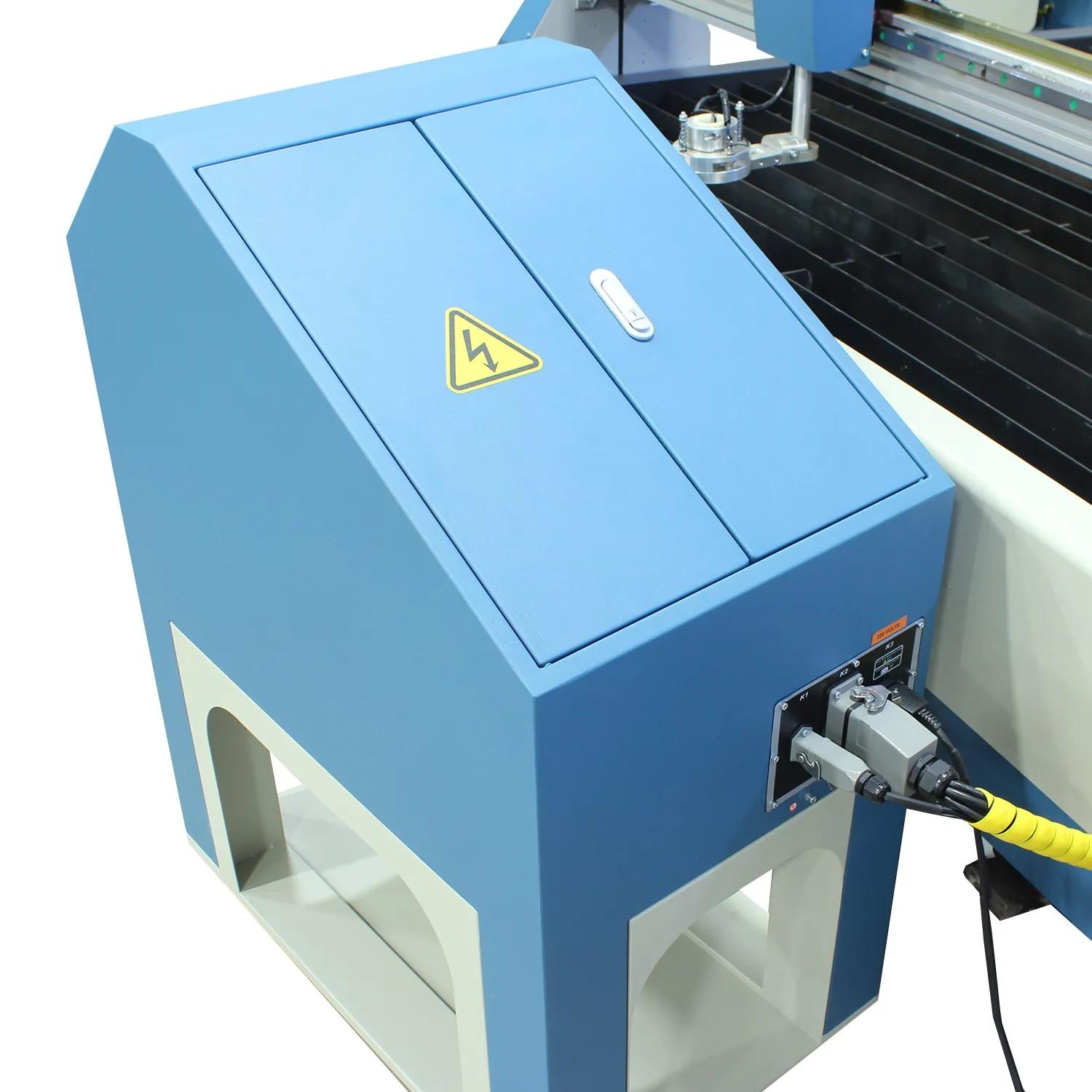

Operator’s podium provides space for plasma power unit even while cutting
If the material is uneven or puckers under the heat of the torch, the variable height control will rise or lower in real time while cutting

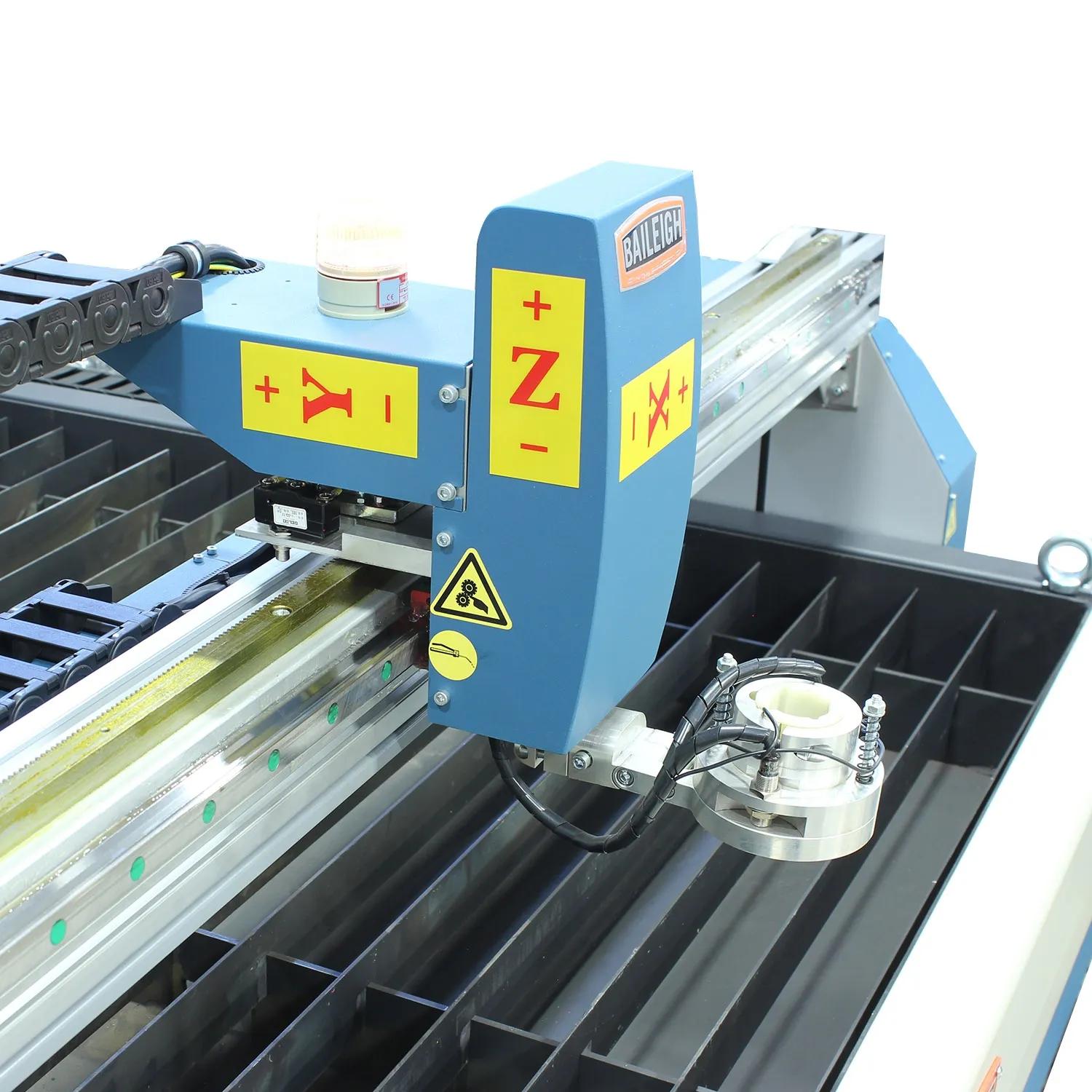

X, Y, and Z axes are controlled by quality stepper motors, allowing for fast and fluid movement
Fully enclosed wires and electronics prevent snags and tangles

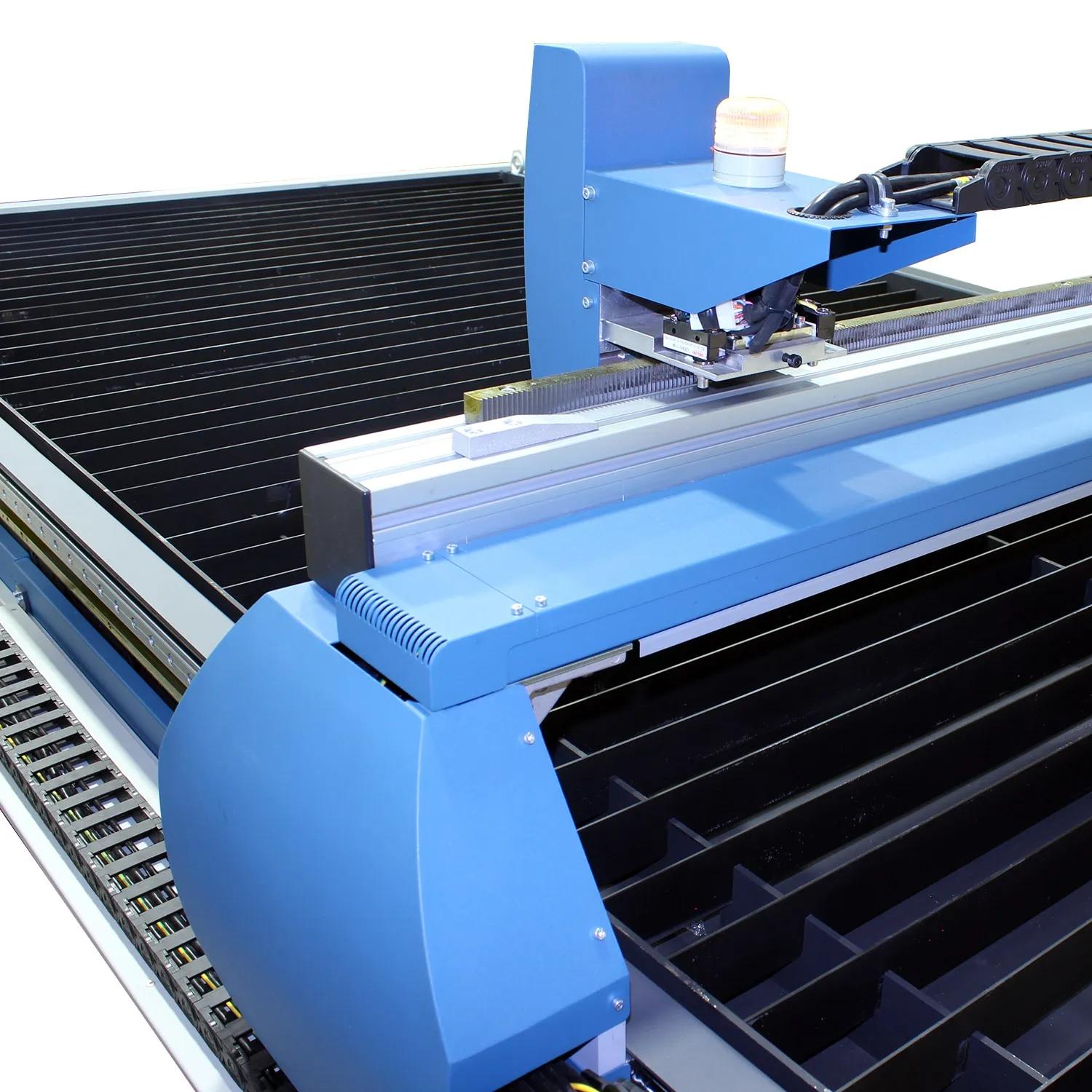

Made of heavy-gauge boxed steel, this CNC plasma cutting machine can easily support large, thick industrial-sized sheets of metal

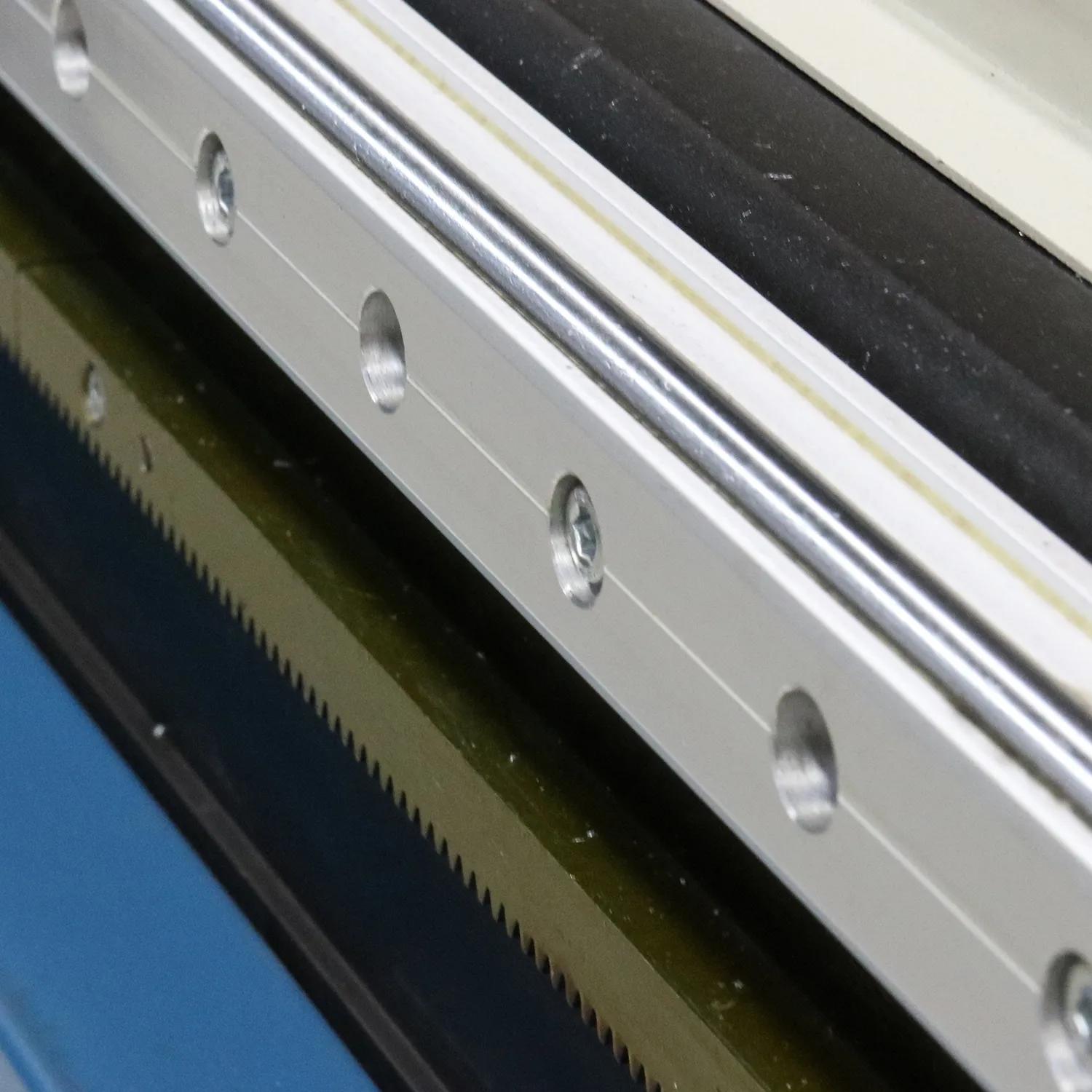

Ground, hardened, and polished square rails combined with linear orbital bearings add impressive strength to the machine
Integrated water table helps control smoke and dust created while cutting to help keep your shop clean
More Information
Stock NumberBA9-1225308
Approx. Pressure (Tons)Depends on Plasma System Chosen
DriveStepper Motor
Input Power220V / 1-phase
Model NumberPT-48AH-W
Prop 65Cancer and Reproductive Harm
Shipping Dimensions (L x W x H) (In.)142" x 90.5” x 52”
SoftwareBobCAD-Cam Express software included
Table Dimensions (In.)67" x 120" (1702 x 3048mm)
Table Height (In.)19.6” (500mm)
Warranty1 Year
Z-Axis Travel (In.)3.4” (86mm)
Gross Weight2250.0
Machine Weight (lbs.)3021lbs. (1370kg)
