Semi-Automatic Band Saw - BS-330SA
Call 920-684-4990 for availability
Stock Number:
BA9-1001521
$19,999.00
Enhanced Bullet 1:
220V 3-phase power
Enhanced Bullet 2:
13" round capacity at 90°
Enhanced Bullet 3:
Head miters 45°
Enhanced Bullet 4:
1.25" blade width
 | Click here to explore affordable leasing options today! |
Product Overview
This horizontal band saw has an impressive track record: 10+ years of dependable use. The BS-330SA will improve your efficiency with a hydraulic vise, downfeed, and bow return.
Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.
3 hp motor runs on 220-volt three-phase power with a maximum capacity of 13” OD round at 90°

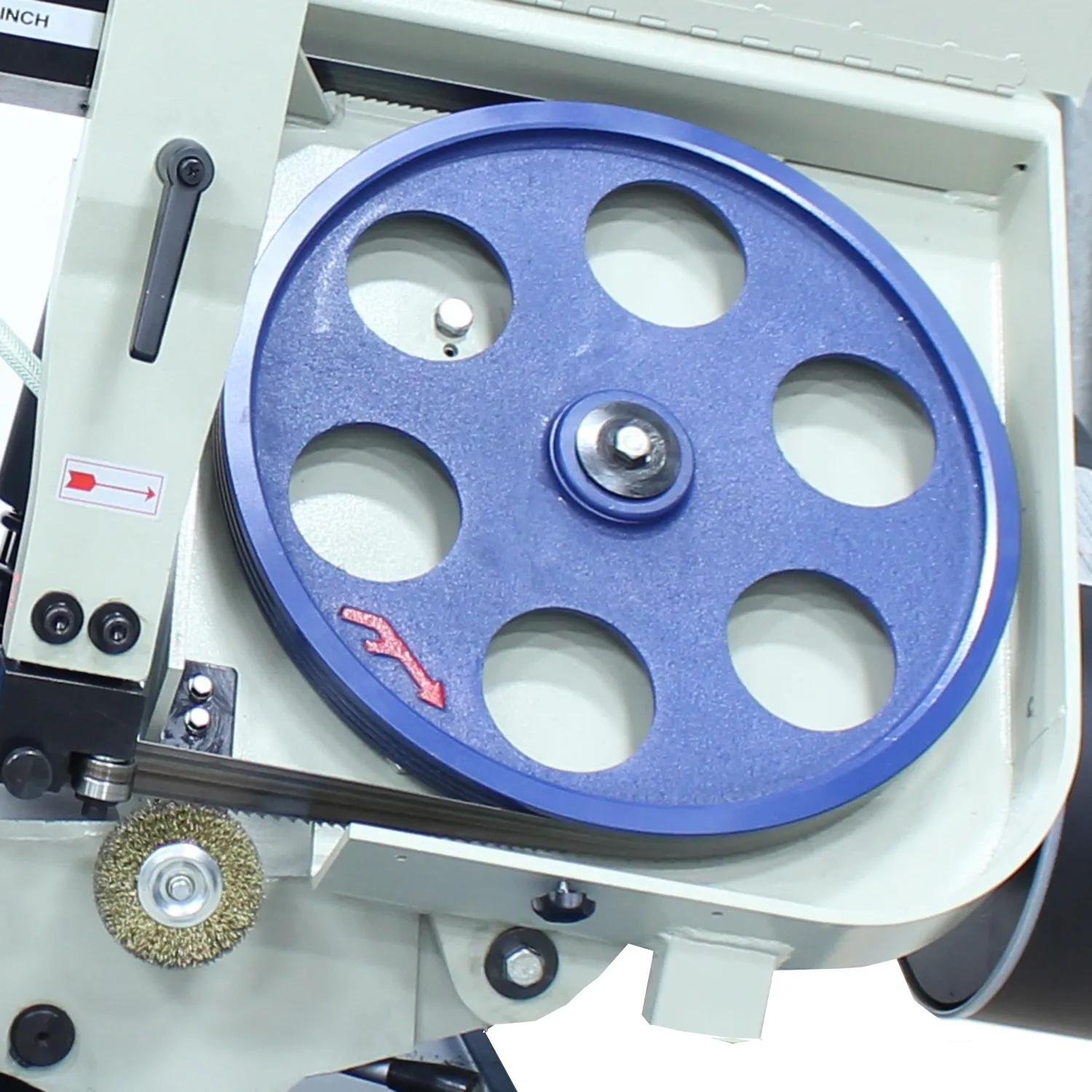

Accepts a 1.25” blade, a large size for greater accuracy and speed
Variable blade speed ranges from 82 to 270 fpm with a laser pointer guide that lets you see where the cut will be, for more accurate work

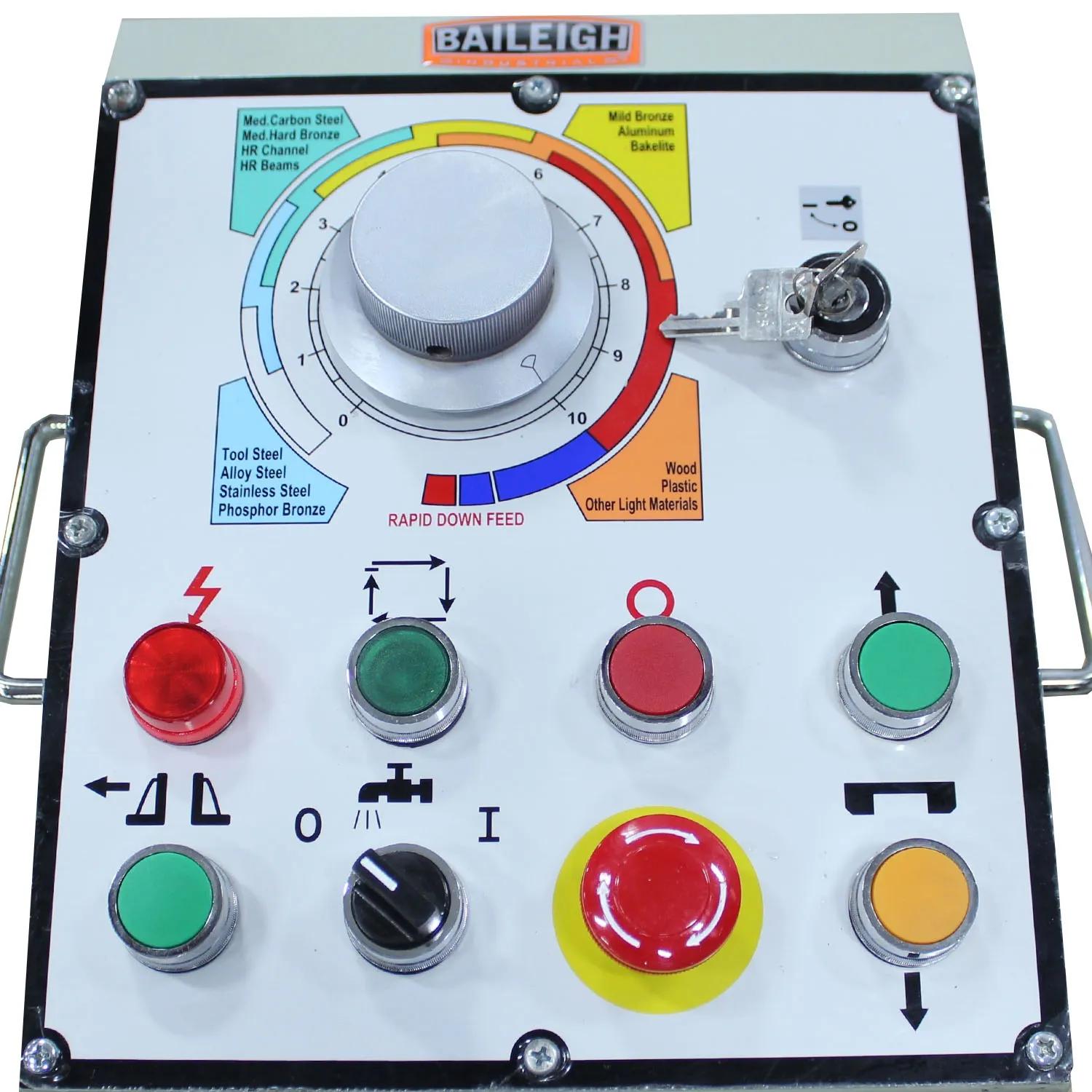

You can adjust the dial to set the speed at the perfect fpm for your material
Gear-driven transmission makes the machine more reliable. No belts to break and replace

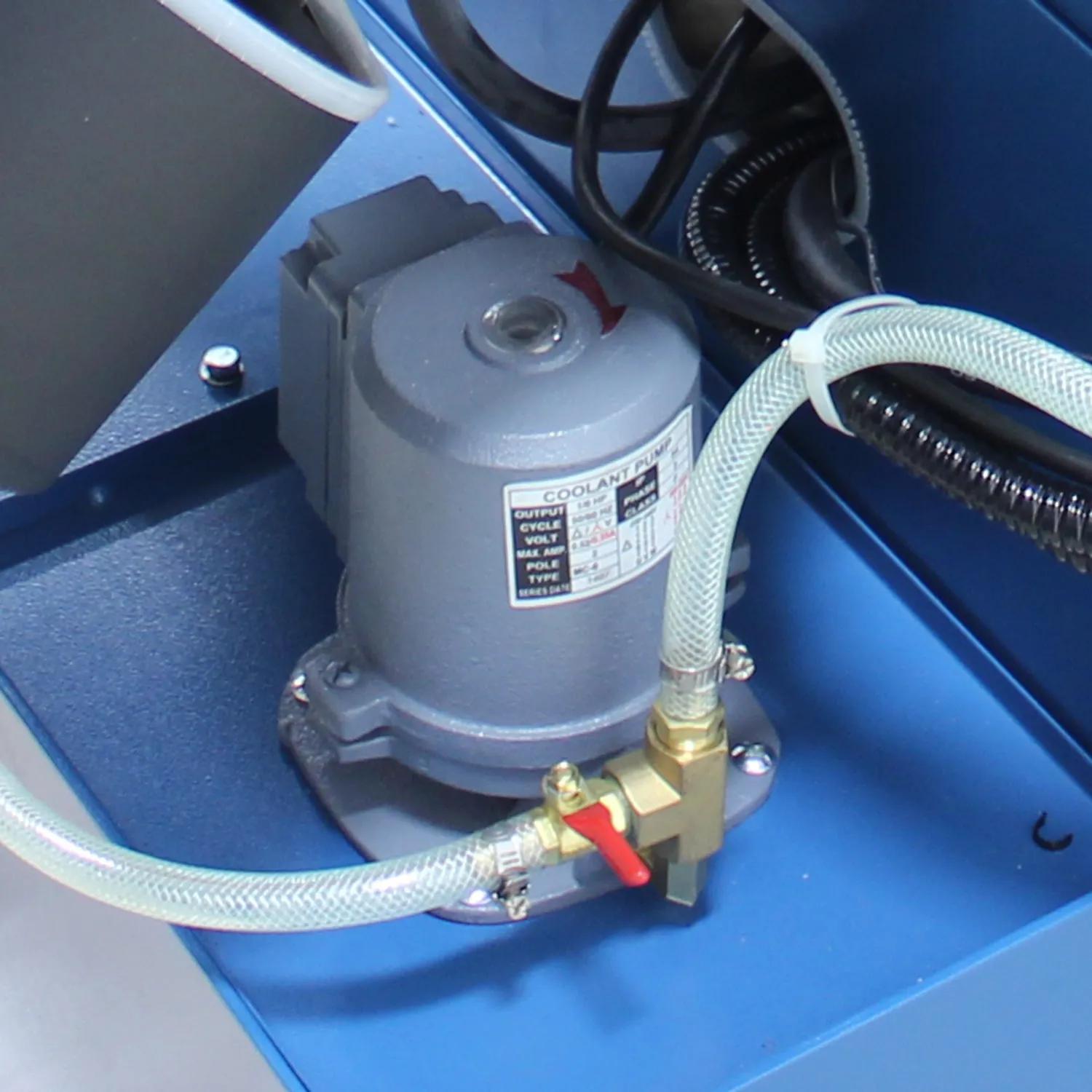

Saw head miters up to 45° with a large-capacity flood coolant system that washes away metal chips and helps blades last longer

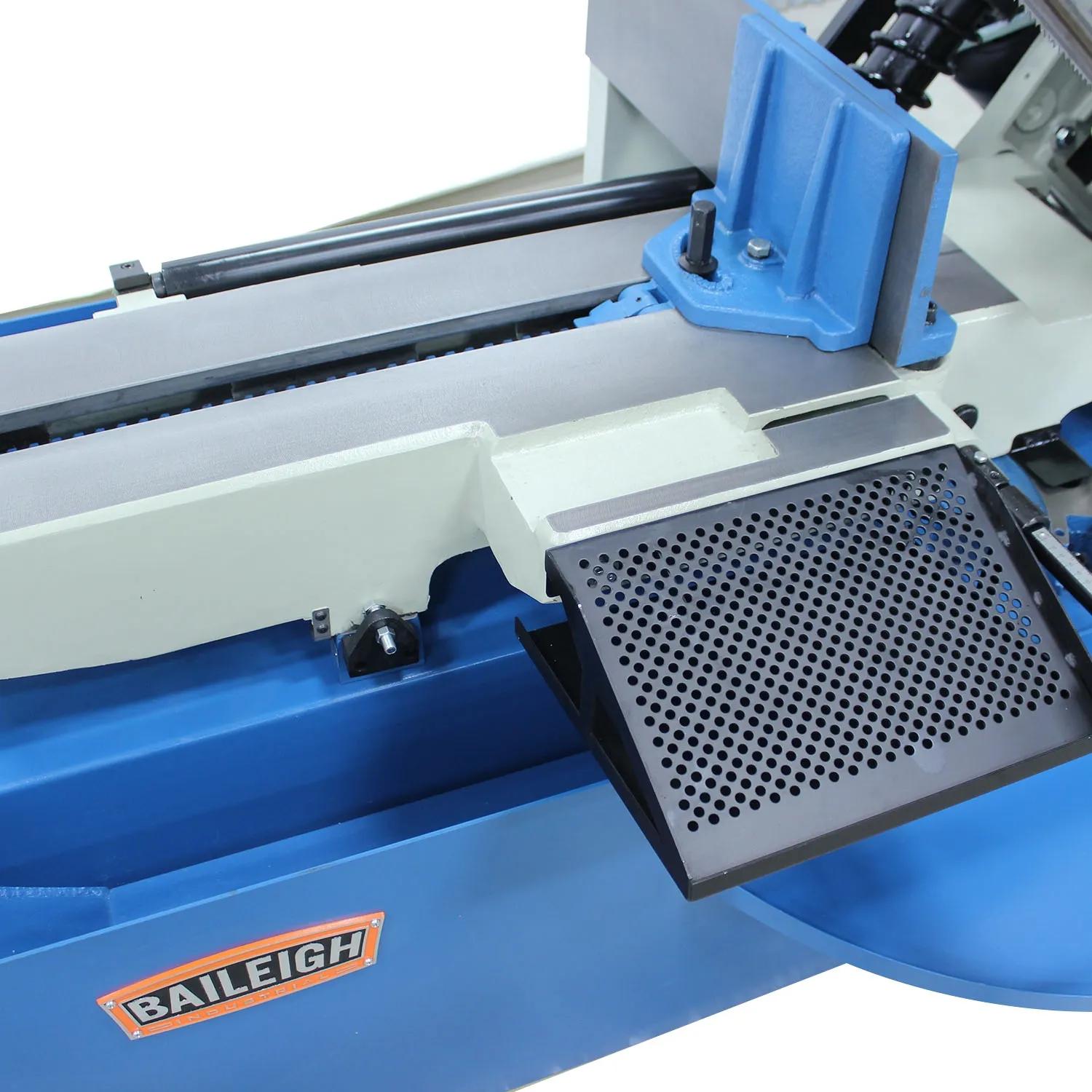

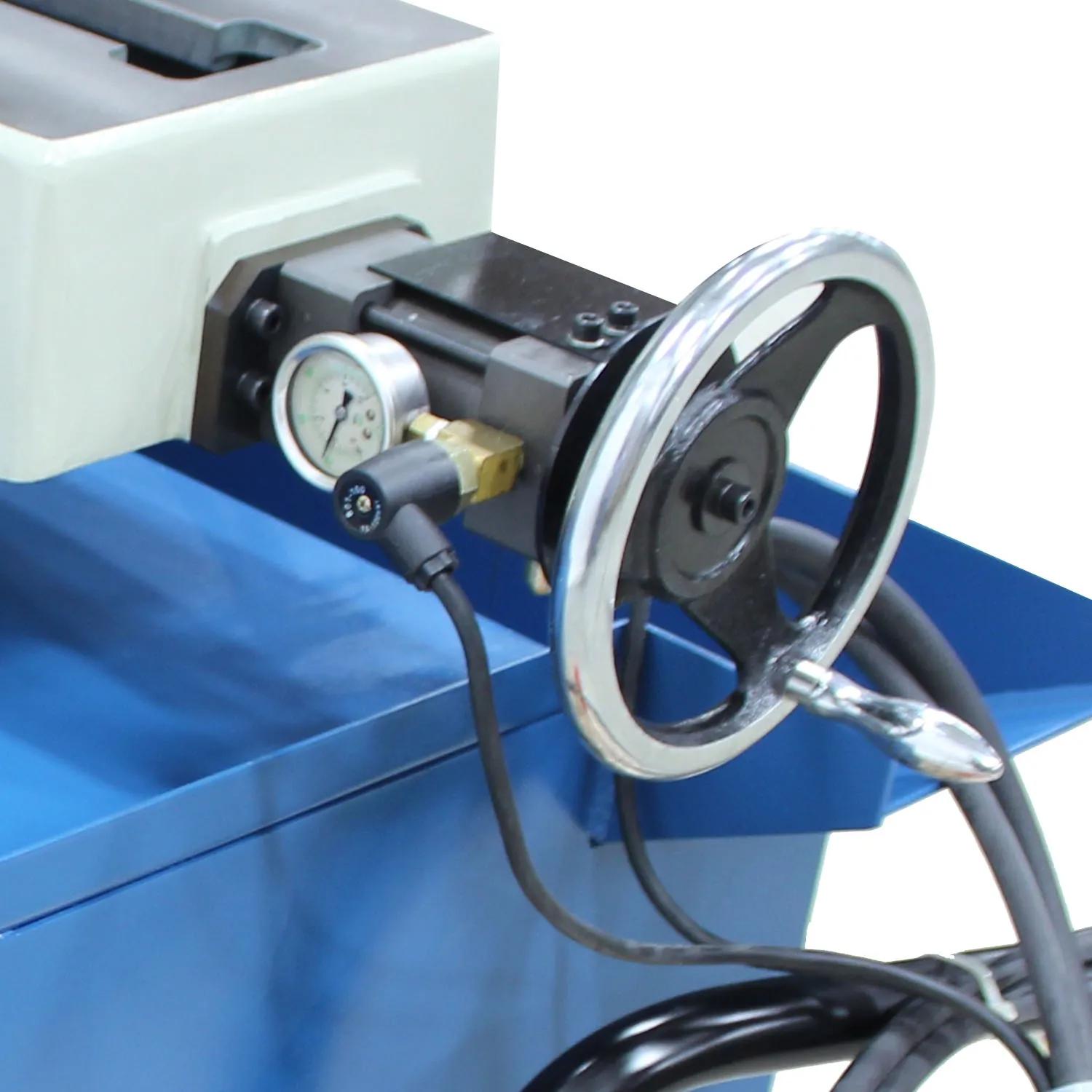

Industrial-grade hydraulic system clamps the vise, lowers the head, then raises the head back up after the cut is done
Electro-welded steel construction keeps the machine stable for more accurate cutting including a cast iron mitering head and bow which reduces vibrations when cutting
Tungsten carbide blade guides get as close as possible to the material to produce a clean, high-quality cut

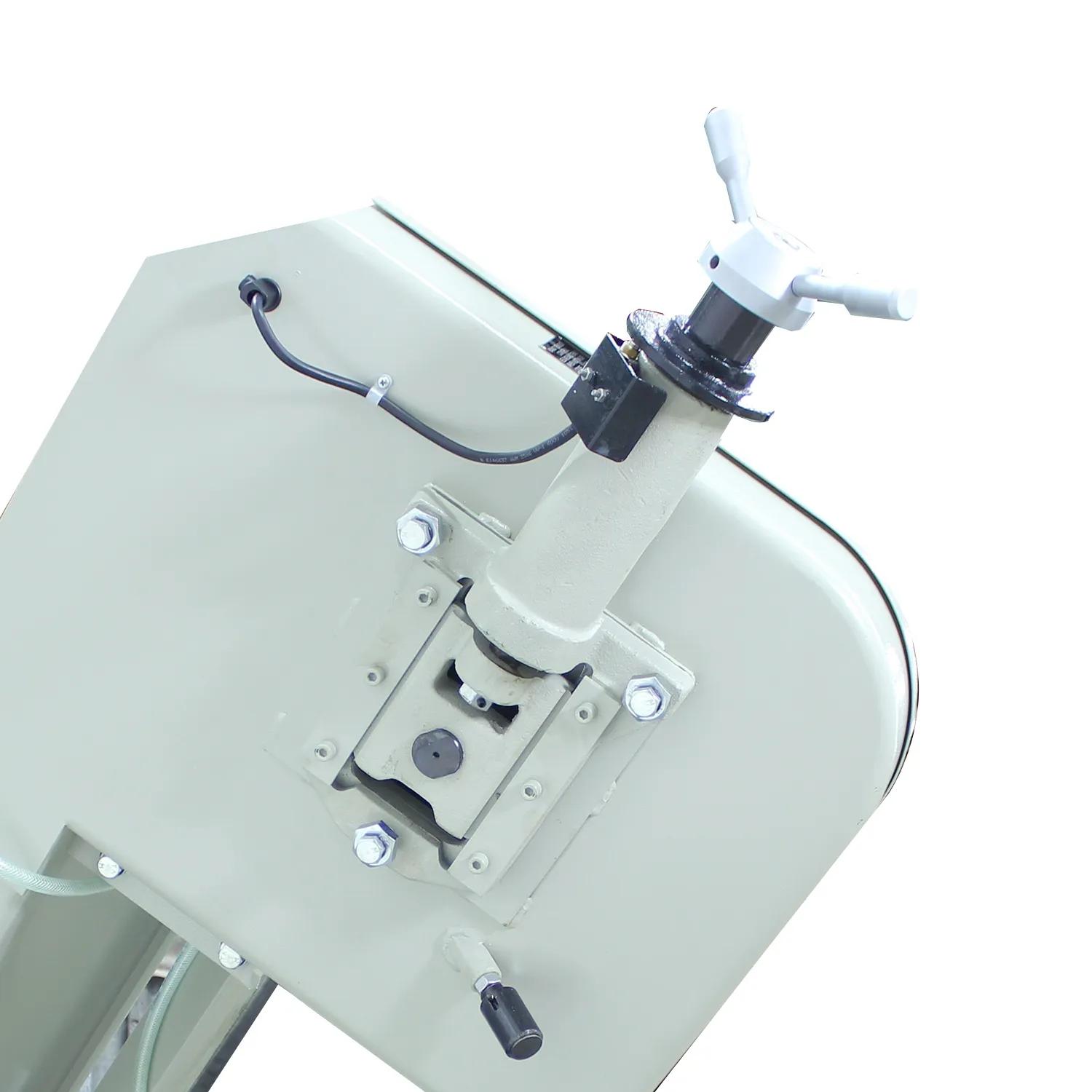

Patented blade tensioning gauge makes it simple to get the tension right. Simply adjust until the black arrow is lined up with the liquid-filled green area
| Stock Number | BA9-1001521 |
|---|---|
| Blade Guide | Carbide x Roller |
| Blade Speeds (SFPM) | 82 – 270 |
| Capacity Rectangular 90 X 45 X 45 | 13" x 18.9" x 11" x 10.04" |
| Capacity Round 90 X 45 | 13" x 8.86" |
| Capacity Square 90 X 45 | 13" x 8.86" |
| Descent Control | Pressure Assist Hydraulic |
| Drive | Belt x Pulley |
| Input Power | 220V / 3-phase |
| Type of Miter Adjustment | Swivel Head and Vise |
| Miter Angle Range (Deg.) | 0 – 45° |
| Model Number | BS-330SA |
| Motor (HP) | 3 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Return | Hydraulic |
| Shipping Dimensions (L x W x H) (In.) | 90x38x60 |
| Table Height (In.) | 30.5" |
| Warranty | 1 Year |
| Weight (Lbs.) | 1800 |
| Gross Weight | 1800.0 |
