Product Details

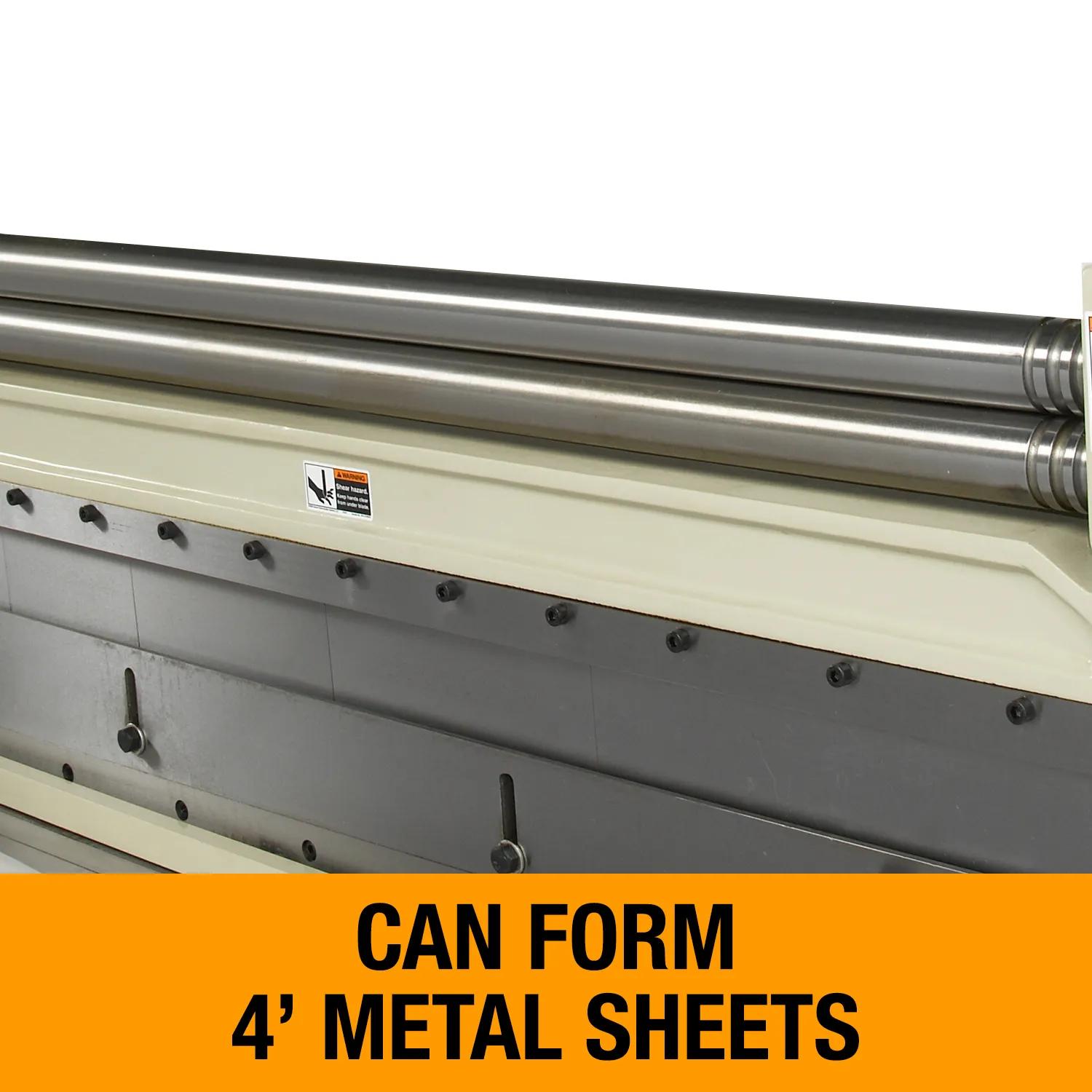

3-in-1 Sheet Metal Solution: The Baileigh SBR-5220 Shear, Brake & Roll combines a manual slip roll, manual press brake, and manual shear into one space-saving machine — perfect for small shops and maintenance or R&D work with standard 4′ wide metal sheets. Its heavy steel frame maintains accuracy even at full capacity.

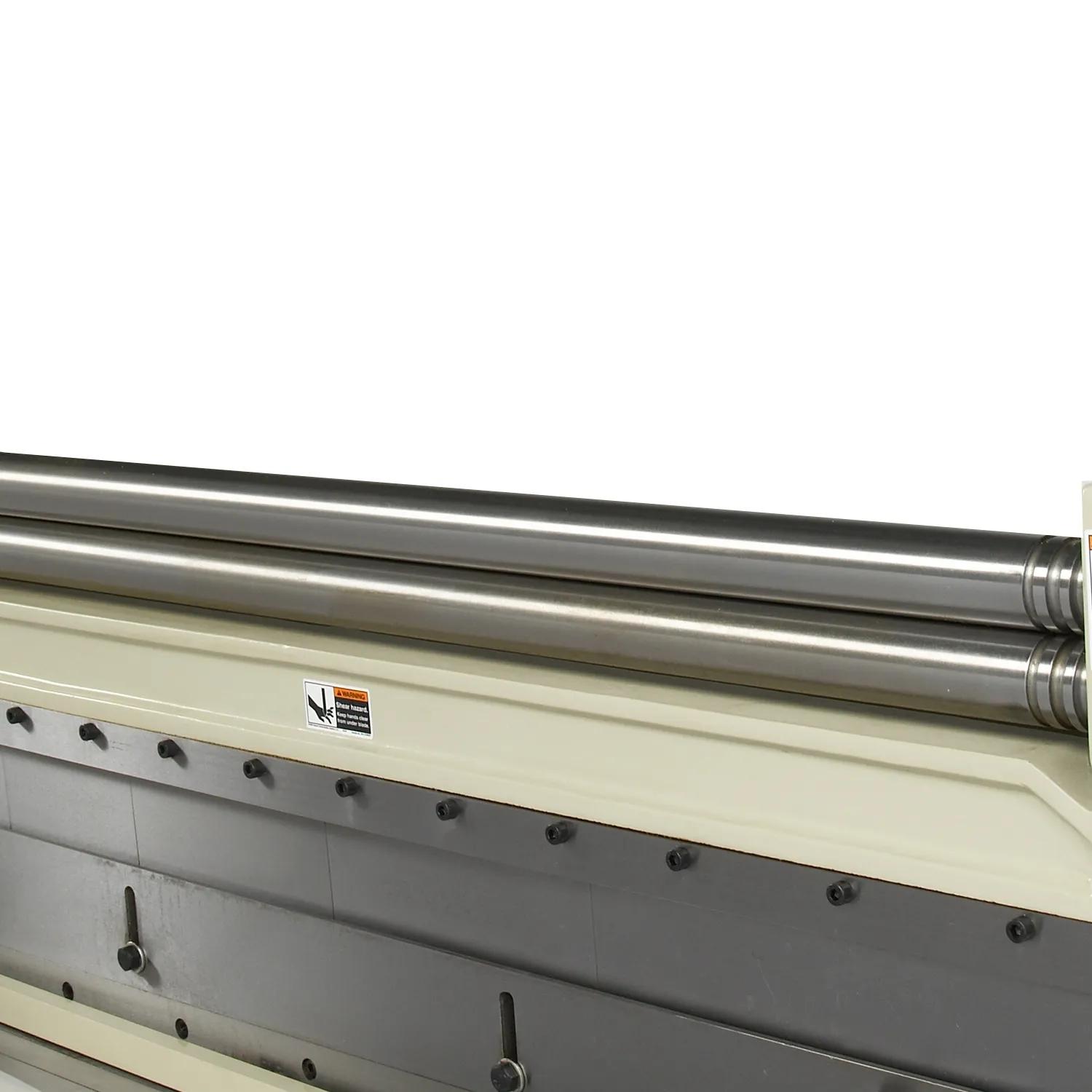

Wide Capacity & Easy Operation: Featuring a 52″ bed width and a maximum capacity for 20-gauge mild steel and 16-gauge aluminum across all three functions, this machine bends, shears, and rolls with hardened tooling and removable fingers for box, channel, and flat bends. The slip roll section includes wire grooves and a 2″ minimum roll diameter for versatile forming.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Bed Width: 52″ working width.
- Capacity: 20-gauge mild steel, 16-gauge aluminum forming.
- Operation: Manual power for all functions.

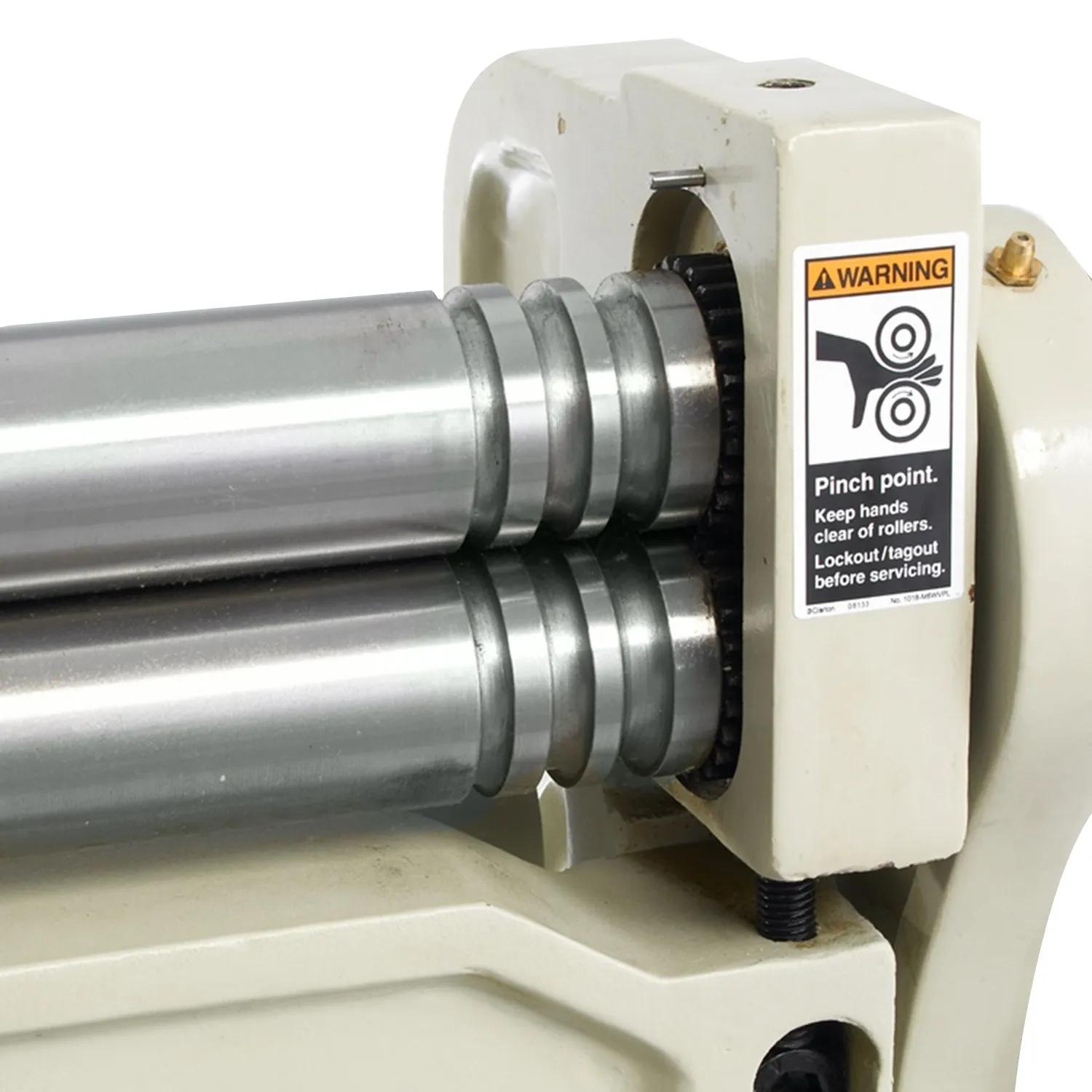

- Slip Roll: Manual slip roll with wire grooves and 2″ minimum diameter.

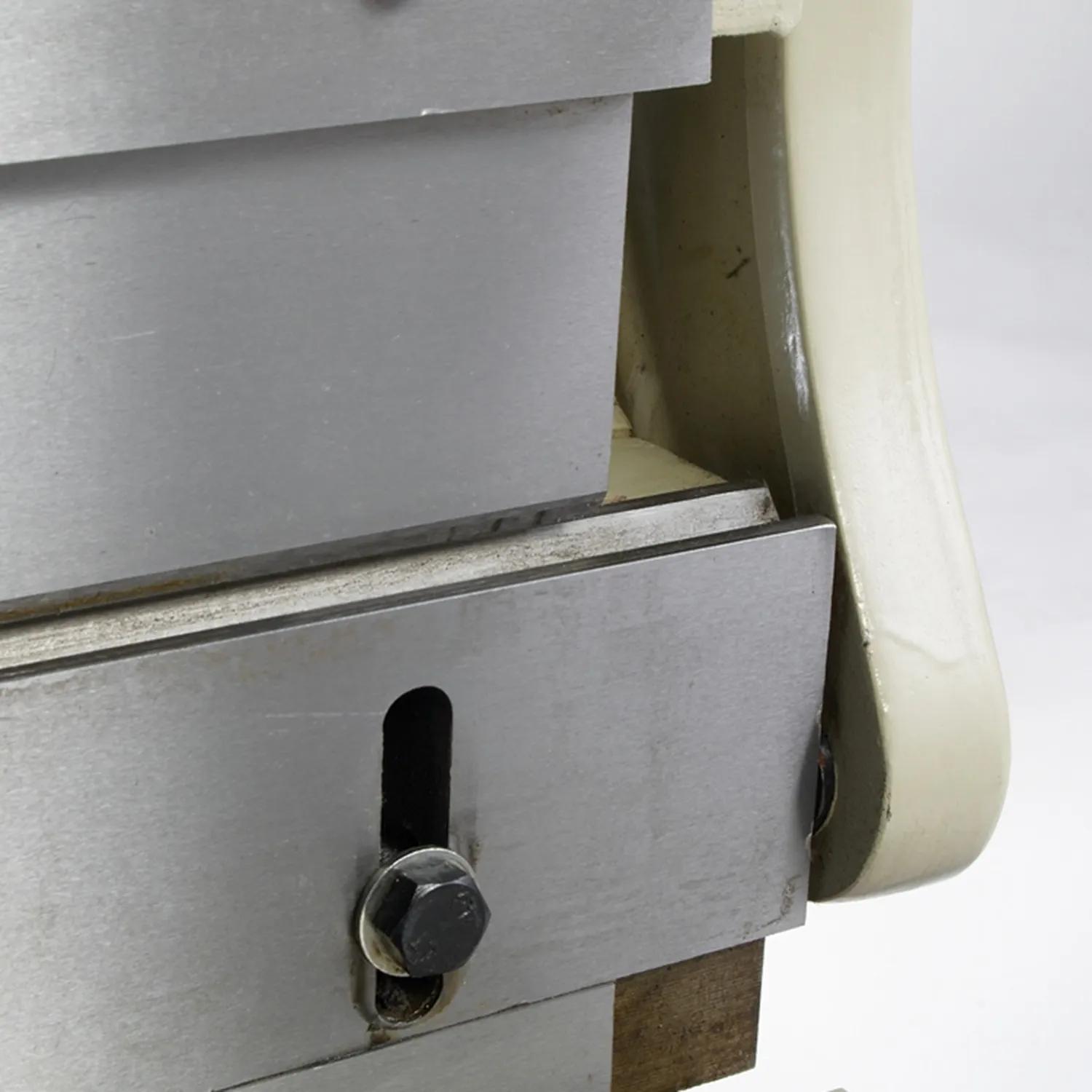

- Press Brake: Manual press brake with removable hardened finger dies.

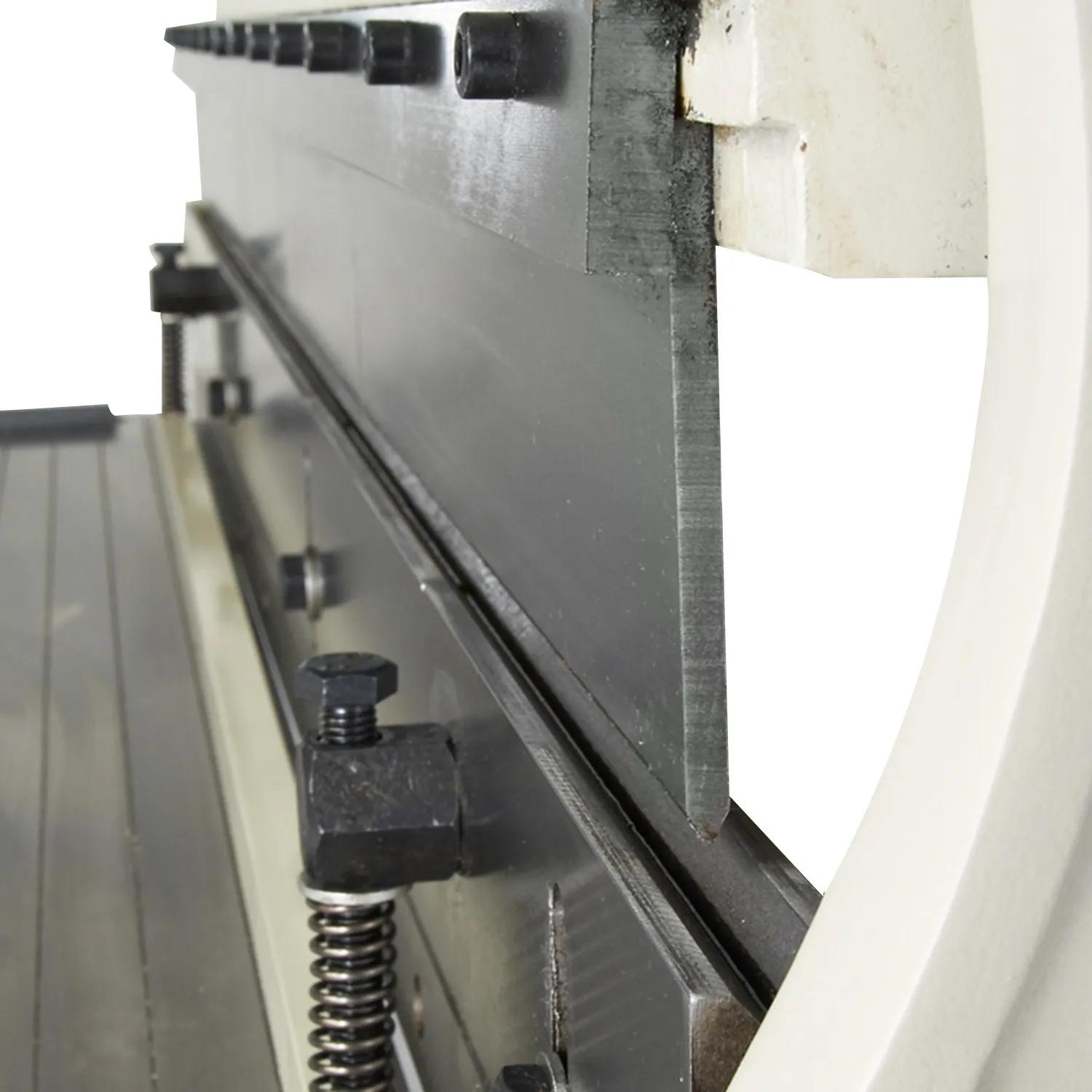

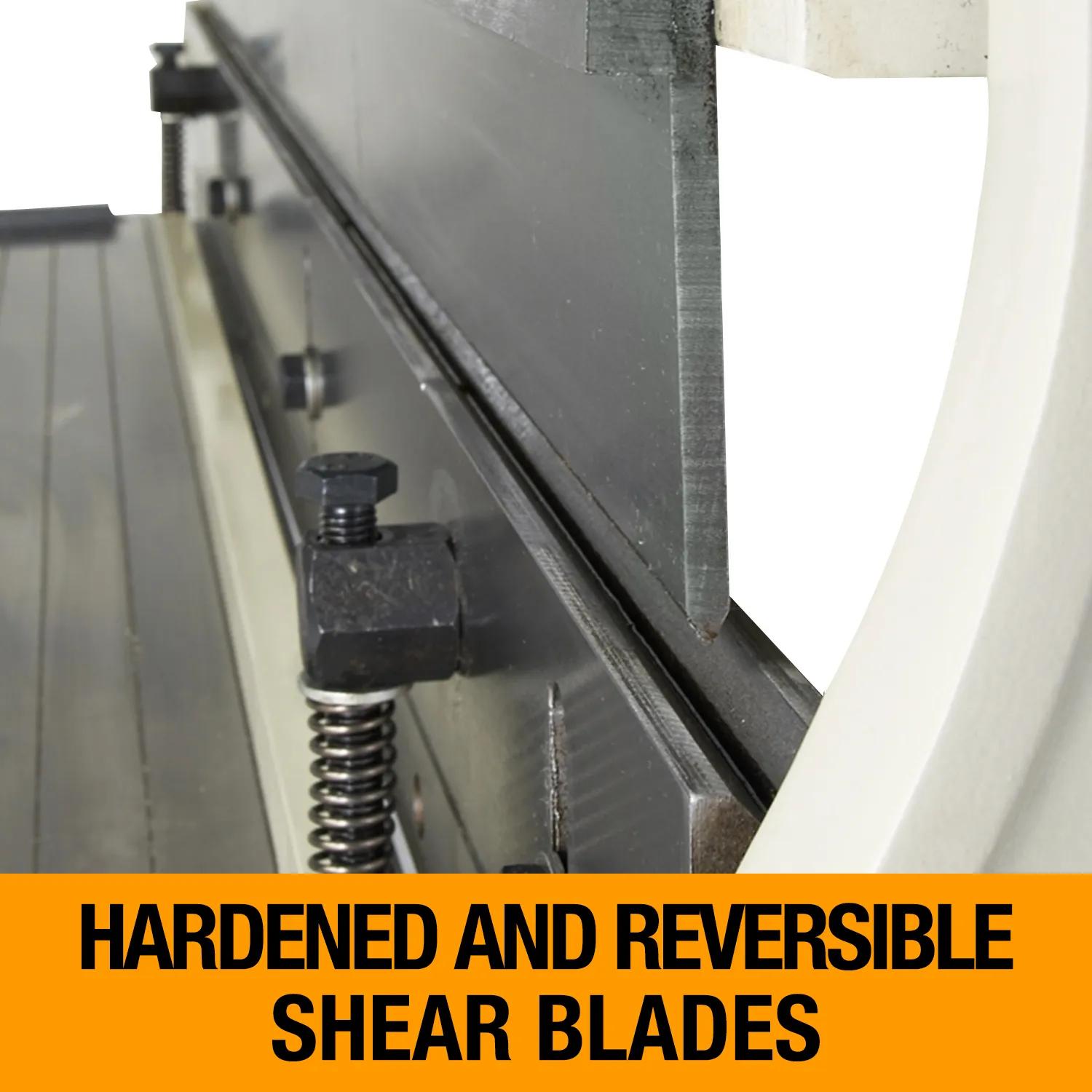

- Shear: Manual shear with hardened and reversible blades.

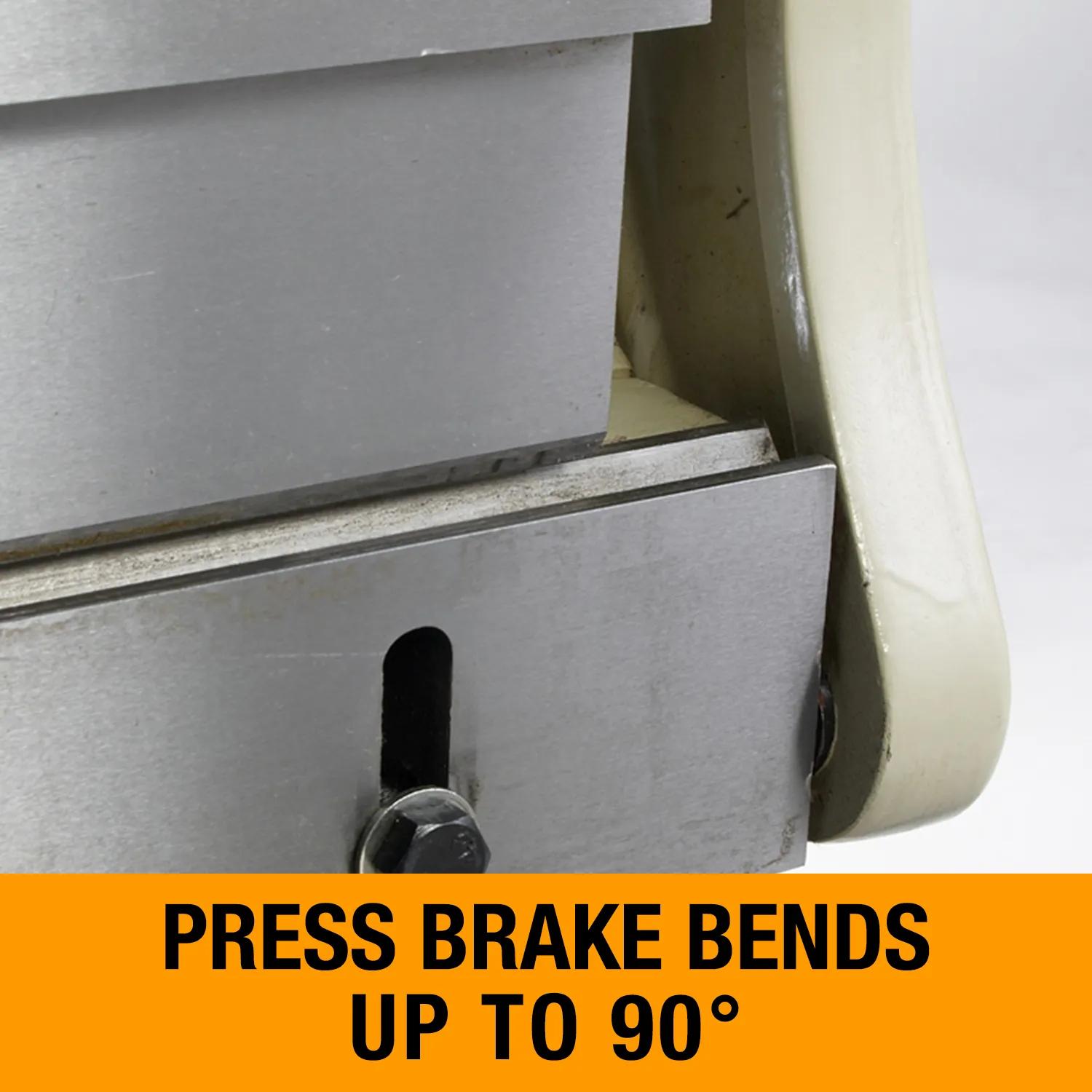

- Bending Angle: Up to 90° maximum bend.
- Back Gauge: Assists in consistent repeatable parts.

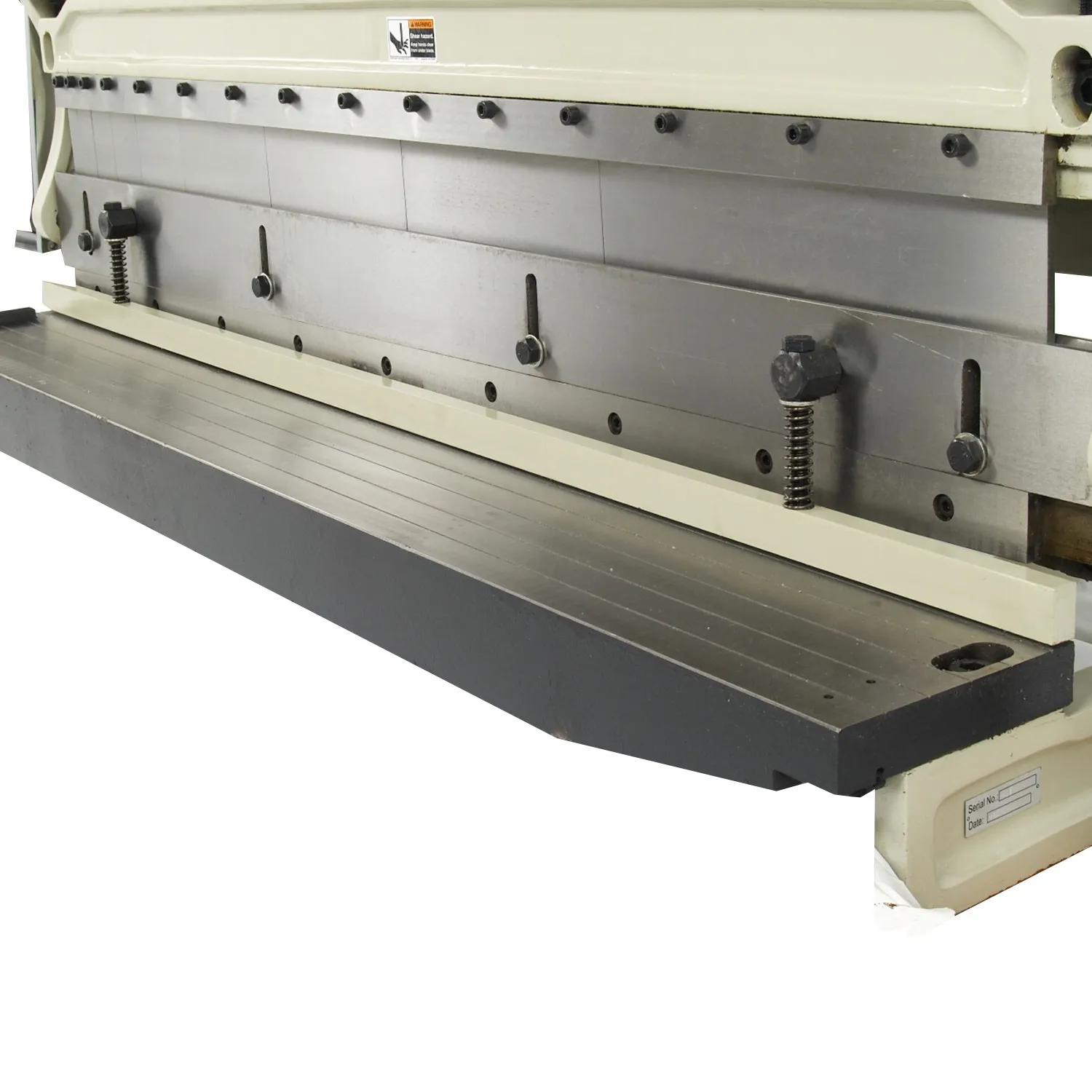

- Construction: Durable heavy steel frame.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1007002
- Bending Capacity - Length (Inch)52
- Gross Weight860.0
- Input PowerManual
- Maximum Bend Deg.135
- Mild Steel Capacity (Gauge)20
- Model NumberSBR-5220
- Net weight860.0
- Prop 65Cancer and Reproductive Harm
- Rolling Capacity20 ga. (.0396")
- Shear Capacity20 ga. (.0396")
- Warranty1 Year
