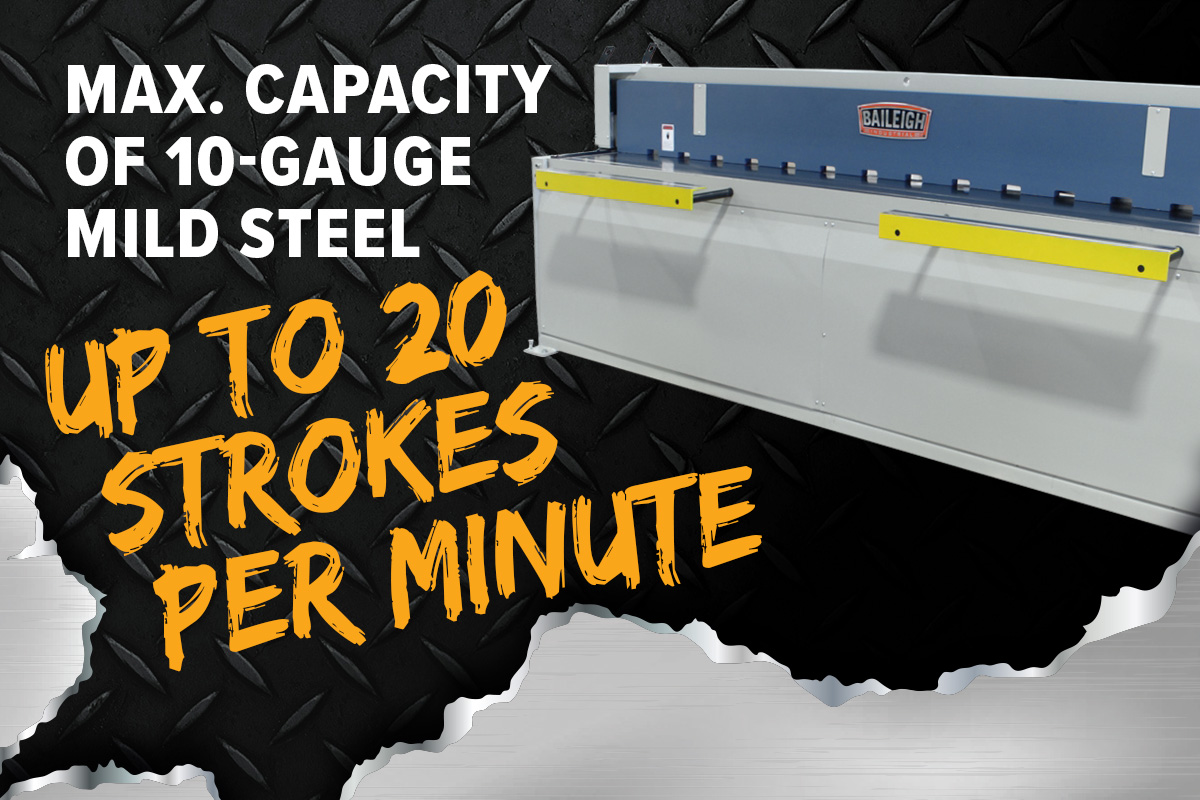

Sheet Metal Shear - (SH-12010)

Name: Sheet Metal Shear - (SH-12010)
SKU: BA9-1007063
Price: 29999 USD
Availability: InStock

Only 1 left

Stock Number:

BA9-1007063

$29,999.00

Enhanced Bullet 1: 120 " hydraulic shear

Enhanced Bullet 2: 10 gauge mild steel max. capacity

Enhanced Bullet 3: 7.5 hp 220-volt 3-phase motor

Enhanced Bullet 4: 20 strokes per minute

Skip to the end of the images gallery

Skip to the beginning of the images gallery

View Real Applications

Product Overview

Need to shear extremely long sheets of 10-gauge mild steel? Built with a steel plate frame for accuracy and dependability, this Hydraulic Shear will help you increase production.

Also available in 80”-long and 100”-long versions (both with 10-gauge capacity). We also offer an 120” Shear with a 14-gauge capacity.

Covered by a 1-year parts warranty. Includes lifetime technical support by phone. Questions? Not sure which Sheet Metal Shear is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.

+ Show More

Features

120” length

Up to 20 strokes per minute

7.5 hp motor runs on 220-volt 3-phase power

10-gauge mild steel maximum capacity with a minimum capacity of 24-gauge mild steel. Adjustable 24” back gauge ensures repeatability

Powerful industrial-grade hydraulics produce smooth movements that prolong blade life

Front support arms and table guides keep the material square to the blade

3 modes on the operator console: Inch mode - Jog the control and ease the blade down to the material, Single mode - Make one cut cycle per foot pedal push, and Auto mode - Continue cycling as you hold the pedal down

Comes standard with high carbon chromium blades. Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money

Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life

Fully welded steel construction helps prevent flex and maintain accuracy for many years

Specifications

More Information
Stock Number	BA9-1007063
Back Gauge Capacity (In.)	24"
Front Gauge Capacity (In.)	24
Model Number	SH-12010
Prop 65	Cancer and Reproductive Harm
Shearing Length Capacity (In.)	120"
Style (Type)	Sheet Metal Shear
Warranty	1 Year
Weight (Lbs.)	6600
Gross Weight	6600.0
Mild Steel Capacity (Gauge)	10
