Three Phase Heavy Duty Hydraulic Shear - (SH-120500-HD)
Stock Number:
BA9-1007085
$79,989.00
Enhanced Bullet 1:
120 " length
Enhanced Bullet 2:
0.50" mild steel capacity
Enhanced Bullet 3:
220V 3-phase power
Enhanced Bullet 4:
Adjustable blade gap and rake angle
Product Overview

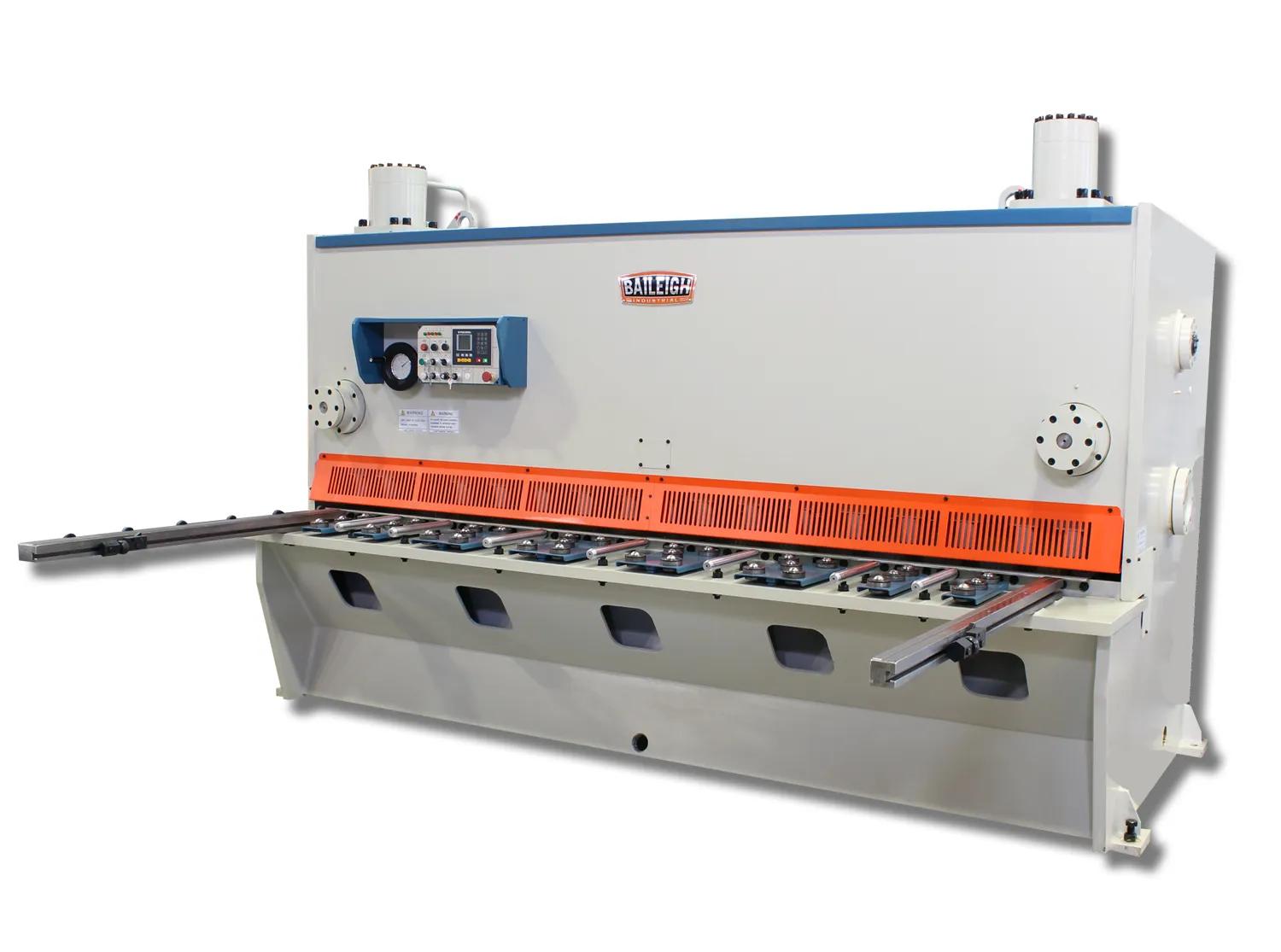

Weighing over 23,000 lbs. with a massive steel frame, this Hydraulic Shear will perform day in and day out for years. The NC controller lets you easily program the backgauge.
Also available in a 96” model with ¼” maximum capacity and 120” model with ¼” maximum capacity.
You can add an optional sheet support system to this model at the time of order. Please call us for details.
Covered by a 1-year parts warranty. Includes lifetime technical support from our team of reps, all with hands-on metalworking experience. Questions? Not sure which is the best sheet metal shear for you? Call 1-920-684-4990 and talk to a knowledgeable Baileigh rep.
Maximum capacity of ½”-thick mild steel and produces 9 strokes per minute
20 hp motor runs on 220-volt 3-phase power with a 120” length for up to 10-foot sheets
Uses only the best components, like Schneider electrical parts, Rexroth hydraulics, and NOK seals from Japan
Hydraulics are in the front for simple fluid changes - Just lift the panels using the convenient handles

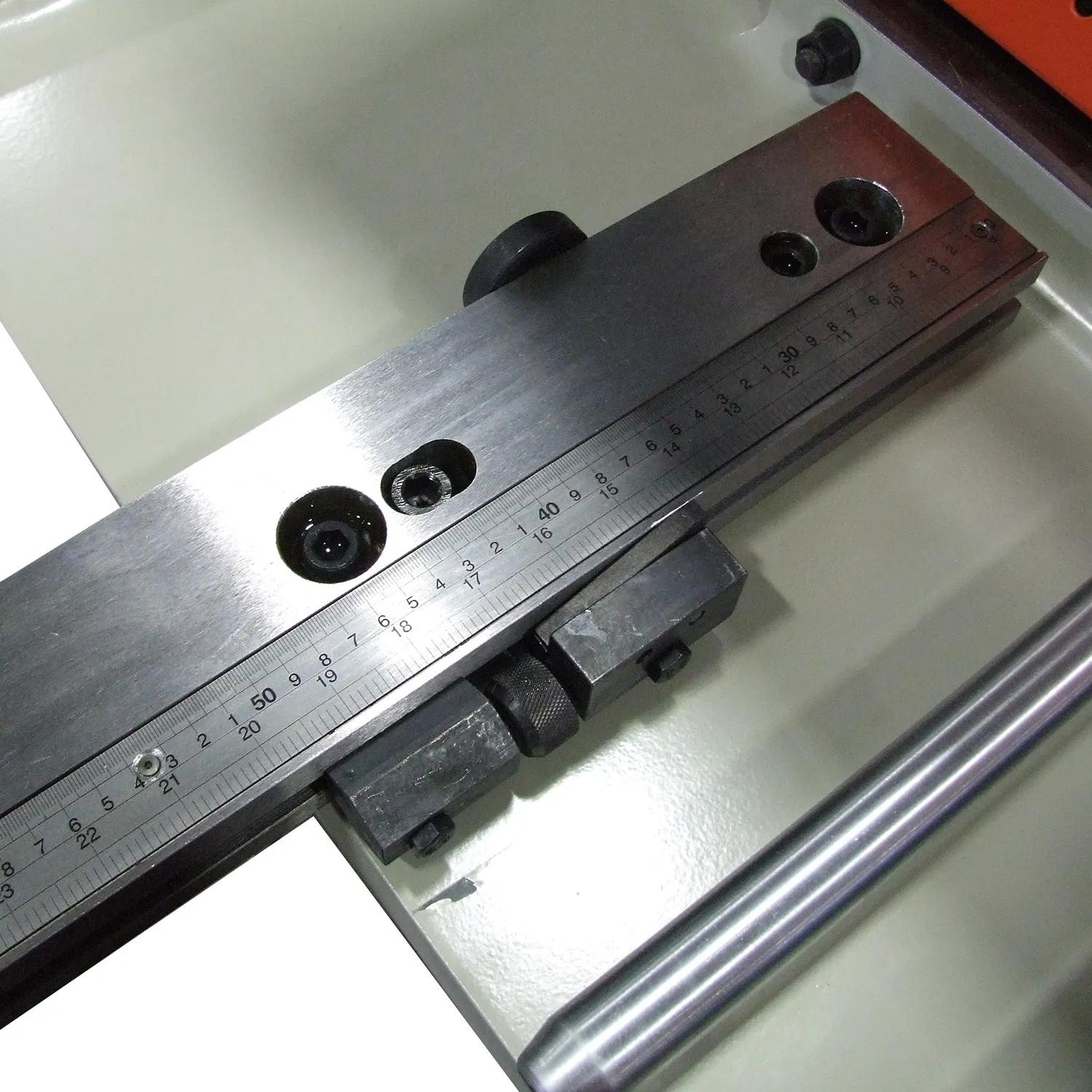

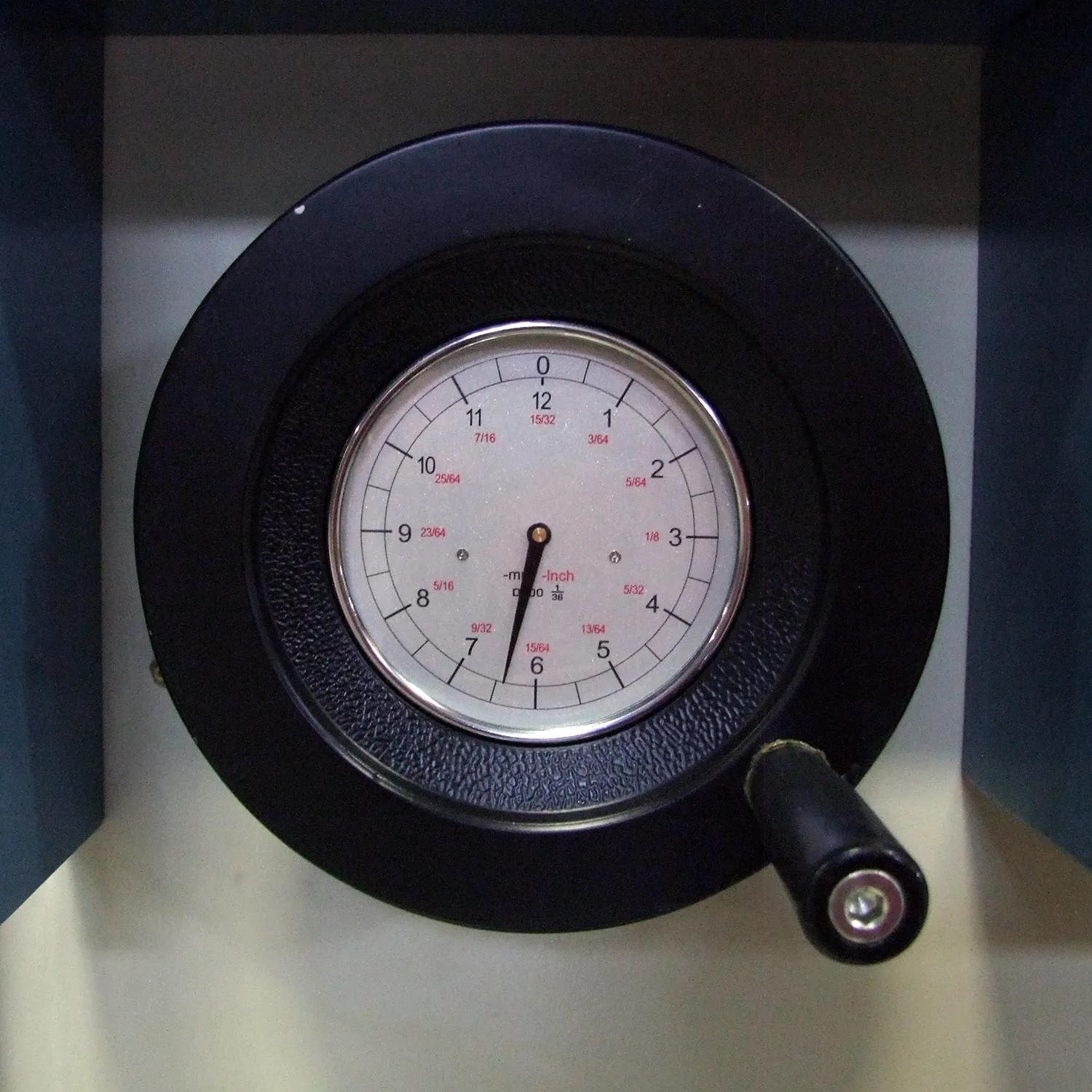

Squaring arms support the material and keep it square to the blade while the adjustable blade gap prevents crimping or folding - Just turn the handwheel

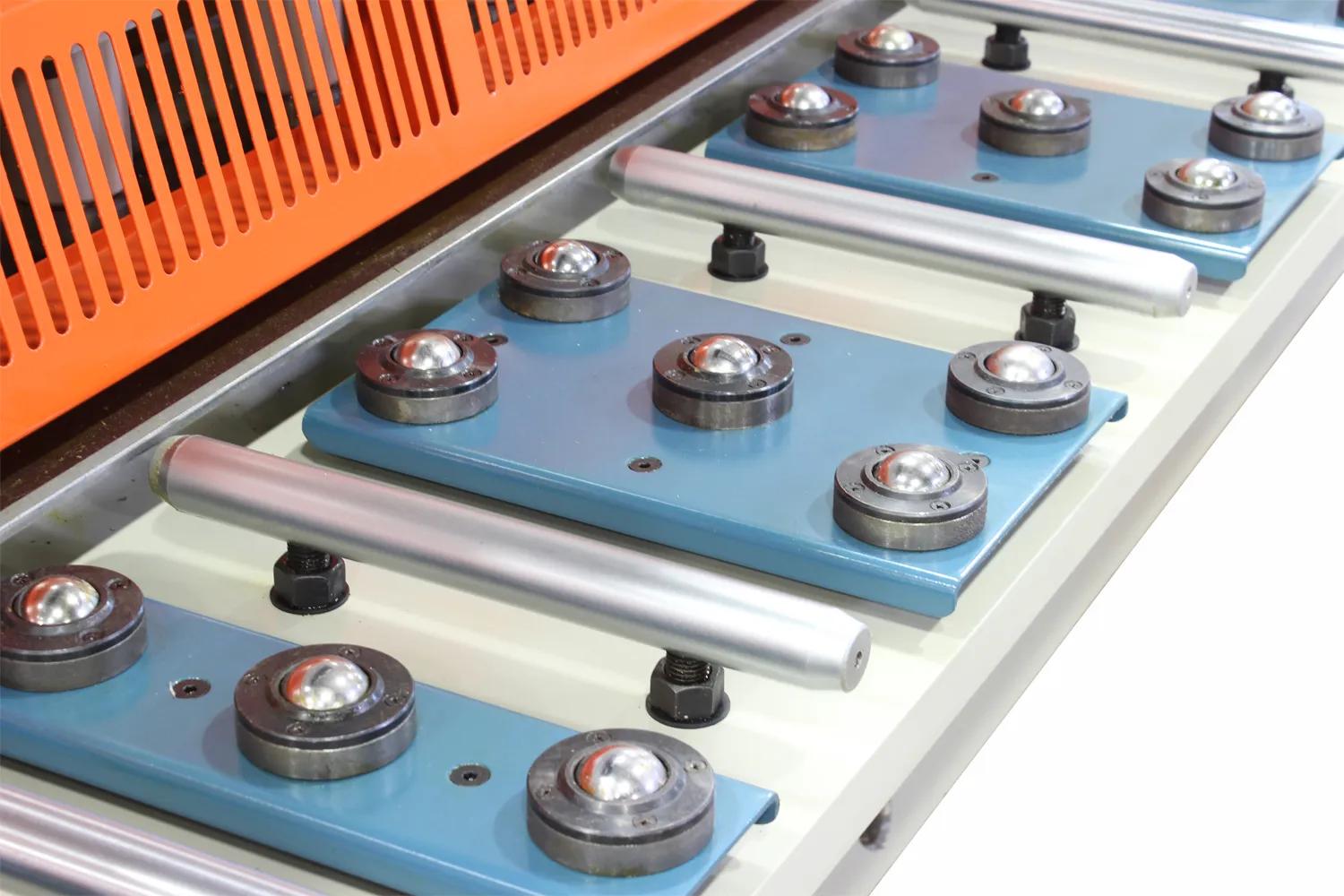

Roller infeed tables, mounted on the front, help you load heavy materials

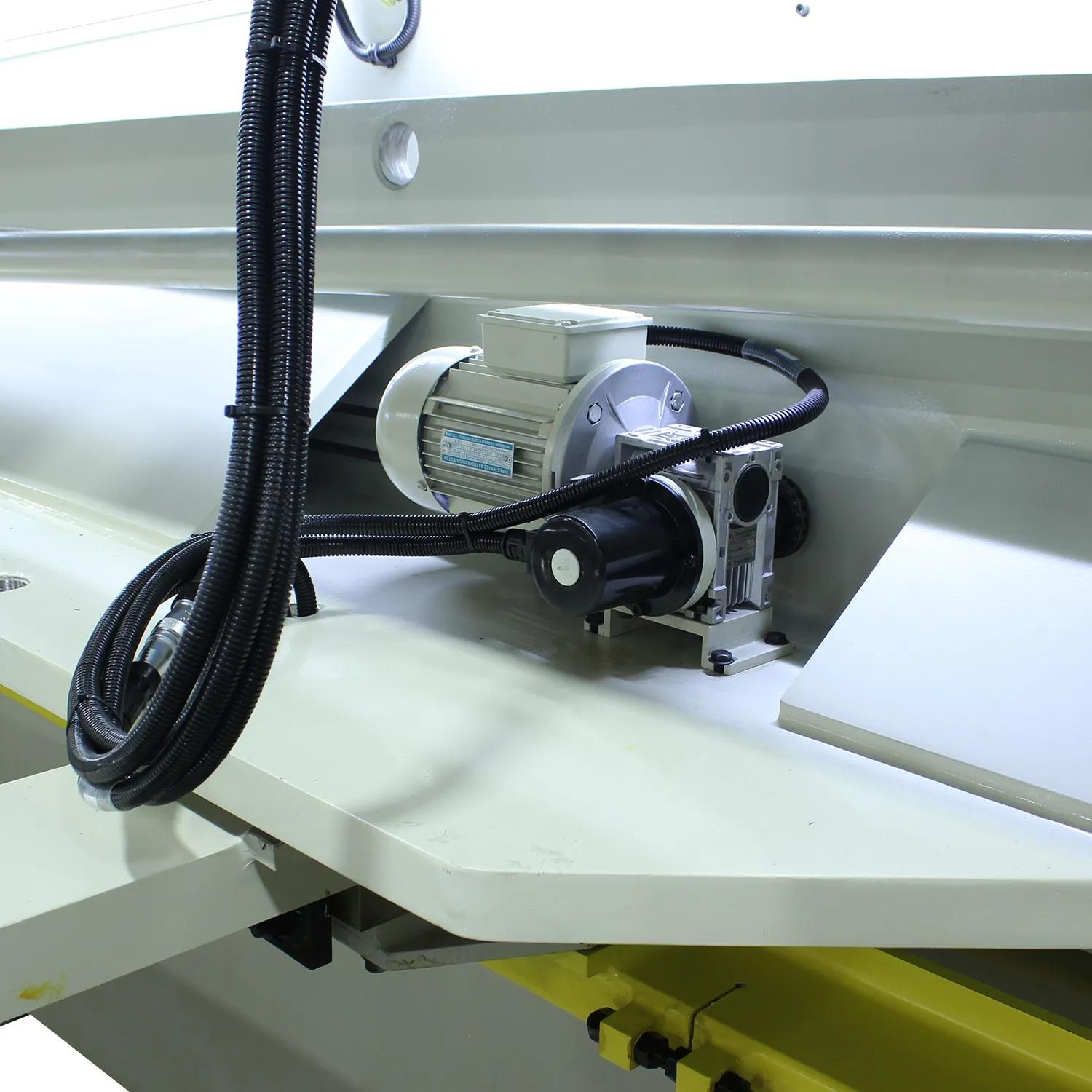

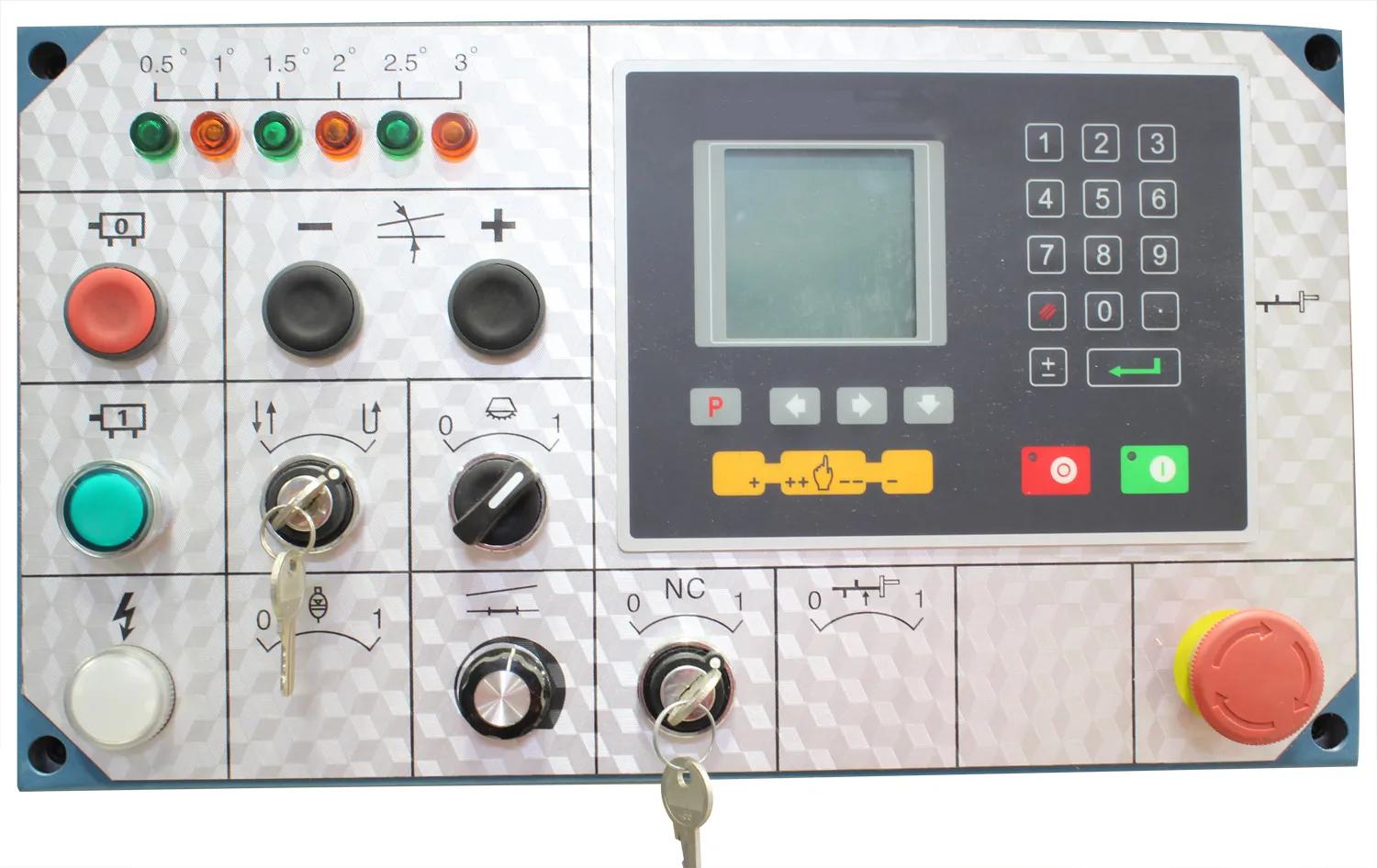

Fully programmable back gauge is accurate to =/- .01mm and internal memory can hold up to 100 programs

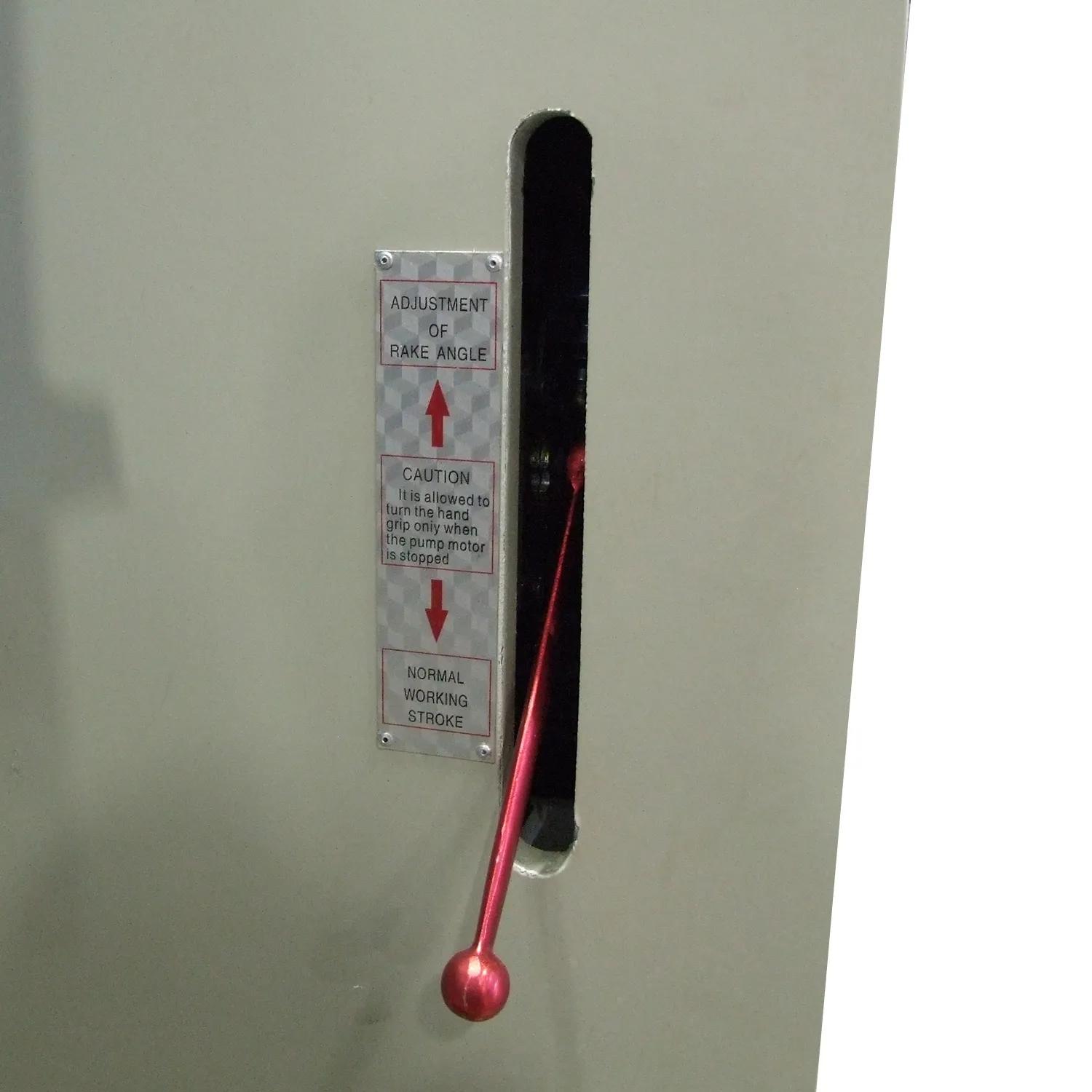

You can adjust the raked angle for your material thickness to minimize burr and reduce strain on the hydraulics - Press a button, then pull the lever until the light goes on
Comes standard with shadow line positioner for accurate material placement
Fully welded and integrated steel plate frame eliminates vibrations and stress on the cutting process
| Stock Number | BA9-1007085 |
|---|---|
| Input Power | 220V / 3-phase |
| Minimum Material Thickness (Gauge) | 18.0000 |
| Model Number | SH-120500-HD |
| Motor (HP) | 30 hp. |
| Prop 65 | Cancer and Reproductive Harm |
| Shearing Length Capacity (In.) | 120" |
| Sheet Capacity (Mild Steel) (In.) | .50" |
| Shipping Dimensions (L x W x H) (In.) | 158x88x100 & 69x46x9 |
| Speed Range (Stroke/min) | 9 |
| Squaring Arm Length | 48" (Can be used on right or left side, includes 4 bump stops) |
| Warranty | 1 Year |
| Weight (Lbs.) | 23750 |
| Gross Weight | 21000.0 |
| Net weight | 21000.0 |
