TN-400X3 - 3 Station Abrasive Tube Notcher

Name: TN-400X3 - 3 Station Abrasive Tube Notcher
SKU: BA9-1232708
Price: 4729 USD
Availability: OutOfStock

Call 920-684-4990 for availability

Stock Number:

BA9-1232708

$4,729.00

Skip to the end of the images gallery

TN-400X3 - 3 Station Abrasive Tube Notcher

Skip to the beginning of the images gallery

View Real Applications

Product Overview

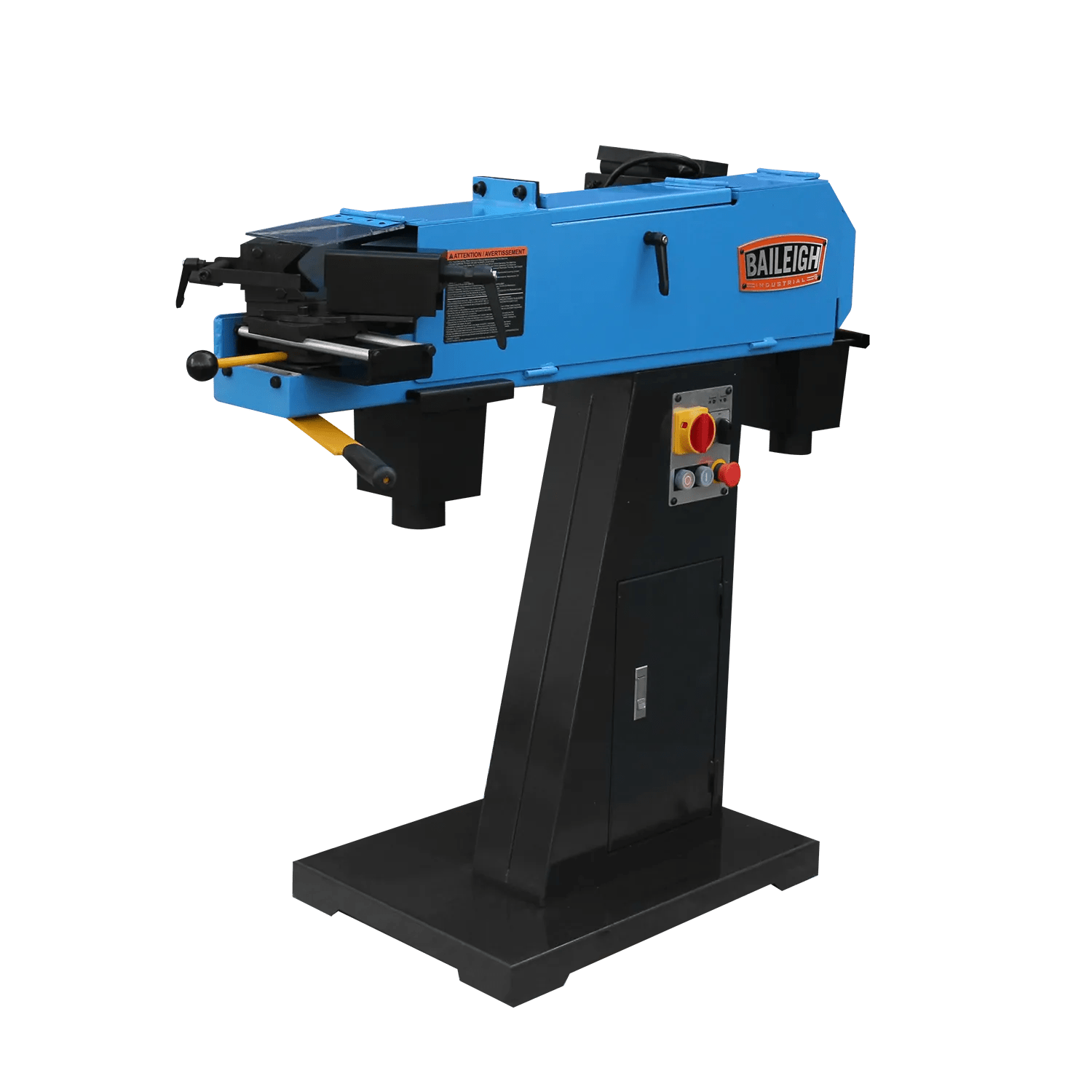

The Baileigh TN-400X3-3 Station Abrasive Tube Notcher is a powerful and versatile machine designed for quick and efficient notching of tubes and pipes. It features a 220-volt single-phase 4 hp motor and a forward and reverse switch for change of belt direction for standard grinding on the rear of the machine. The stand of the notcher has a convenient storage location for all mandrels/rollers, which includes seven rollers ranging from 1/2” to 2-1/2” that come standard with the machine. Additionally, it is designed for quick belt changes, which makes it easy to switch between different grits of the three replacement belts included (one each of 36G, 60G & 80G). Overall, the Baileigh TN-400X3-3 Station Abrasive Tube Notcher is a reliable and efficient tool for any metalworking shop.

+ Show More

Features

Three-station design provides quick and easy access to notching, grinding, and deburring at 3 different stations.

Requires only 220 volts of single-phase power.

Robust 4hp motor

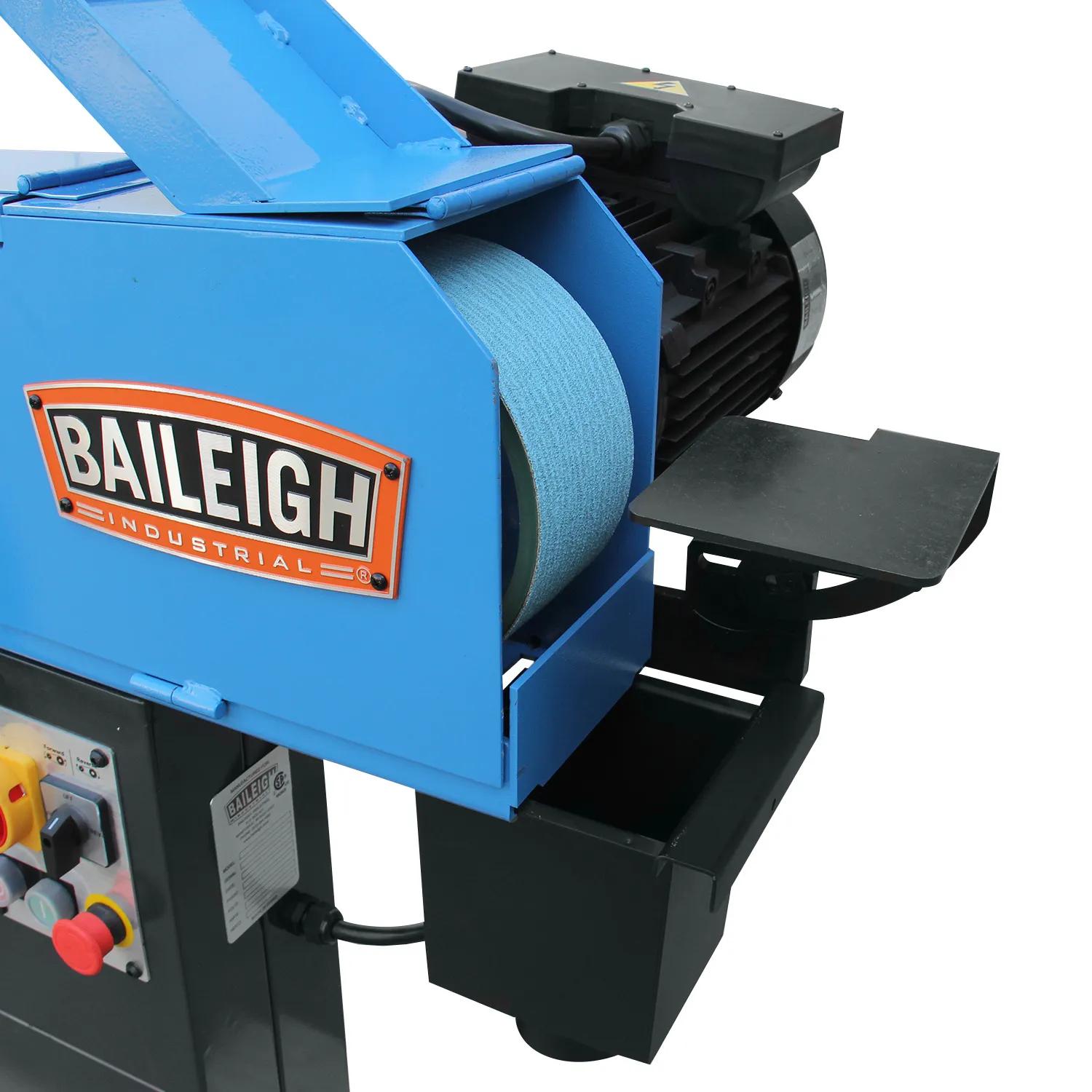

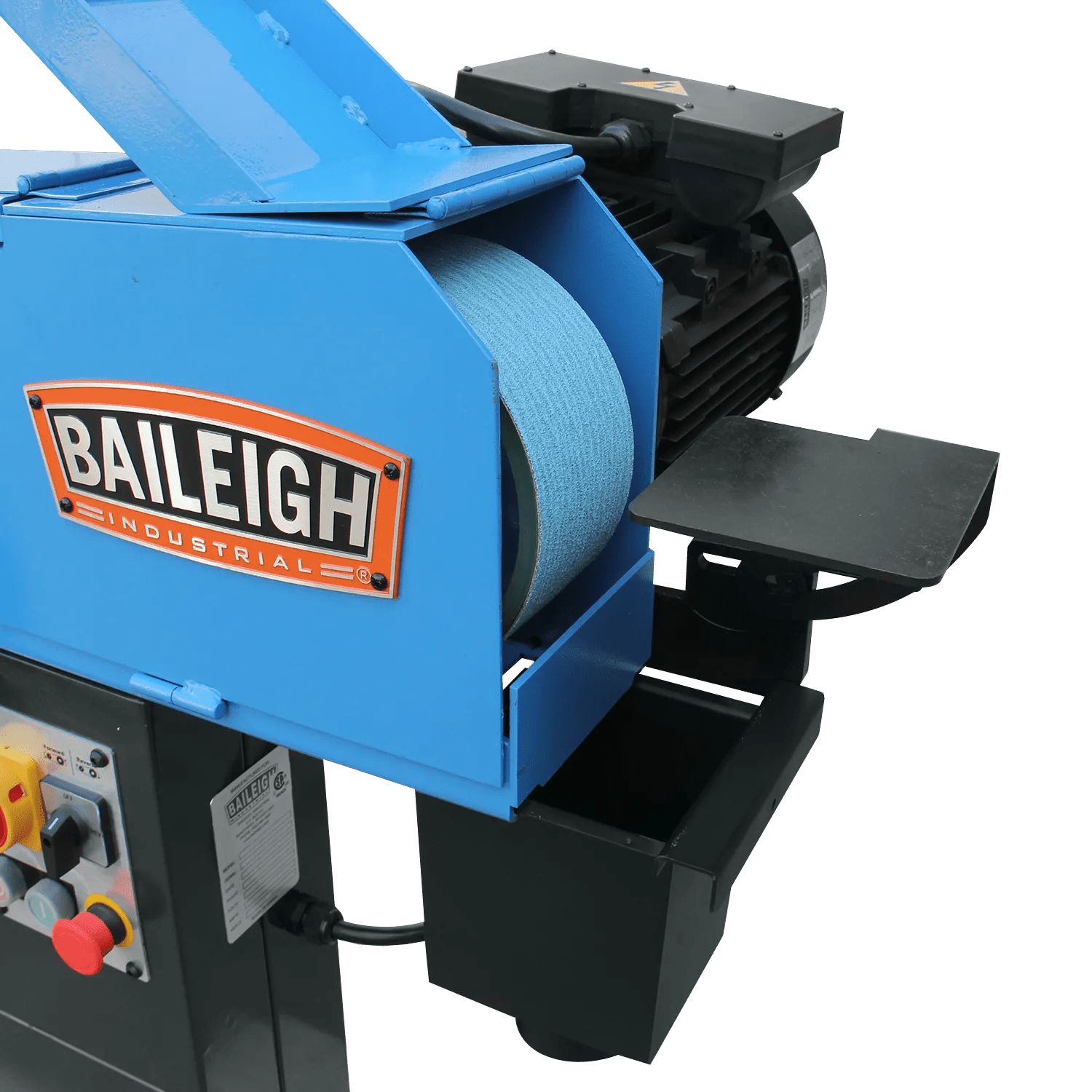

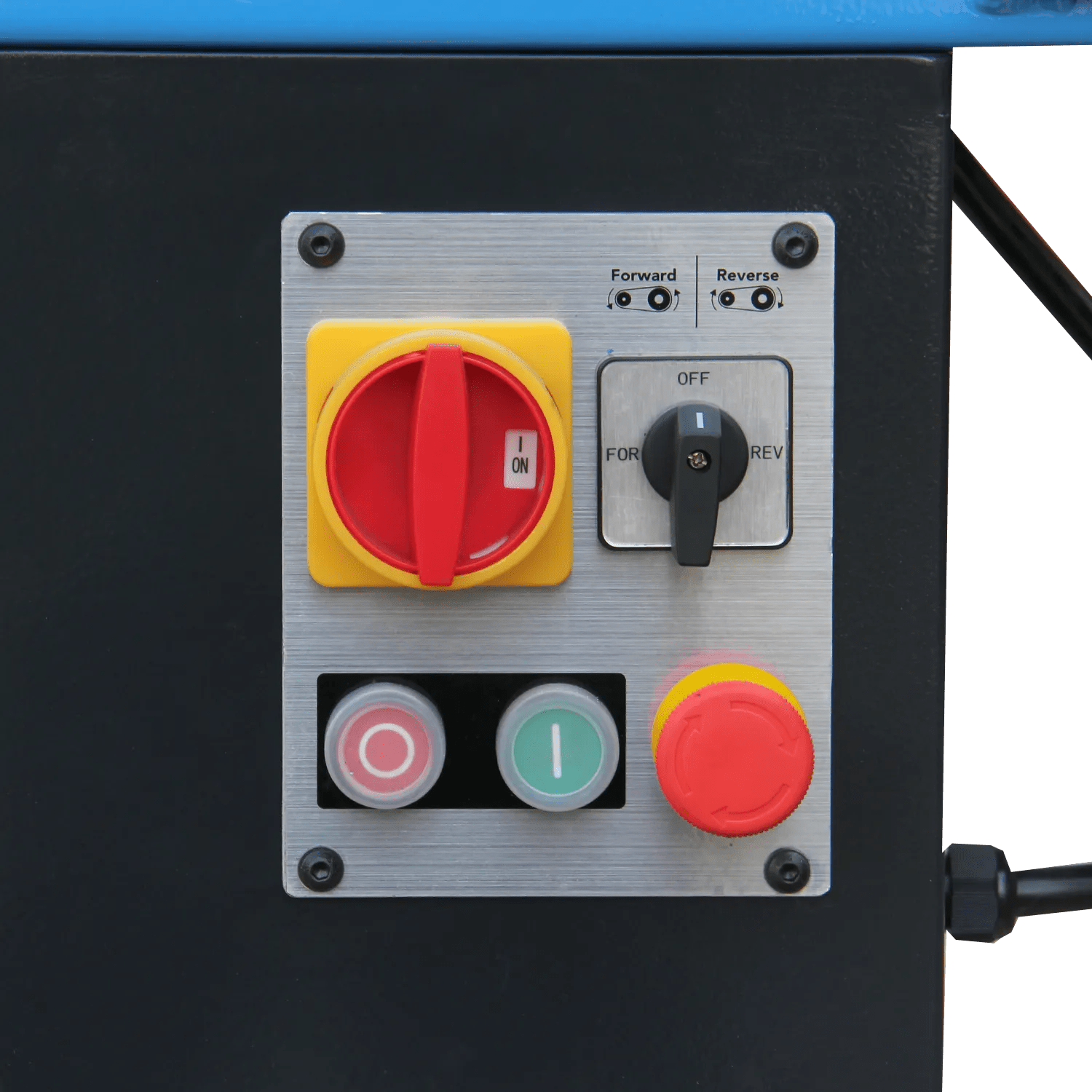

Forward and Reverse switch for change of belt direction for standard grinding on rear of machine

Notches up to 2-1/2” OD tubing at 60° with included mandrels.

Seven mandrels, 1/2” to 2-1/2” come standard.

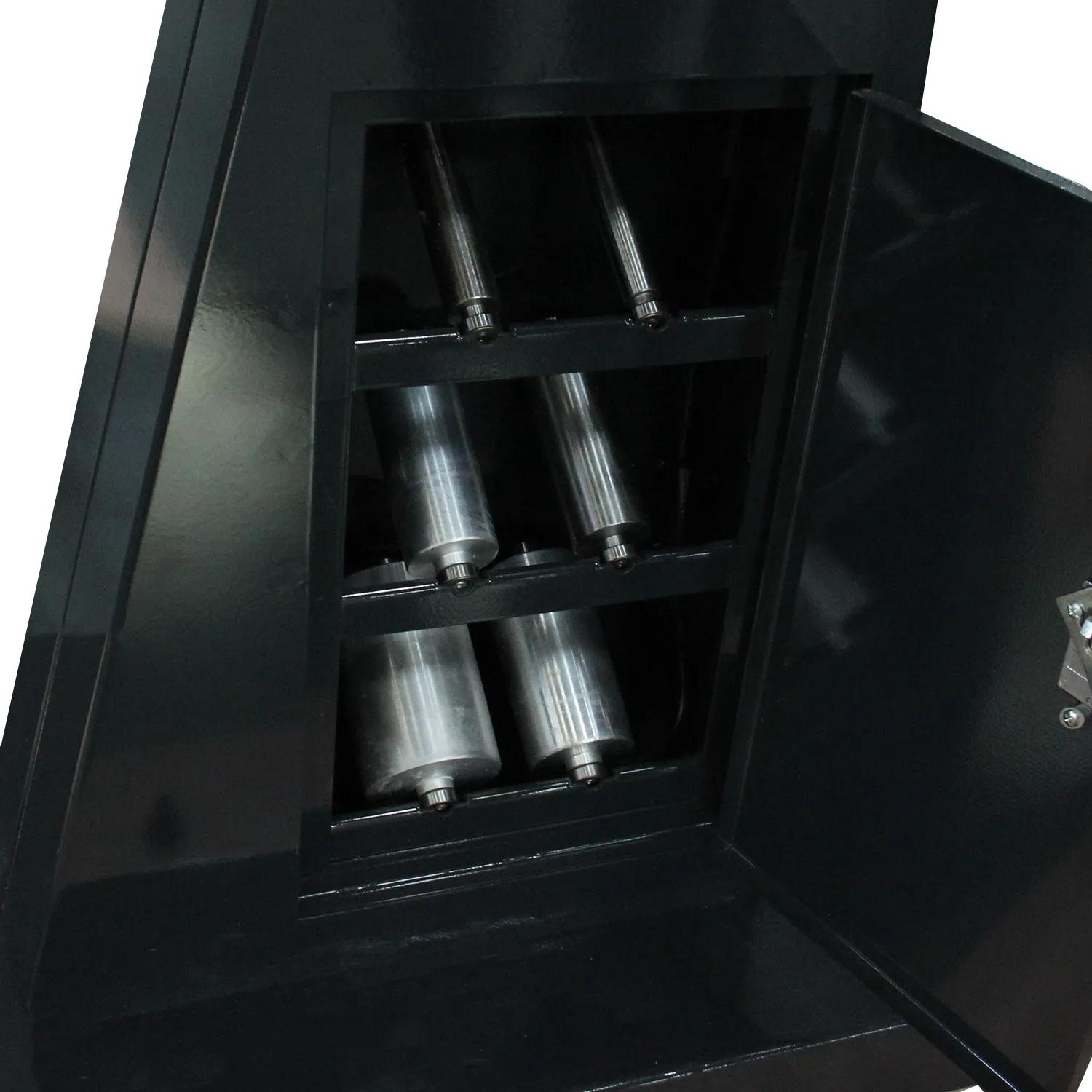

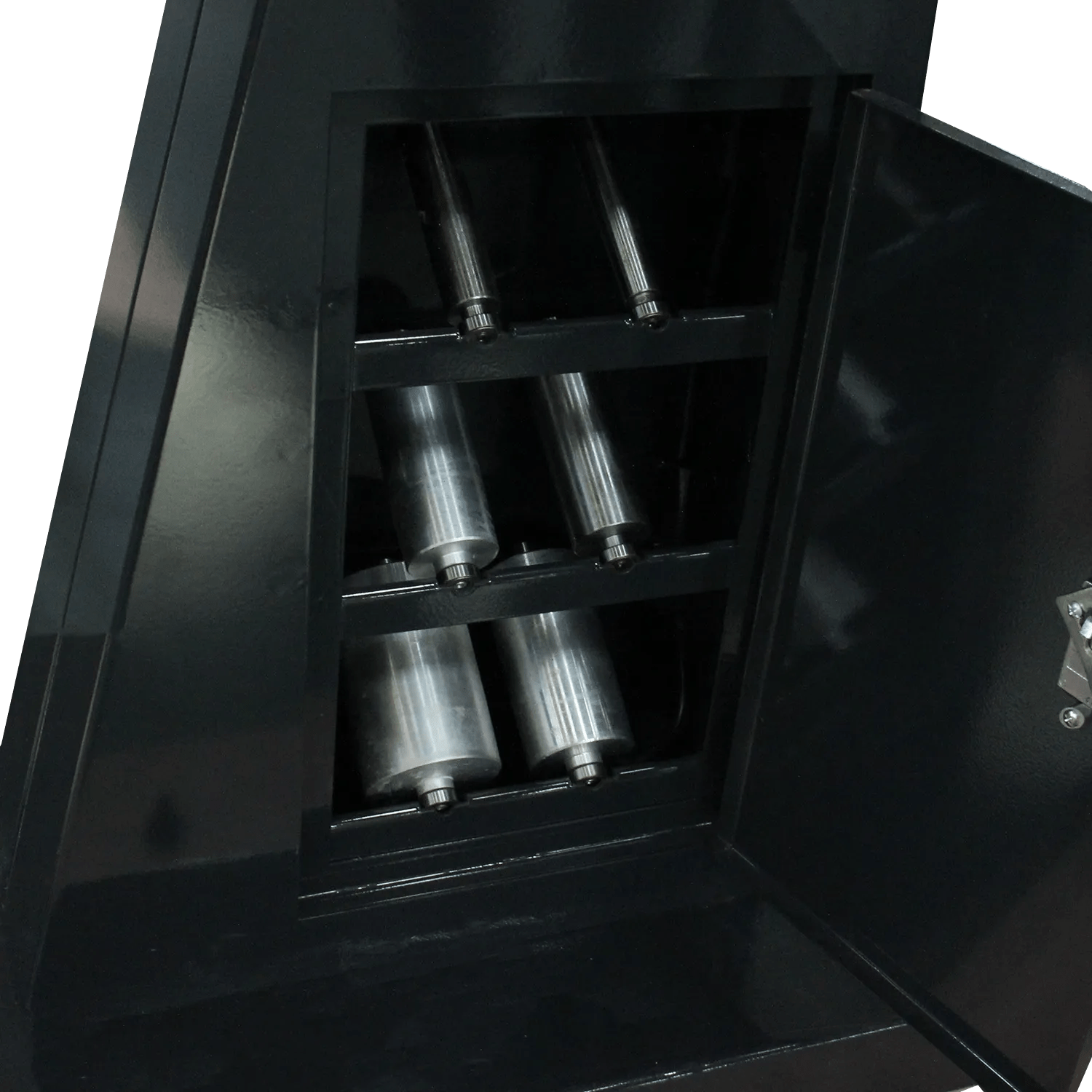

Convenient storage location in the stand for all mandrels/rollers

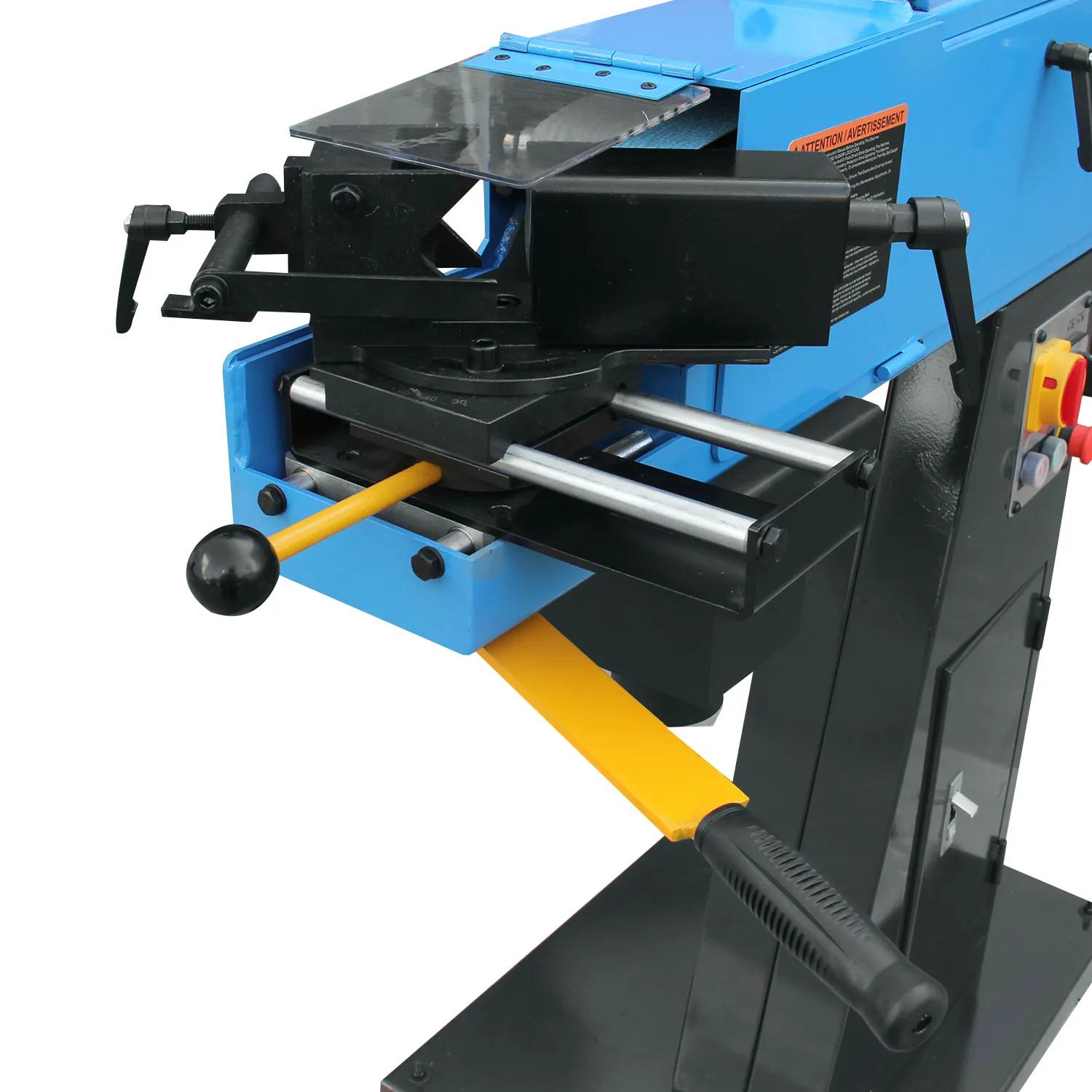

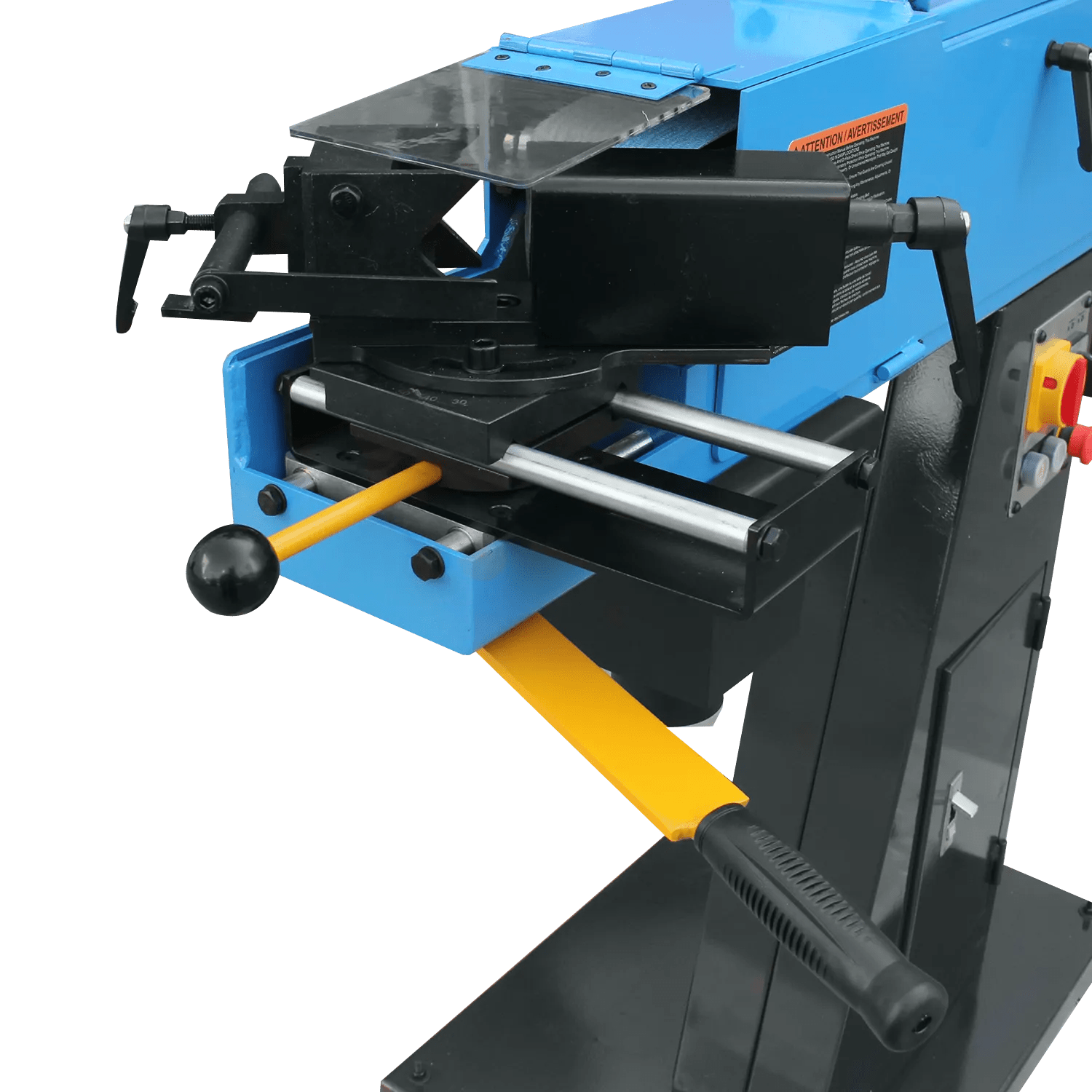

V-jaws of the vise tightly grip both light- and heavy-gauge tubes.

Smooth rail system, controlled by an industrial helm joint and a polished slideway, feeds the material into the belt.

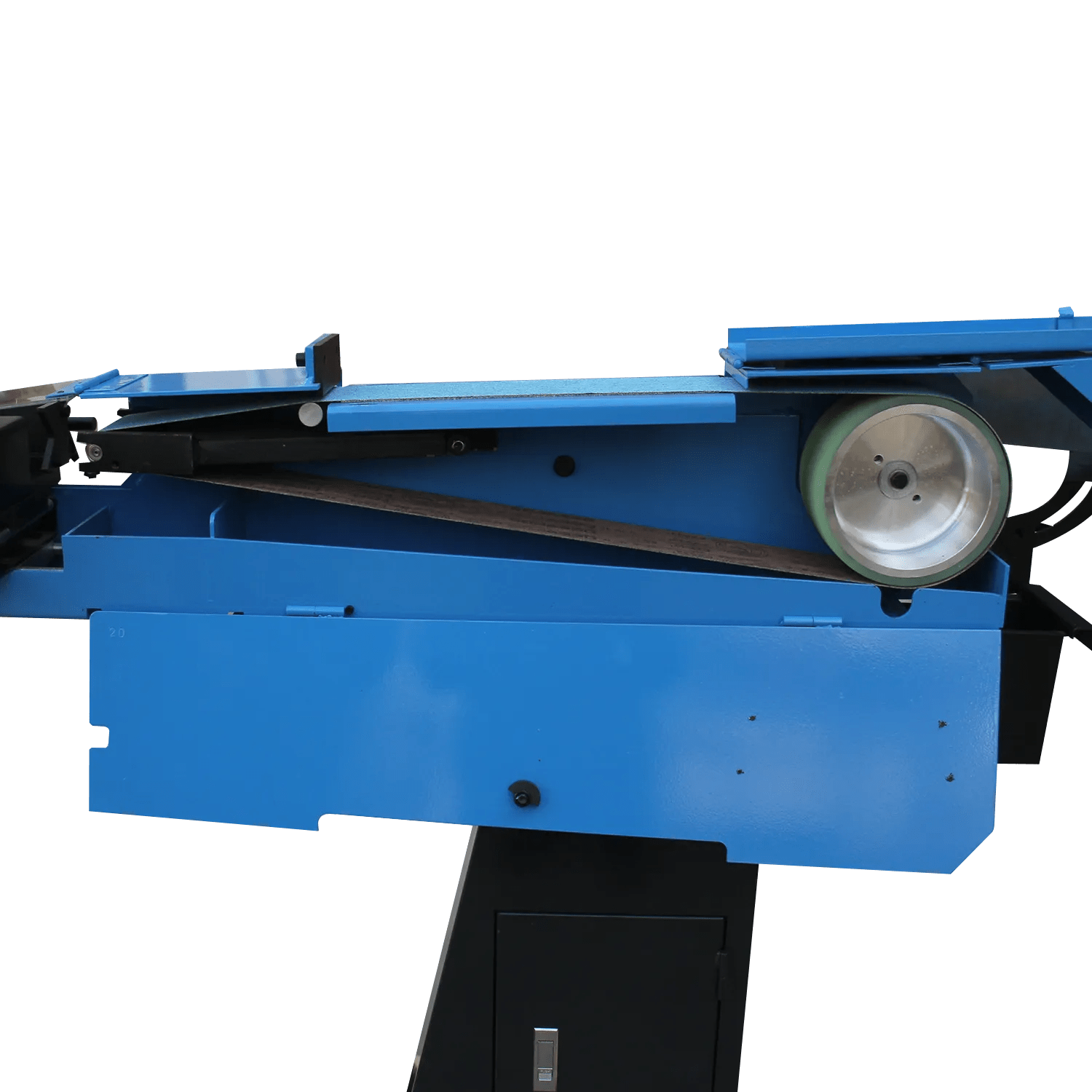

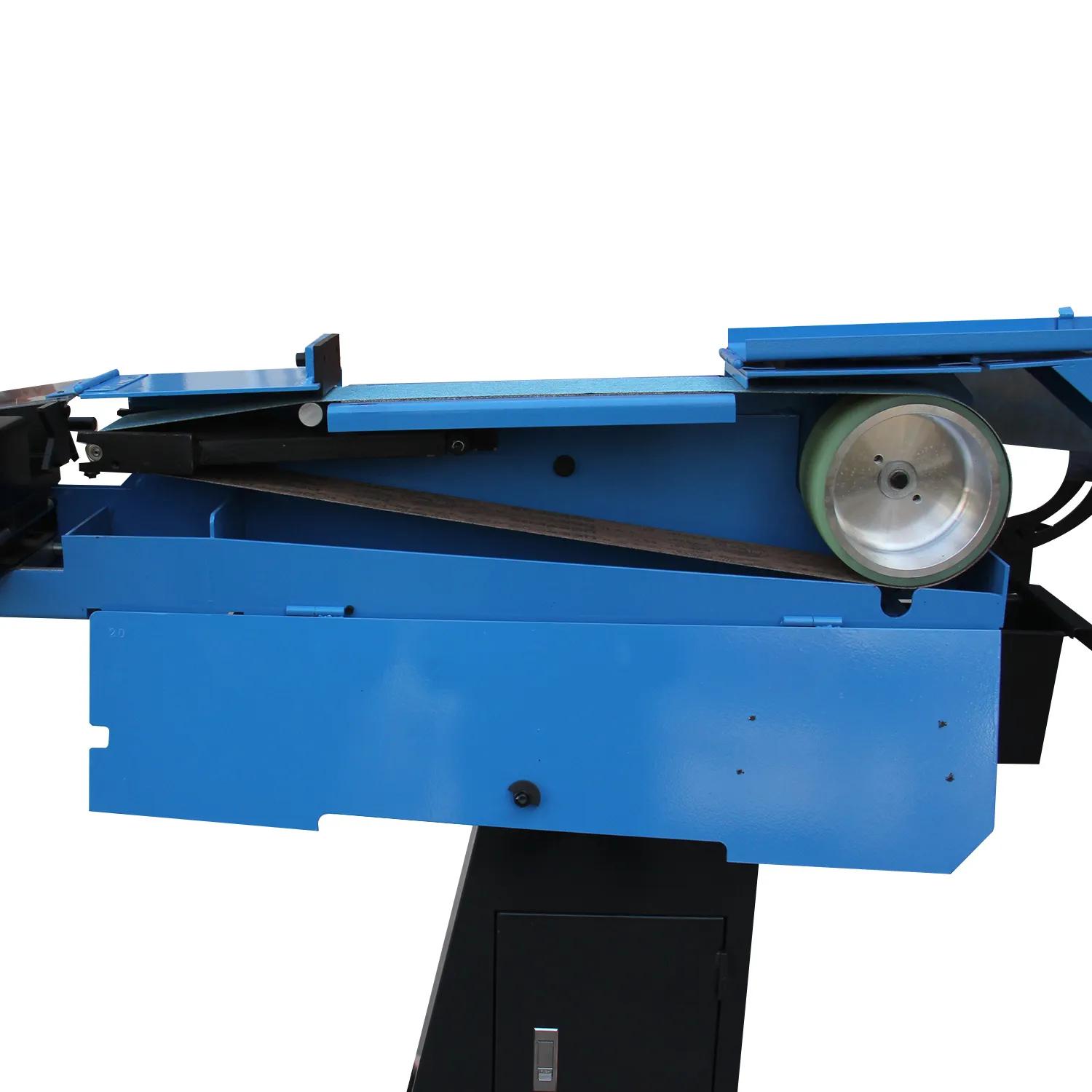

You can adjust belt tension with the convenient wheel.

Specifications

More Information
Stock Number	BA9-1232708
Belt Size (W x L) (In.)	4 x 79
Belt Speed (SFPM)	6600
Gross Weight (Lbs)	510
Model Number	TN-400X3
Motor (HP)	4 hp
Notch Capacity (in./OD)	.5 - 2.5
Prop 65	Cancer and Reproductive Harm
Warranty	1 Year
Gross Weight	510.0
Net weight	344.0
Motor Phase	Single
Volts	230
