Tubing Bender - RDB-100

Stock Number
BA9-RDB100
$3,269.00

Product Overview

For the fabricator who needs to bend lower production runs, this manual tubing bender maintains a high standard of professional-looking bends.

Recommended for: Projects using thin wall tubing.


+ Show More
Bends up to 1.75” OD tubing with a maximum wall thickness of .095” and 1” schedule 40 pipe.

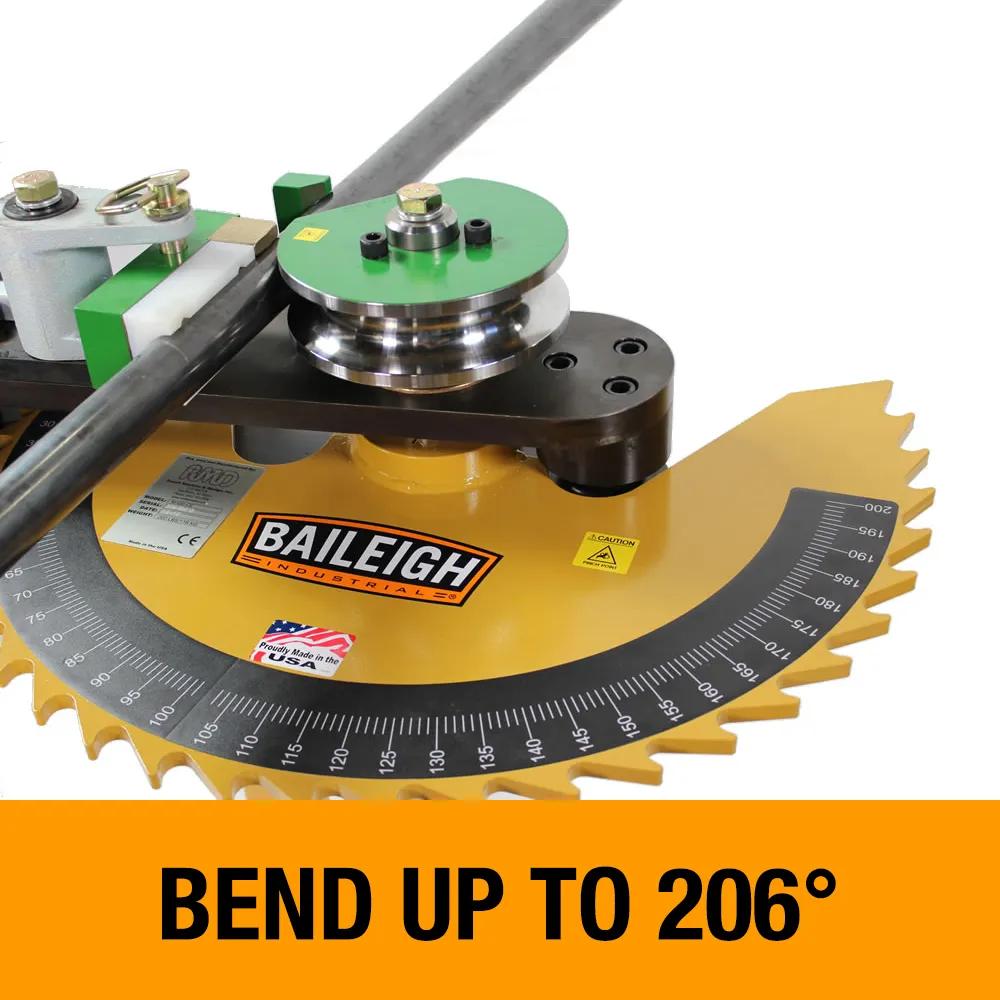

Large-diameter indexing allows you to bend up to 206° (180° plus spring-back) without having to re-index and re-pin—unlike most other manual tube benders on the market.

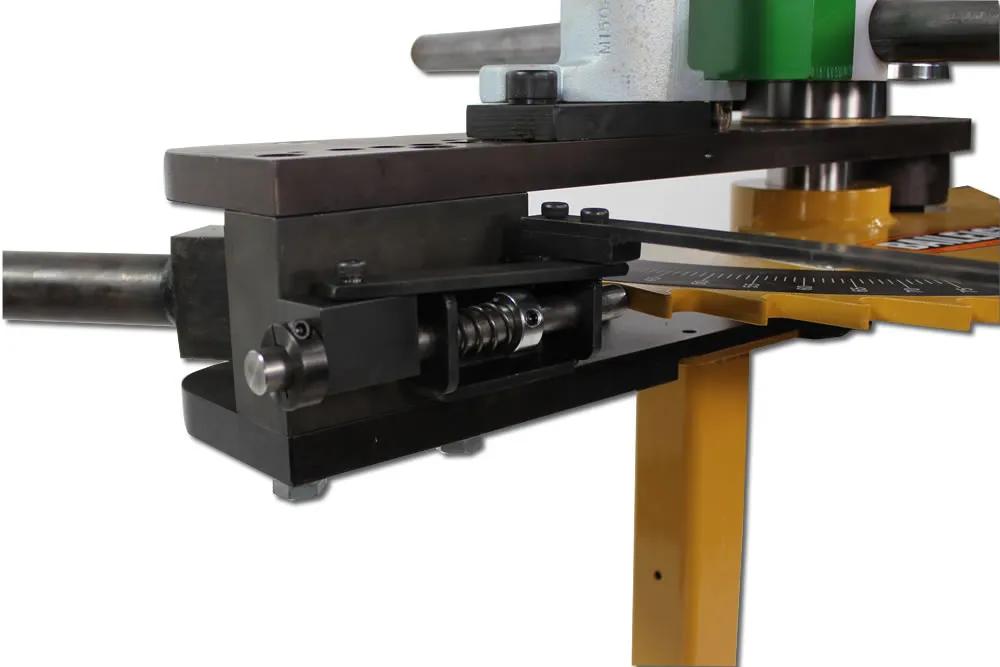

Quick-release counter die system lets you easily load and unload the material.

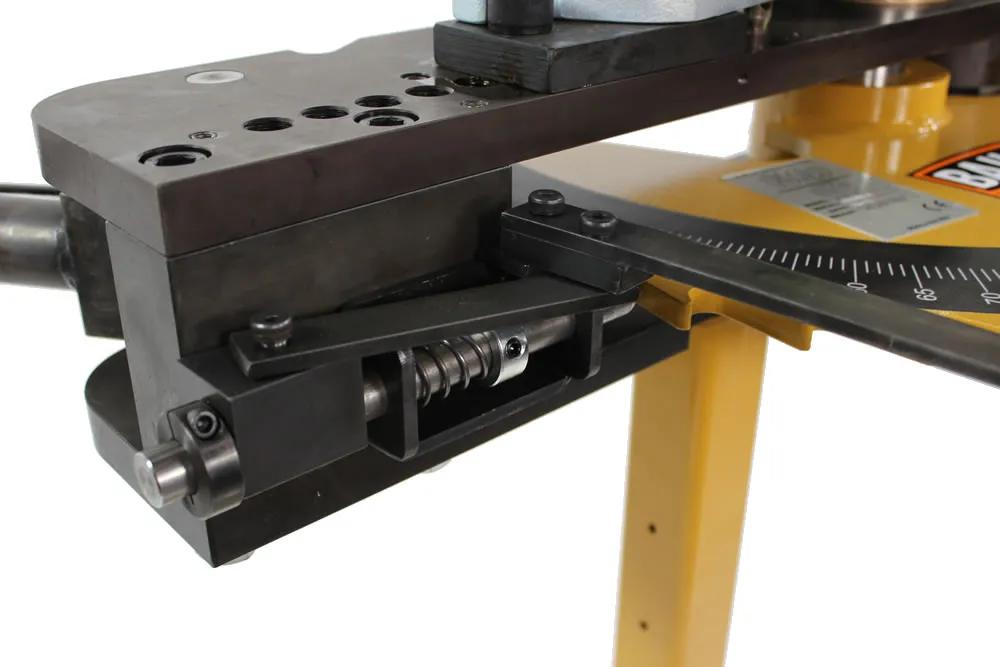

Tension springback mechanism holds position as the bend mechanism grabs the next tooth on the index wheel.

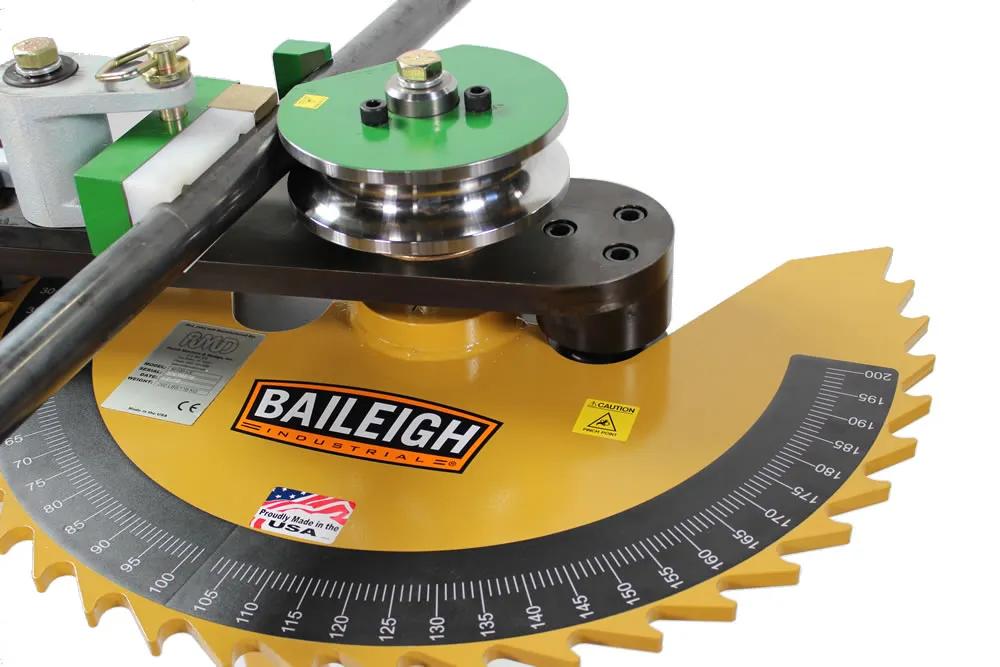

Degree scale displays your bend angle for fast reference.

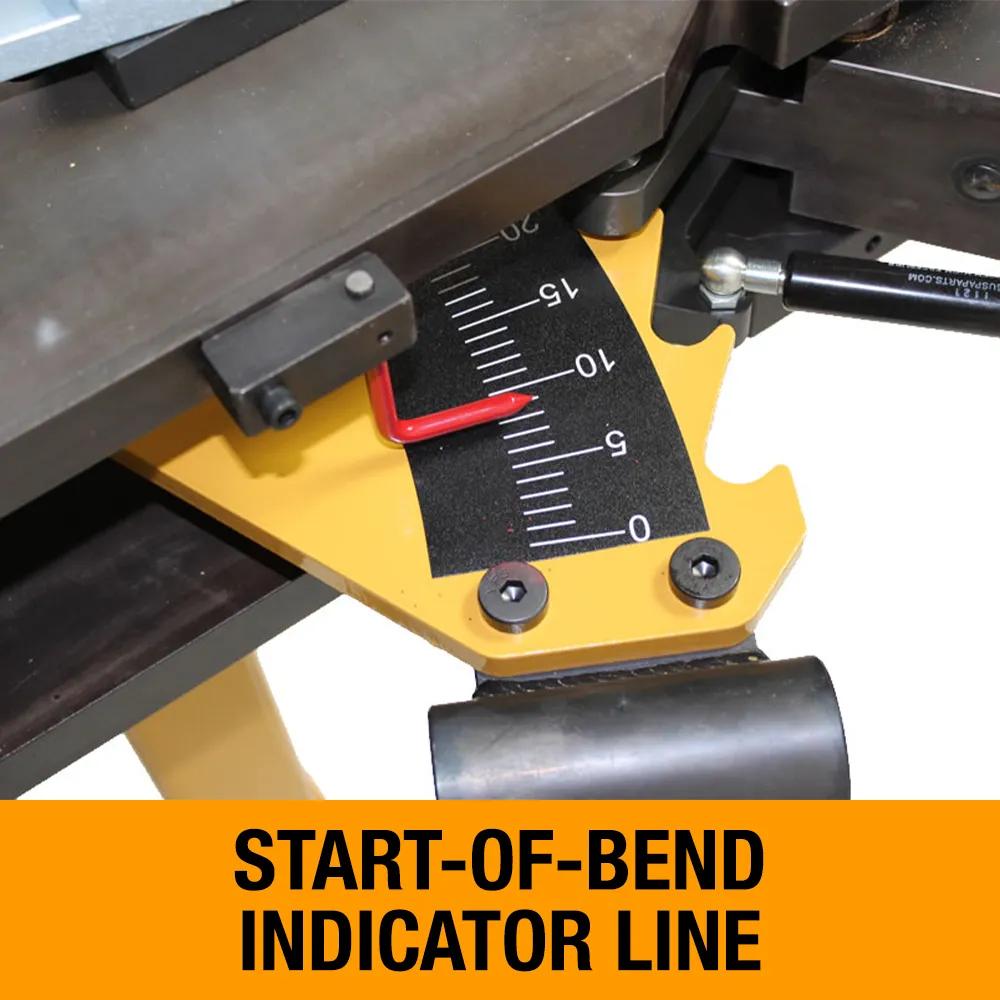

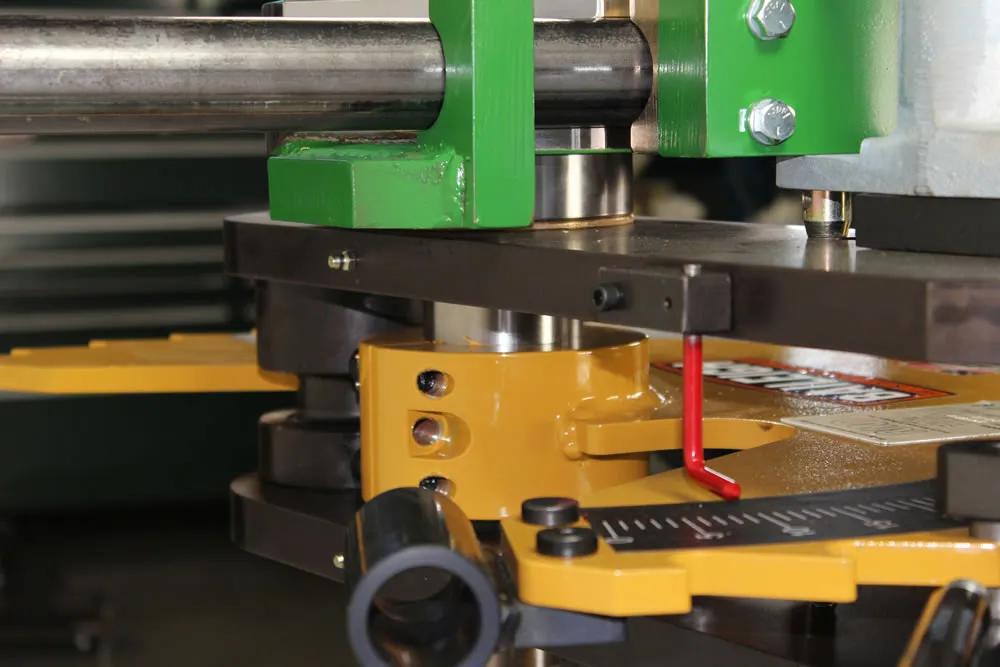

All tooling has a start-of-bend indicator line so you can make complex bends with accuracy and confidence.

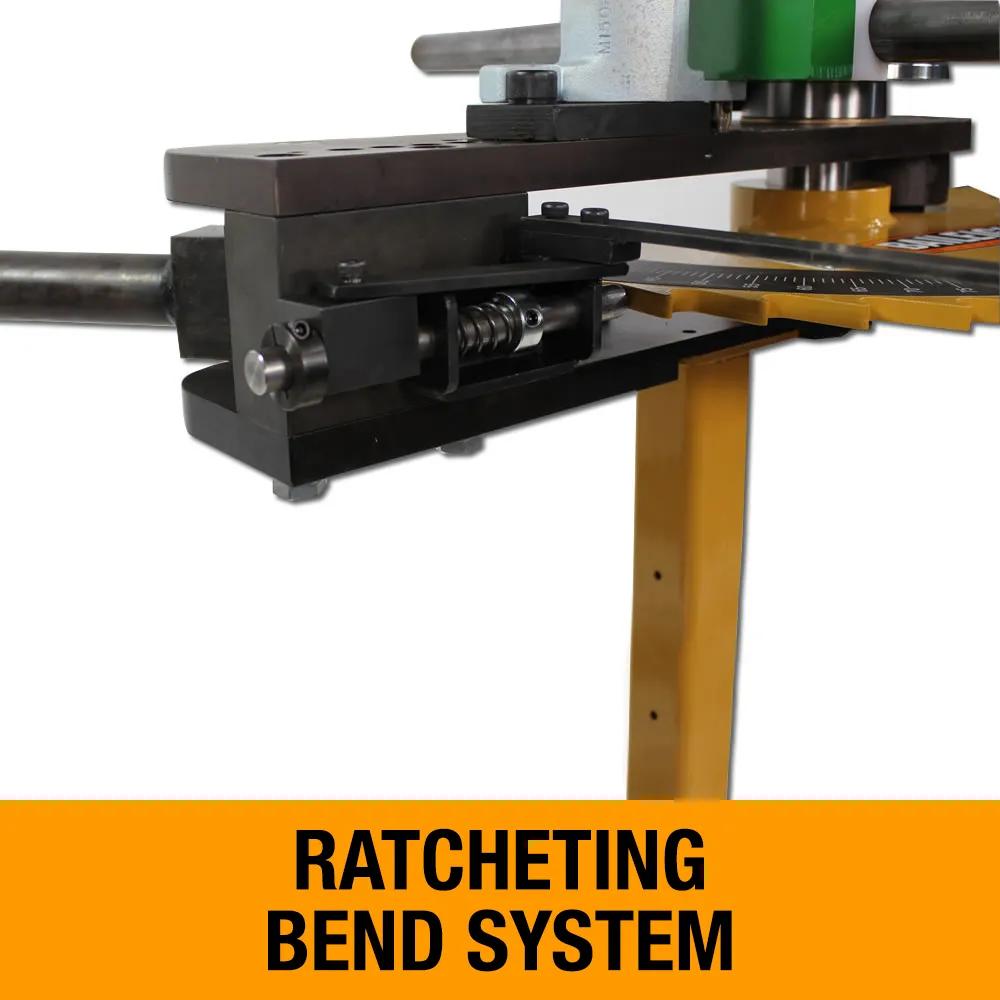

Ratcheting bend system lets you conveniently shift to manual override for lighter-gauge materials.
Ships mostly pre-assembled; simply attach the handle and stand.

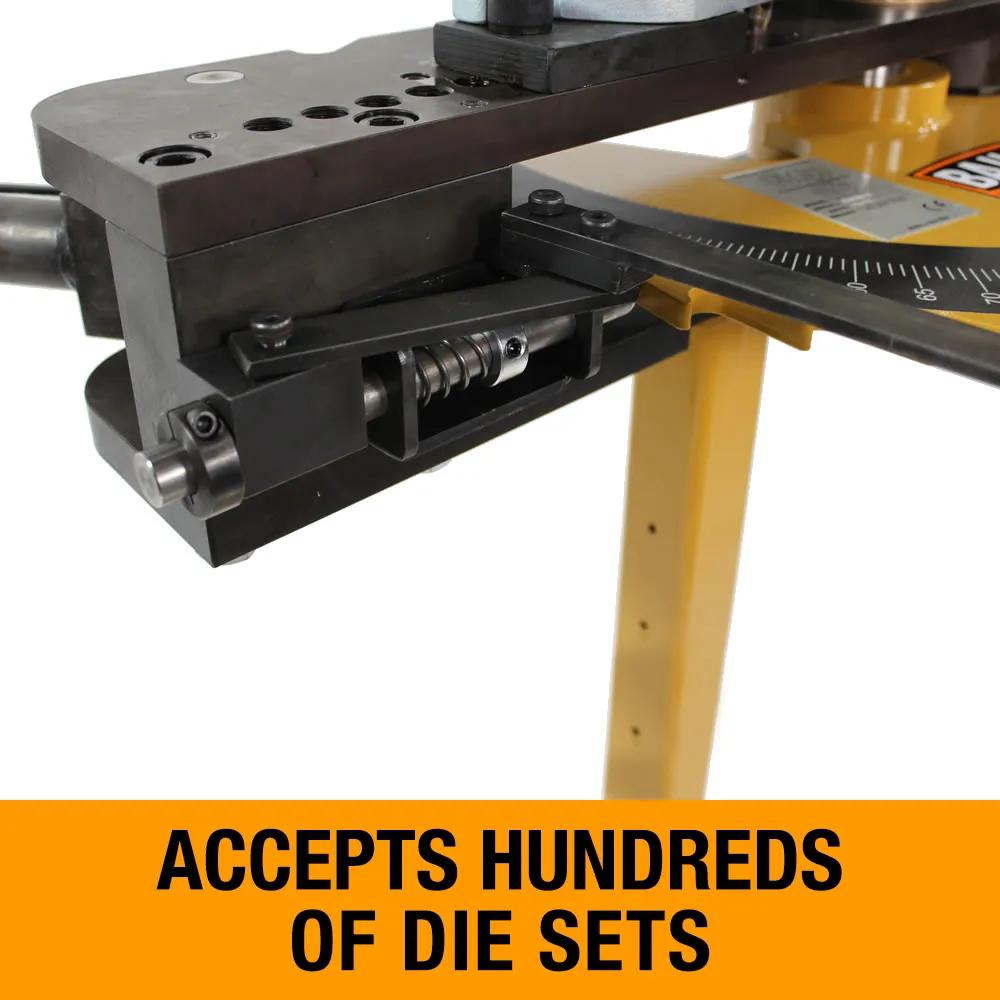

Accepts hundreds of round and square tubing die sets as well as round pipe die sets.

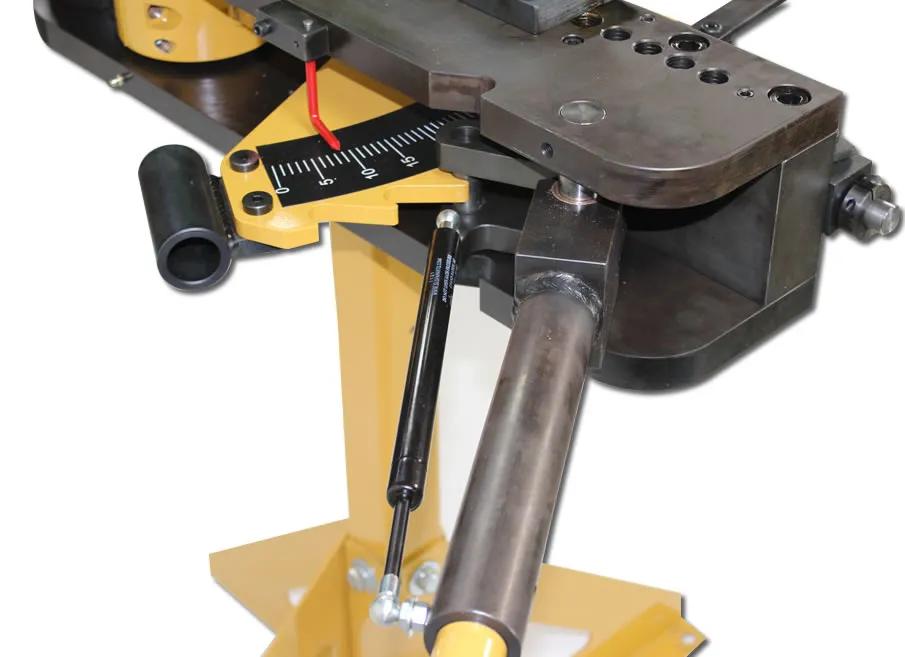

Includes stand, degree dial, and handle.
More Information
Stock NumberBA9-RDB100
Model NumberRDB-100
Aluminum Pipe Schedule 40.75
Center Line Radius (In.)10.5
Chromoly Round Tube Wall1.5" (.083)
Input PowerManual
Max Bend (Degrees)206.0000
Minimum Center line Radius.5"
Minimum OD0.25
Pipe Capacity (In.).75"
Prop 65Cancer and Reproductive Harm
Round Pipe Sch. 40 Capacity (In.)1"
Round Tube Capacity (In.)1.75" (.083)
Shipping Dimensions (L x W x H) (In.)48x45x26
Square Tube Capacity (In.)1" (.125)
Warranty1 Year
Gross Weight410.0
Net weight410.0
