Vertical Band Saw - BSV-20VS-V2
Stock Number:
BA9-1230390
$9,745.00
Enhanced Bullet 1:
220V 1-phase power
Enhanced Bullet 2:
19.625" throat depth
Enhanced Bullet 3:
12.59" maximum cutting thickness
Enhanced Bullet 4:
1/8" to 5/8" blade width
Leasing starts at $245 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview
Within our lineup of vertical bandsaws, the BSV-20VS metal cutting band saw increases the capacity of our BSV-16 and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.
- 2 hp motor runs on 220-volt single-phase power
- Wide 20.5" throat depth.
- 12.375” maximum cutting thickness
- Accepts standard .25” to .625” blades.

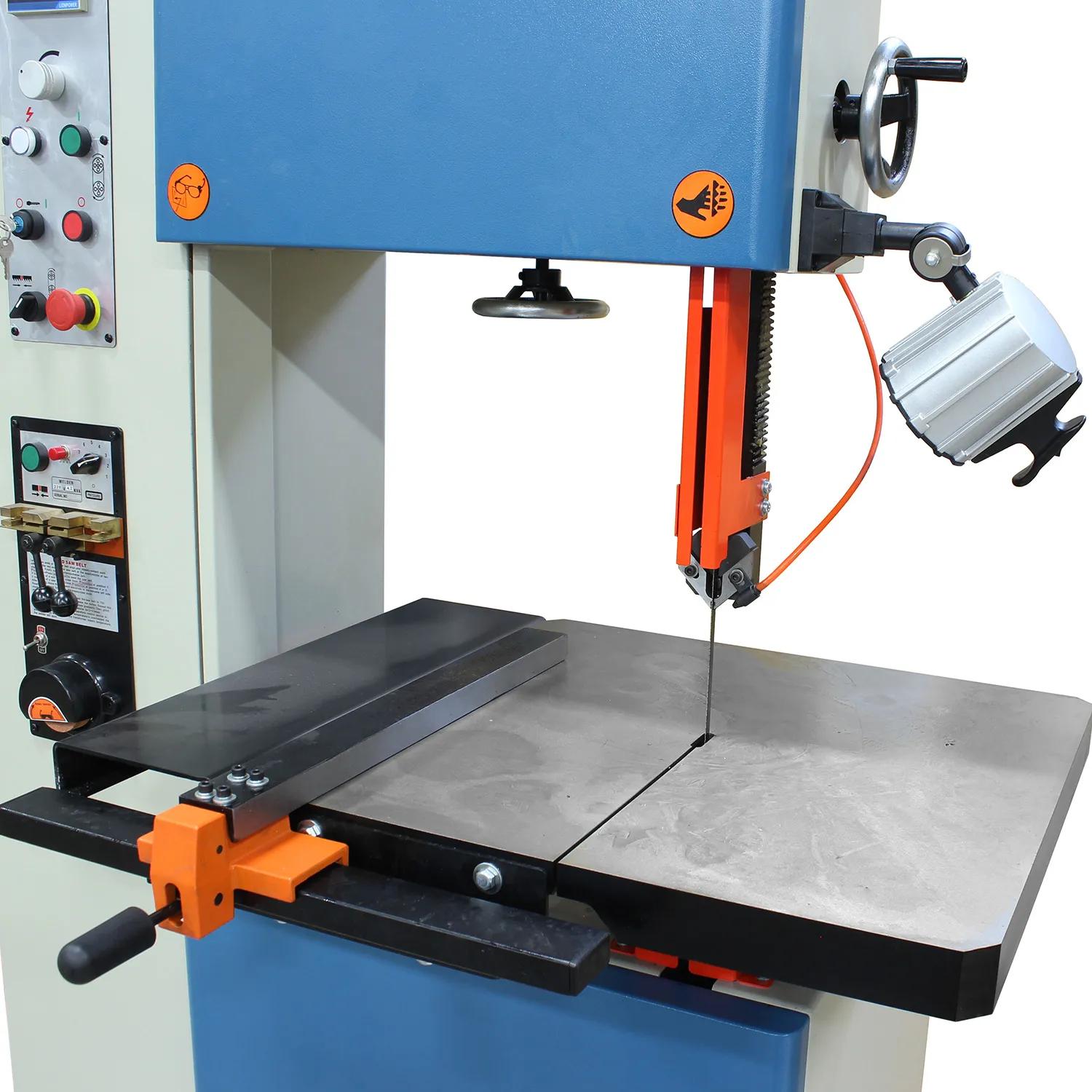

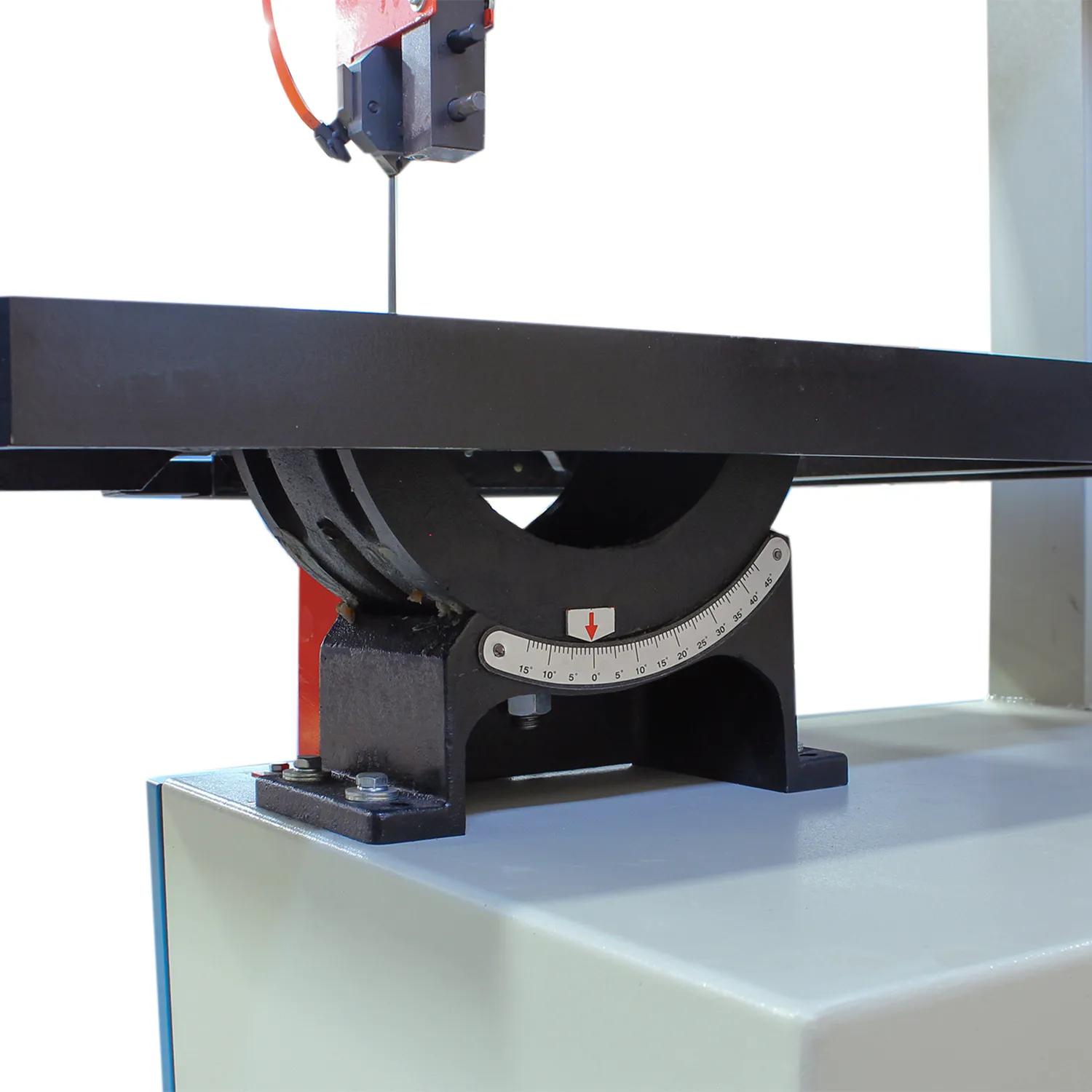

- Cast iron table can pivot front to back and left to right.
- Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable.
- Variable speed from 65 to 1640 fpm allows you to adjust the speed for cutting wood, metal, and even plastic.
- Change the speed with the hand wheel (just turn right for higher speed, left for lower)

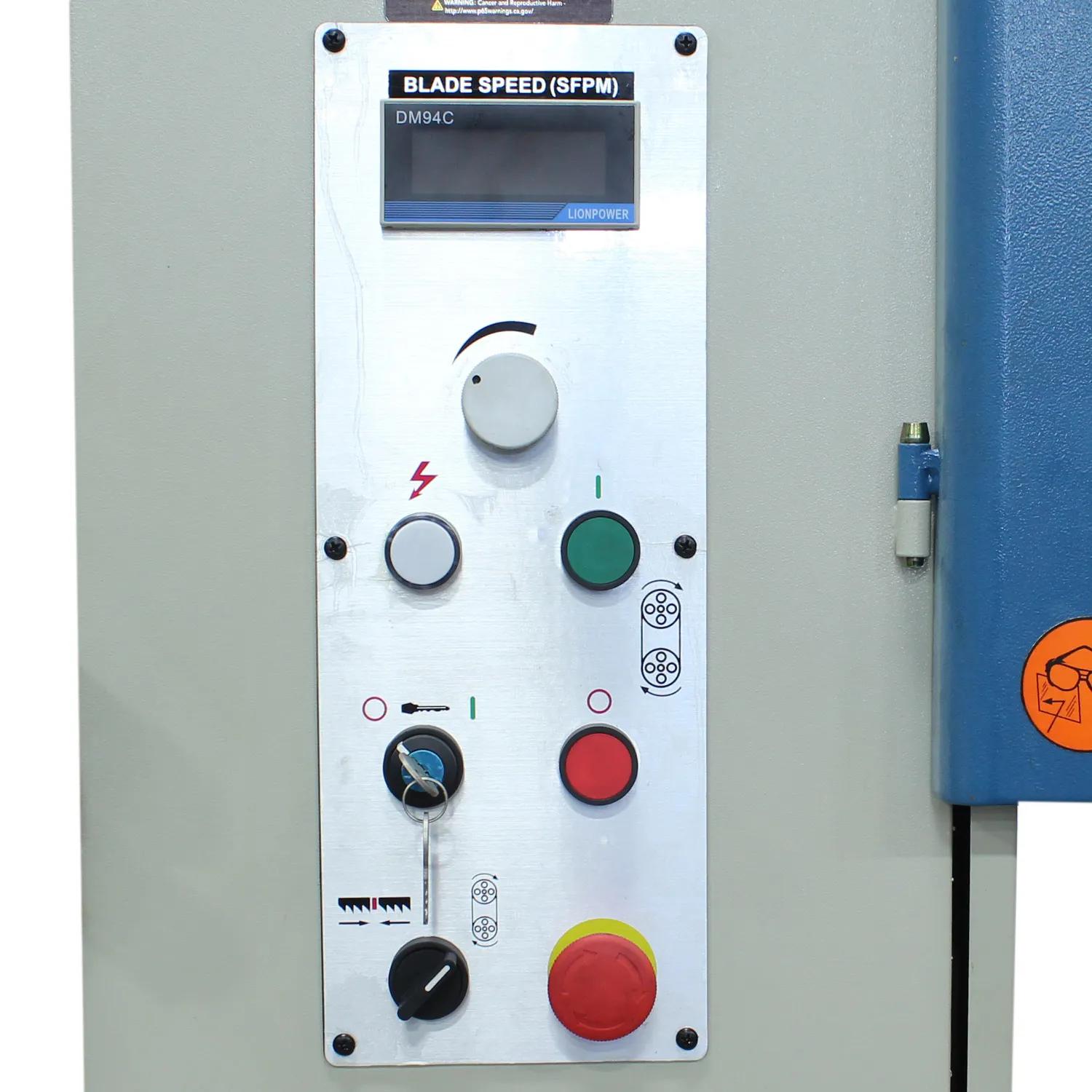

- Digital readout lets you see the exact blade speed, so you can choose the right settings for your material and extend blade life.
- Includes everything you need to cut out the center of the material without having to fix a cut through it.

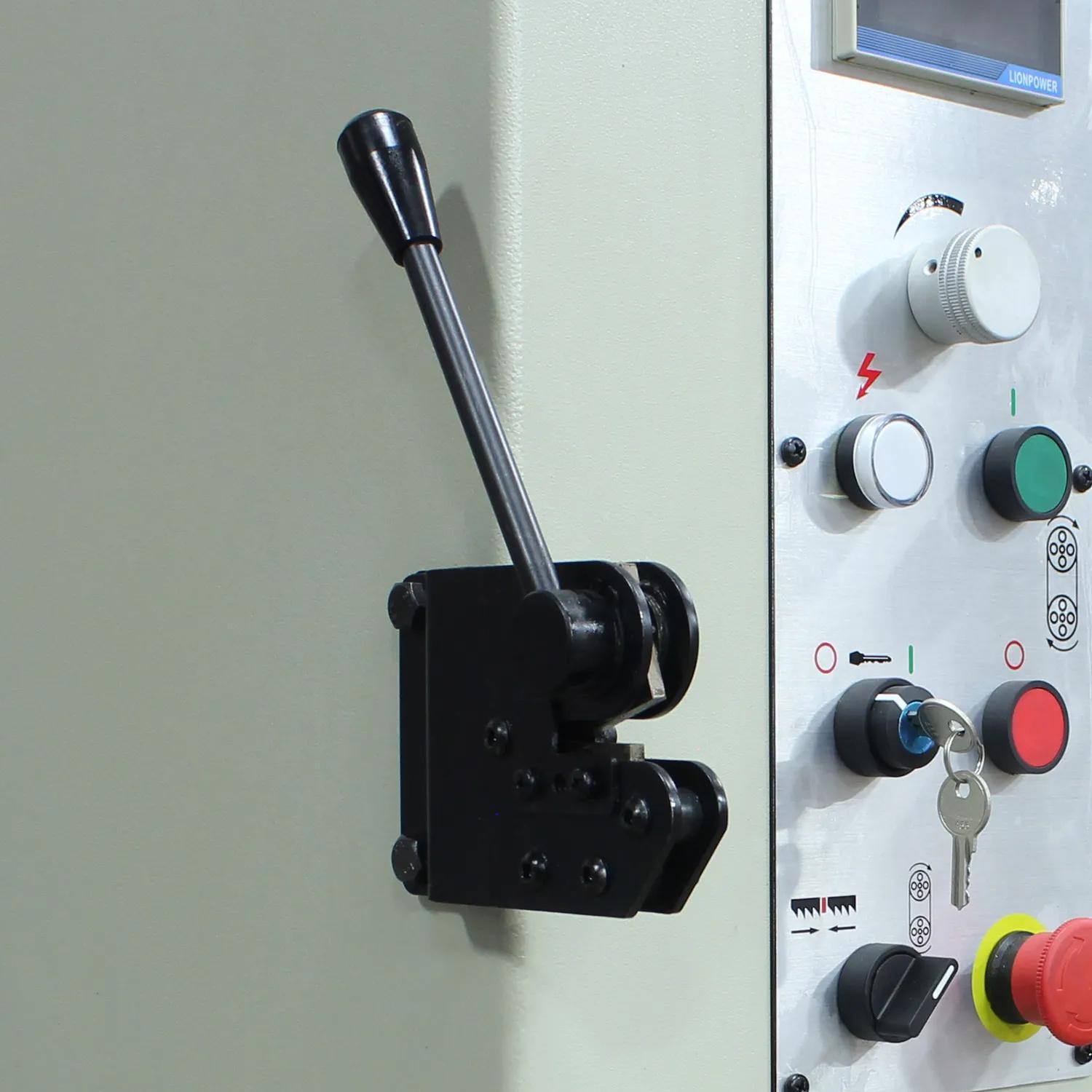

- Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together.

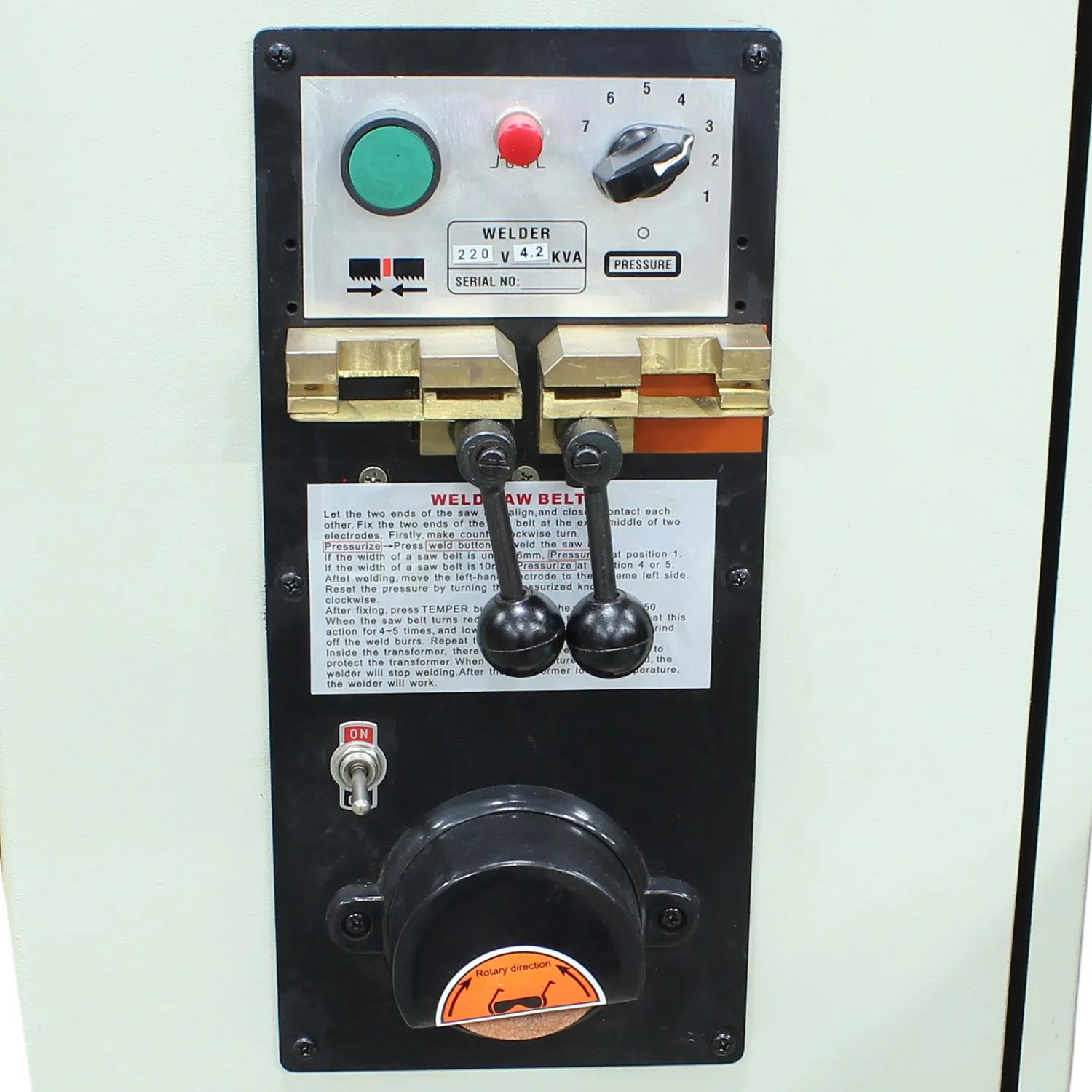

- Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades.
- Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years.

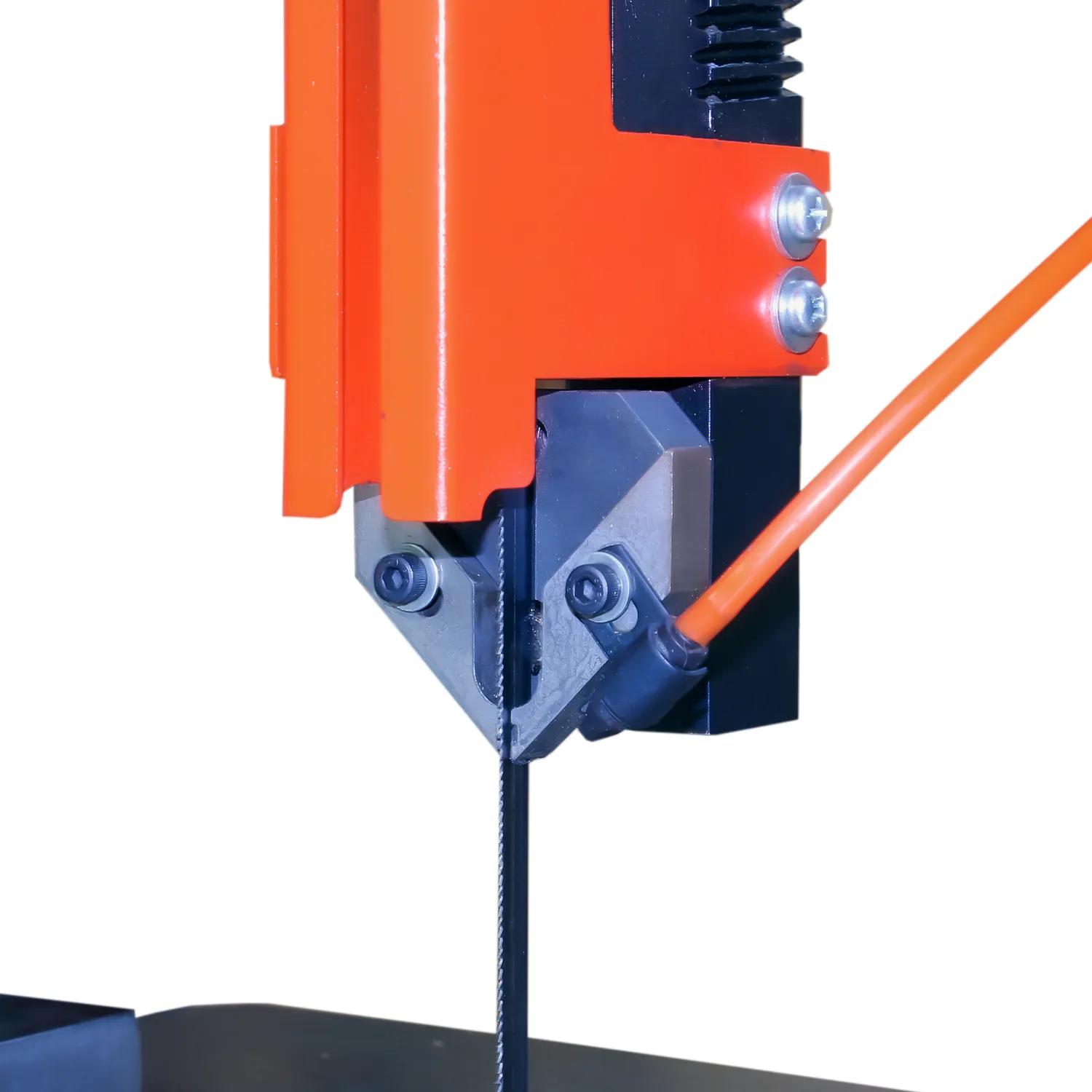

- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
- Halogen work light lets you see what you’re cutting more clearly.
- Covered by a 1-year parts warranty.
- Both the saw and its replacement parts are typically in stock for fast deliveries.
- Air blowdown system cools the blade and keeps the saw clean from material chips and shavings.
Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw. Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy. Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.
| Stock Number | BA9-1230390 |
|---|---|
| Accessories | Included Accessories |
| Blade Length (In.) | 153" |
| Blade Speed (RPM) | 65 - 1640 fpm |
| Blade Thickness | 0.032 |
| Blade Width (In.) | 1/8" - 5/8" |
| Butt Welder Blade Width | 0.813 |
| Input Power | 220V, 60Hz, 1-Phase |
| Model Number | BSV-20VS-V2 |
| Motor (HP) | 2 hp |
| Prop 65 | Cancer and Reproductive Harm |
| Shipping Dimensions (L x W x H) (In.) | 60x44x92 |
| Table Tilt (Deg.) | 5° Left, 15° Right |
| Throat Depth (In.) | 20.50" |
| Weight (Lbs.) | 1190 |
| Gross Weight | 851.0 |
