Vertical Bandsaw | BSV-14VS-V2
Stock Number:
BA9-1230388
$5,685.00
.
Enhanced Bullet 1:
120 volt
Enhanced Bullet 2:
14.17" throat depth
Enhanced Bullet 3:
7.08" maximum cutting thickness
Enhanced Bullet 4:
1/8" to 1/2" blade width
Leasing starts at $143 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview
Within our lineup of Vertical Bandsaws, the BSV-14VS-V2 metal cutting bandsaw increases capacity and adds a variable-speed pulley. Make straight and curved cuts with the vertical blade.
Covered by a 1-year parts warranty. Includes lifetime technical support by phone. You can call our team of experienced reps whenever you need help with this metal-cutting band saw.
Recommended for: Any shop that cuts a variety of materials, such as aluminum, plastic, mild steel, and chrome alloy.
Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Manual
1 hp motor runs on 120-volt power and accepts standard 1/8” to 5/8” blades
Wide 13.97" throat depth and 9.05” maximum cutting thickness

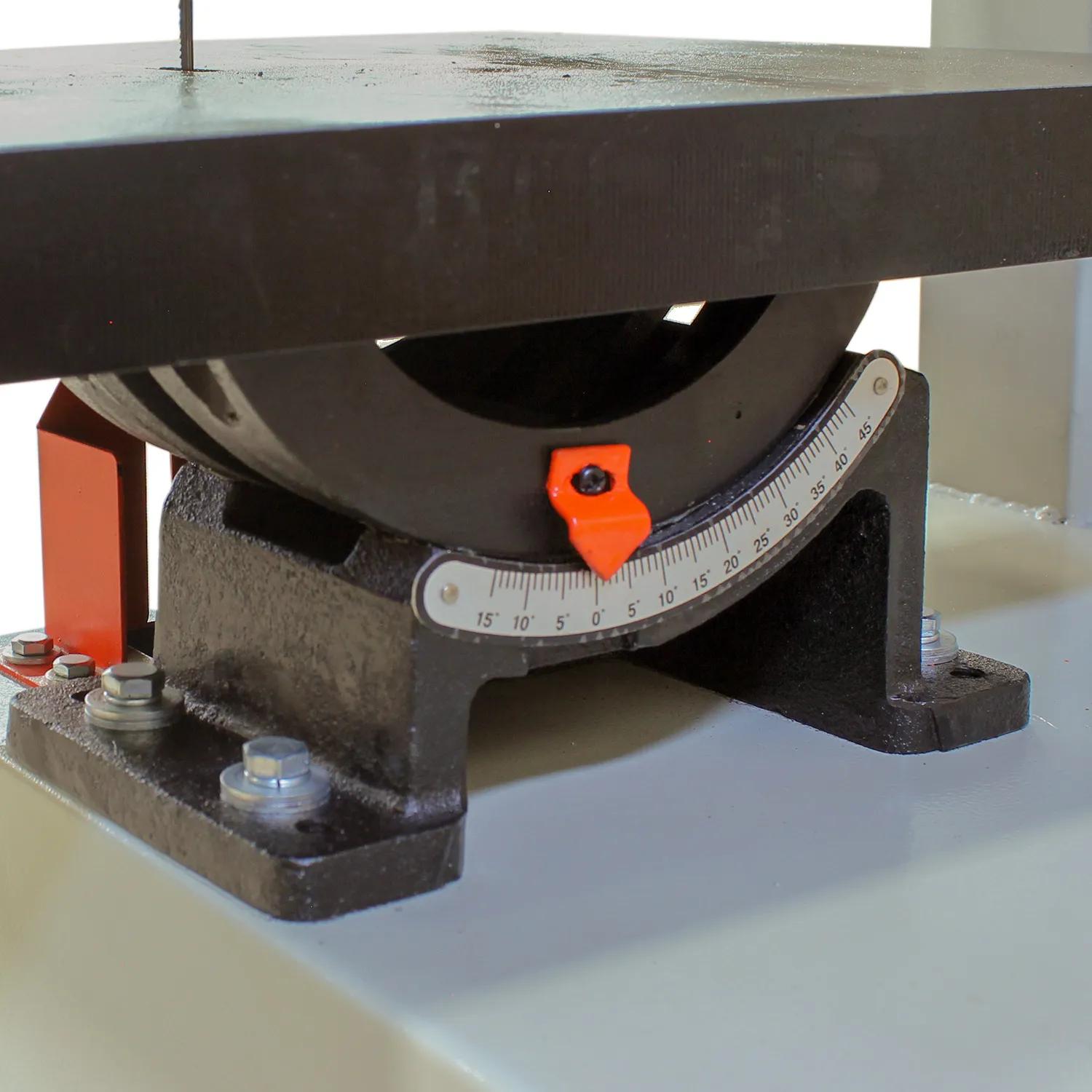

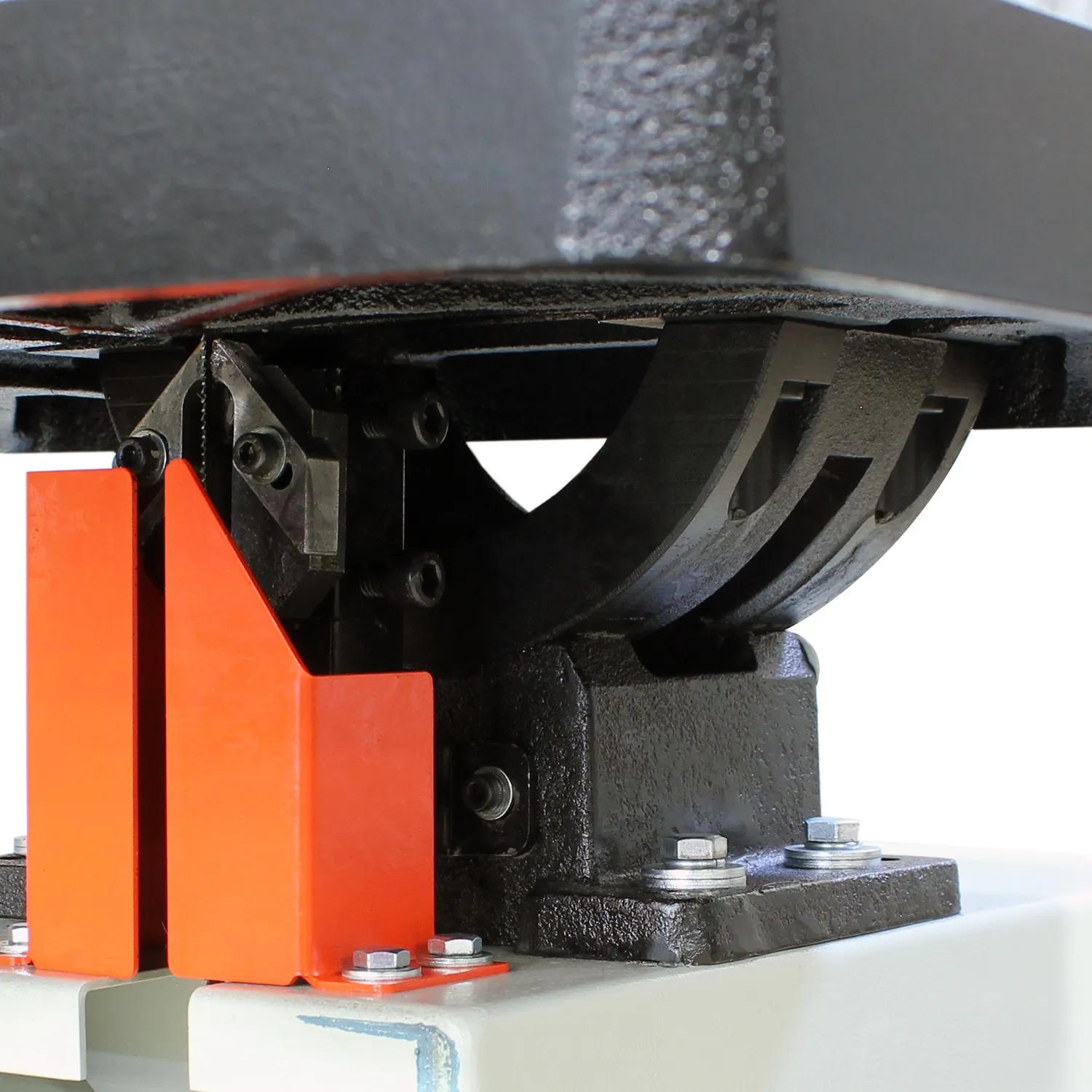

Cast iron table can pivot front to back and left to right while the Halogen work light lets you see what you’re cutting more clearly
Includes a cast iron mitering system, rip fence, and protractor to make sure your cuts are straight and repeatable

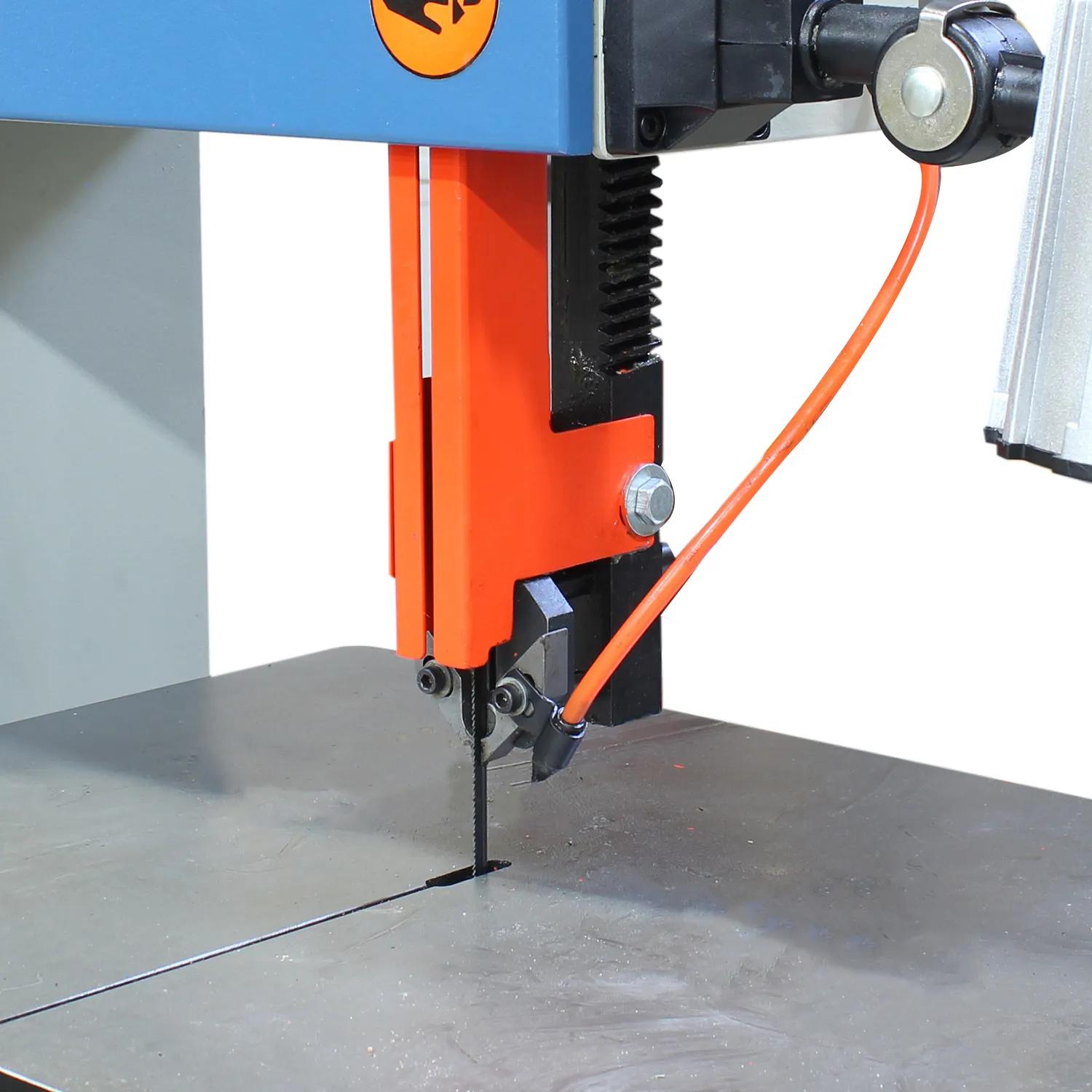

Variable speed from 65 to 295 fpm allows you to adjust the speed for cutting wood, metal, and even plastic while the air blowdown system cools the blade and keeps the saw clean from material chips and shavings
Change the speed with the hand wheel (just turn right for higher speed, left for lower) -with the help of a speed scale that lets you see the estimated blade speed
This bandsaw includes everything you need to cut out the center of the material without having to fix a cut through it
Manual shear lets you cut the blade, so you can run it through the workpiece, then weld it back together

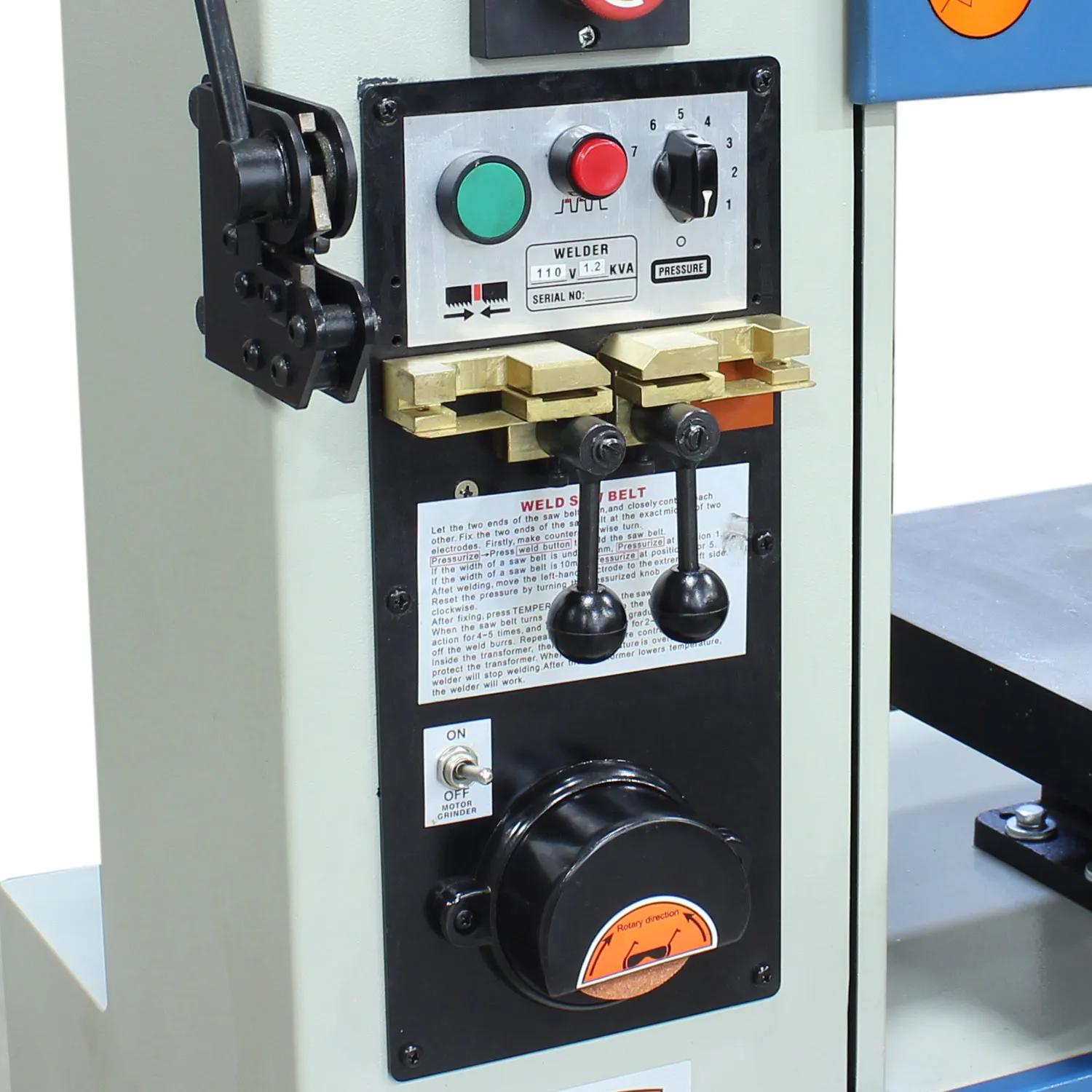

Comes standard with a fully-integrated blade welder with a built-in grinder for finishing the weld joint—great for getting to the center of a cut or repairing blades
Thick steel plate framework minimizes vibrations to deliver accurate cuts and helps the machine last for many years
| Stock Number | BA9-1230388 |
|---|---|
| Accessories | Included Accessories |
| Blade Length (In.) | 105.11" - 115.03" |
| Blade Speed (RPM) | 110 - 1200 FPM |
| Blade Thickness | 0.032 |
| Blade Width (In.) | 0.118" - 0.51" |
| Drive | A55 (two pieces) |
| Input Power | 110 Volt |
| Model Number | BSV-14VS-V2 |
| Motor (HP) | 1 HP ~ 110V |
| Prop 65 | Cancer and Reproductive Harm |
| Shipping Dimensions (L x W x H) (In.) | 60” x 45” x 81” |
| Table Tilt (Deg.) | 15° Left, 15° Right, 15° Front, 15° Back |
| Throat Depth (In.) | 13.97" |
| Warranty | 1 Year |
| Weight (Lbs.) | 799 |
| Gross Weight | 445.0 |
| Net weight | 445.0 |
