VMD-15 - 15" Mill Drill with R-8 Taper
Stock Number:
BA9-1231787
$1,548.15
Enhanced Bullet 1:
115V 1 hp motor.
Enhanced Bullet 2:
R8 taper
Enhanced Bullet 3:
1” drilling capacity.
Enhanced Bullet 4:
12 speeds: 110 to 2580 rpm.
Leasing starts at $77 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview

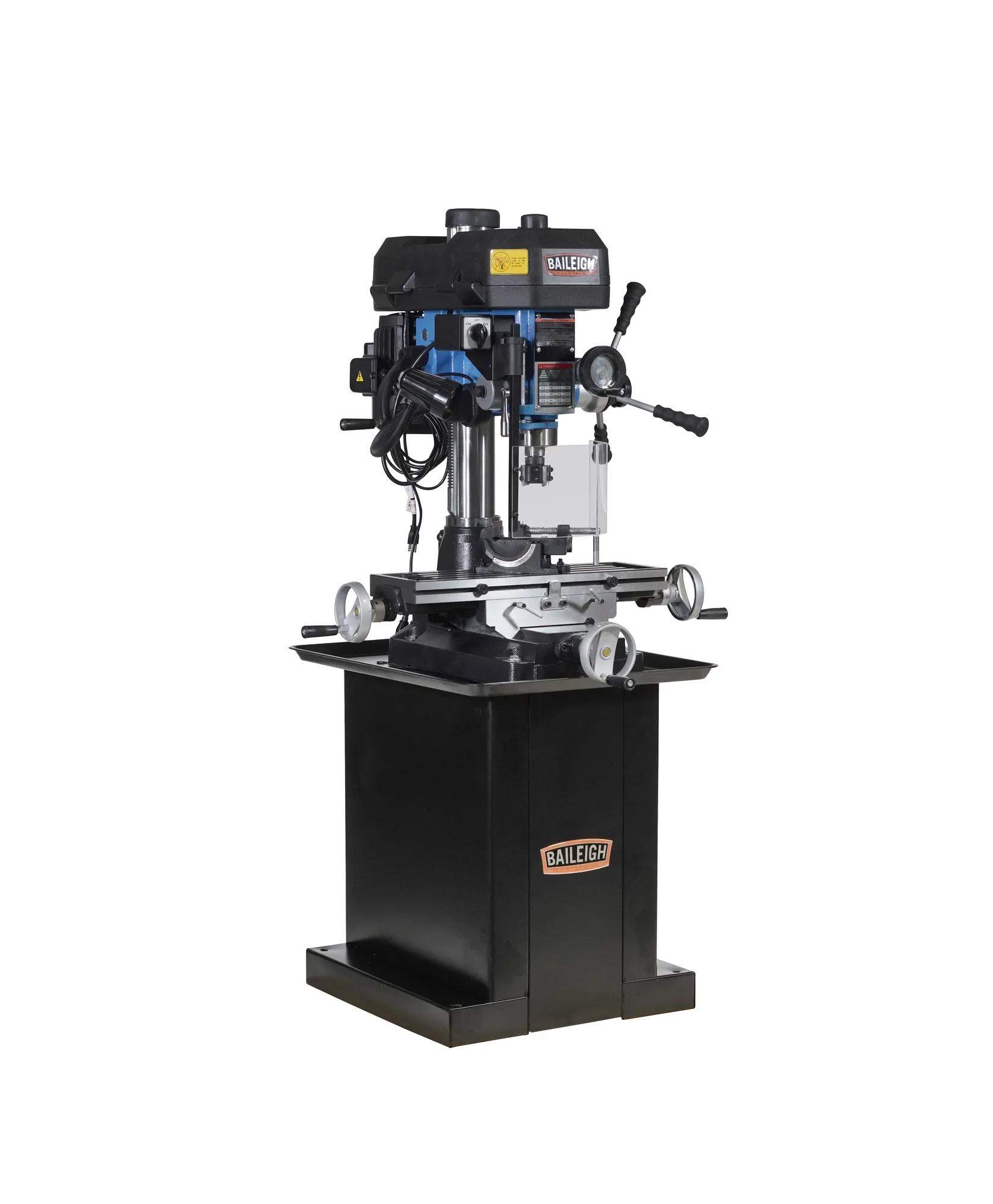

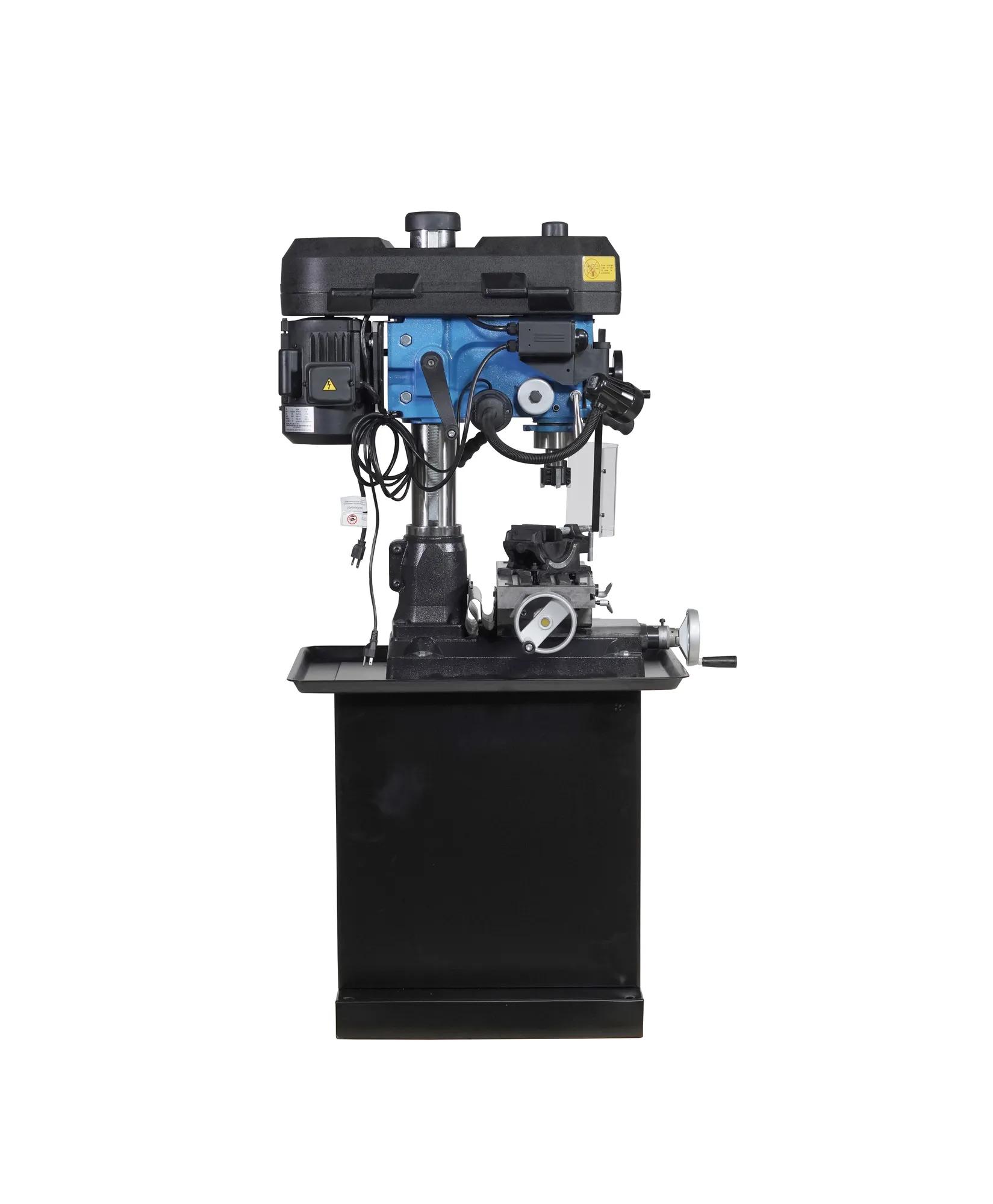

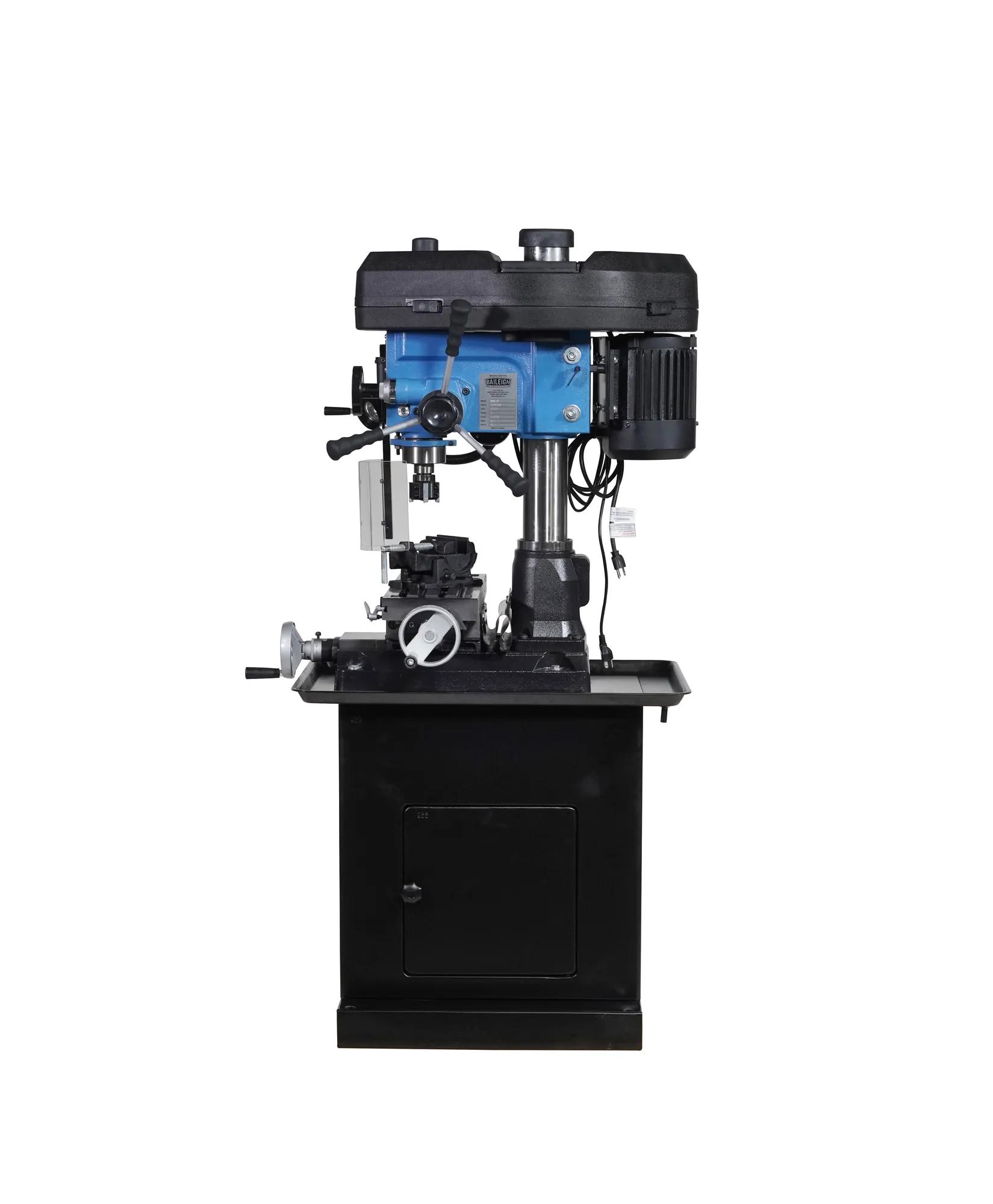

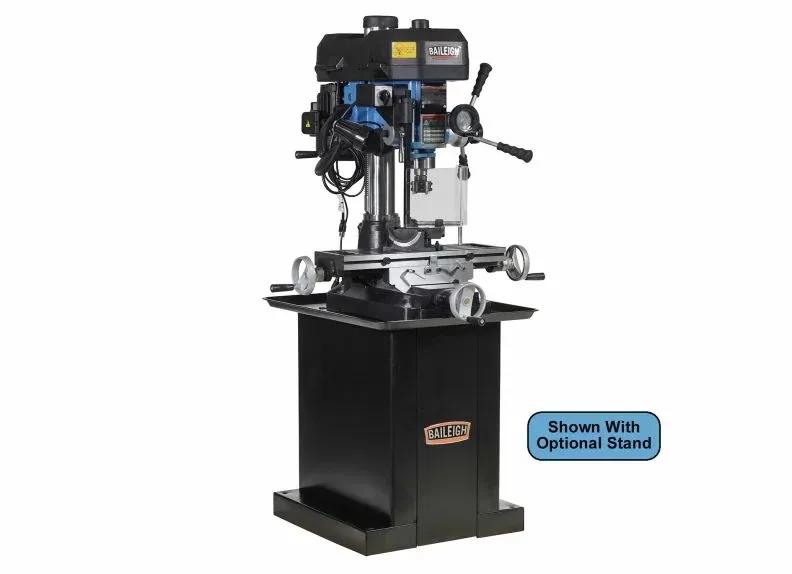

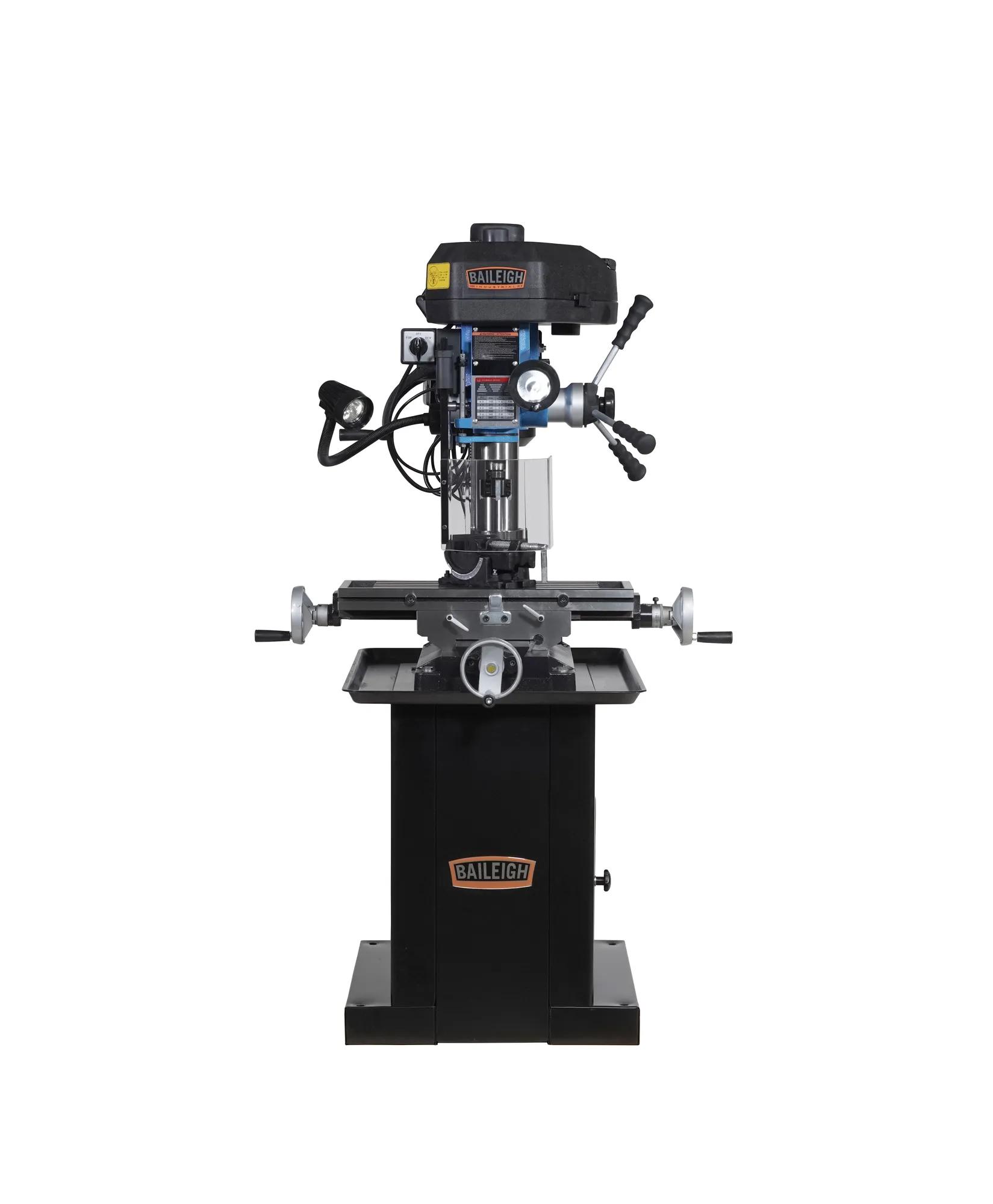

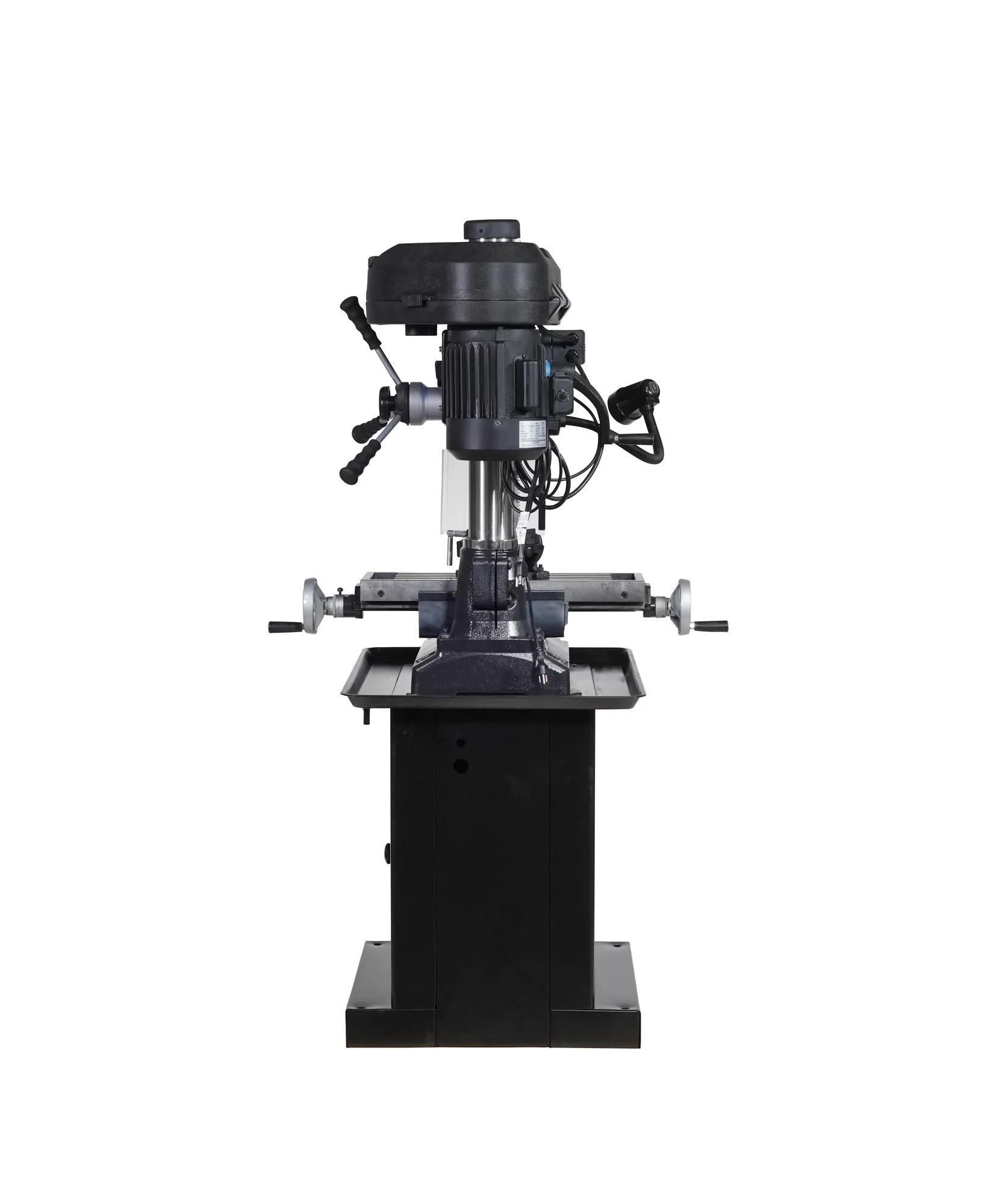

The Baileigh VMD-15 Vertical Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money. The VMD-15 Vertical Mill Drill is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.
Manual
Efficiency

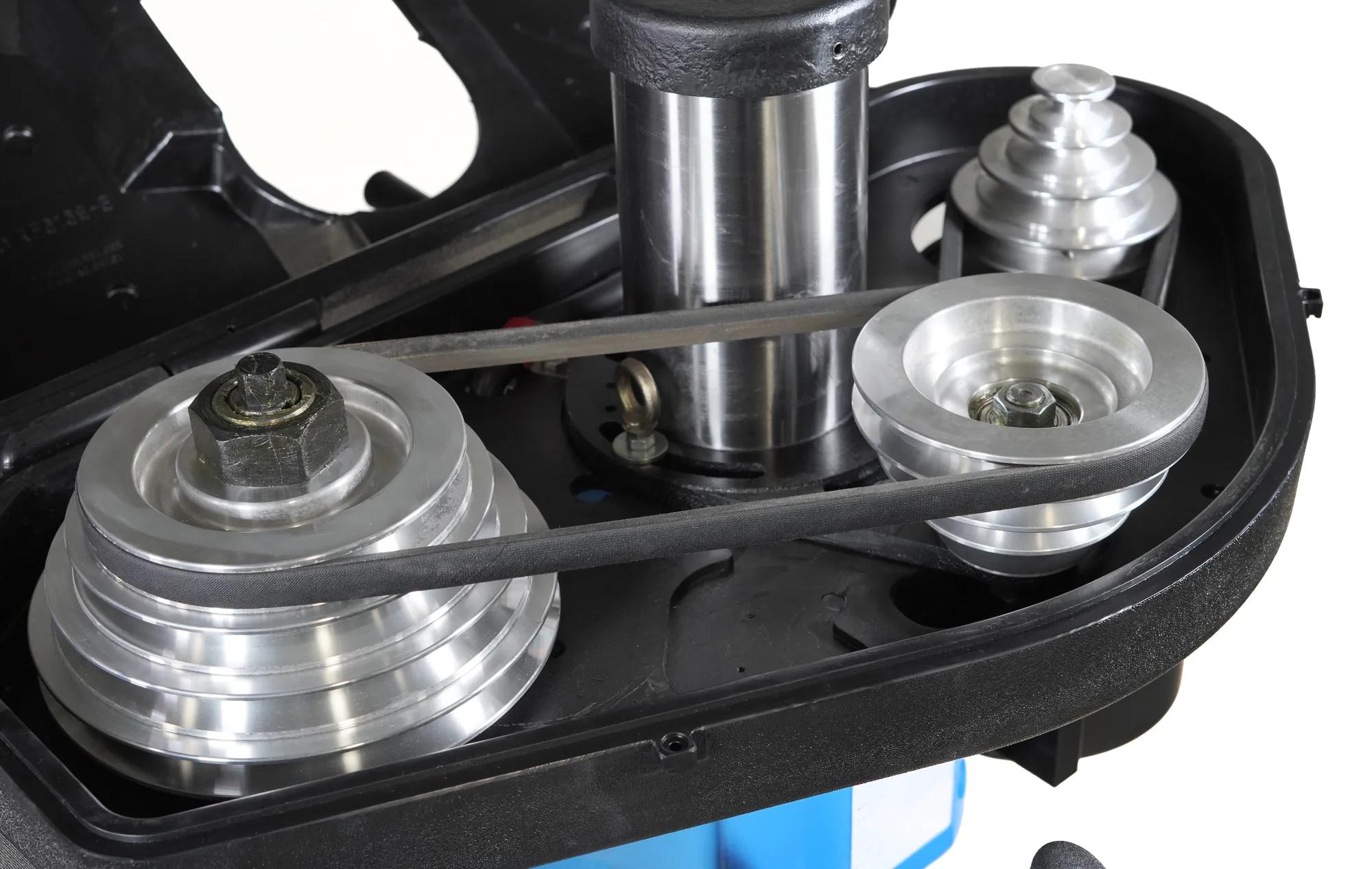

Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds

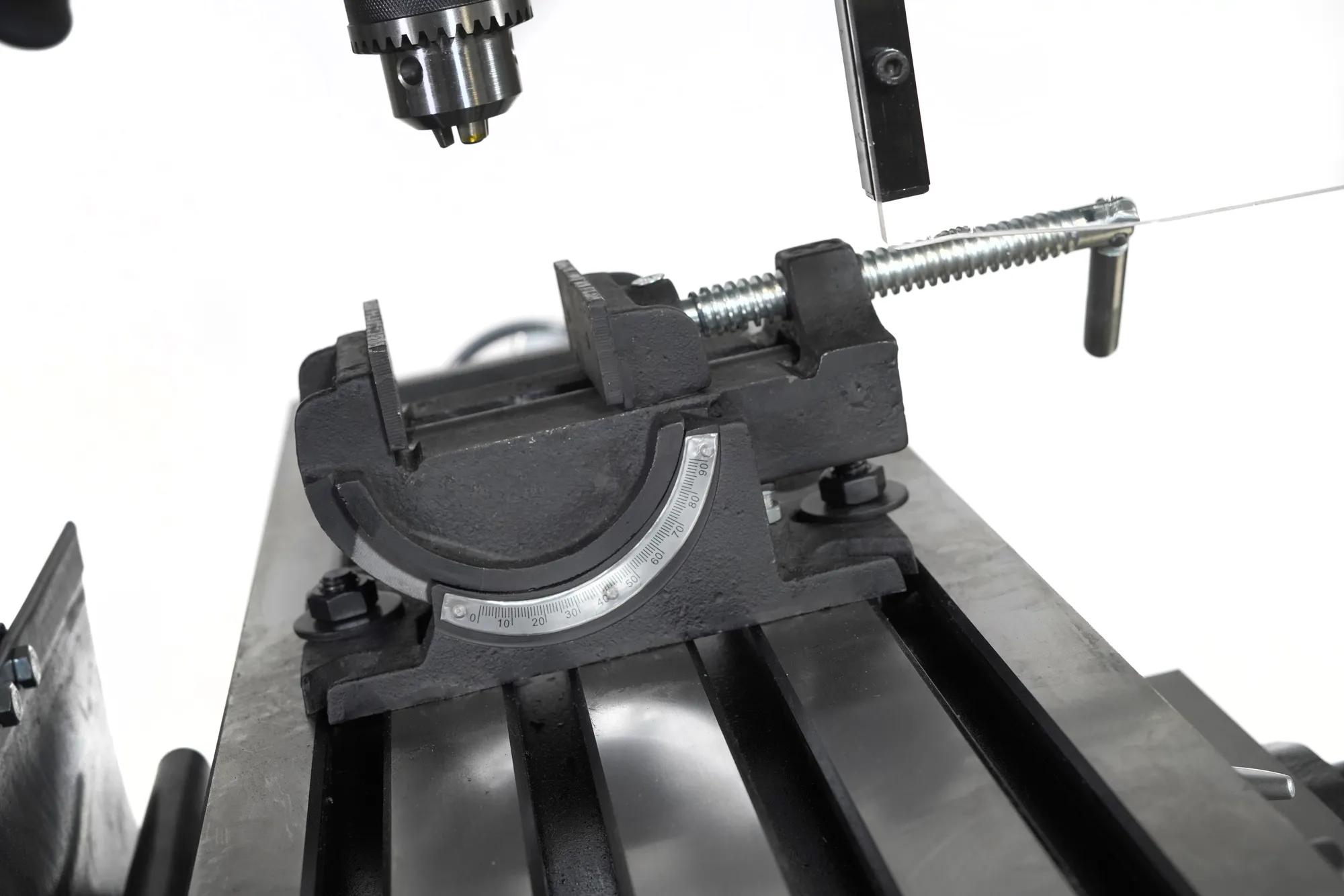

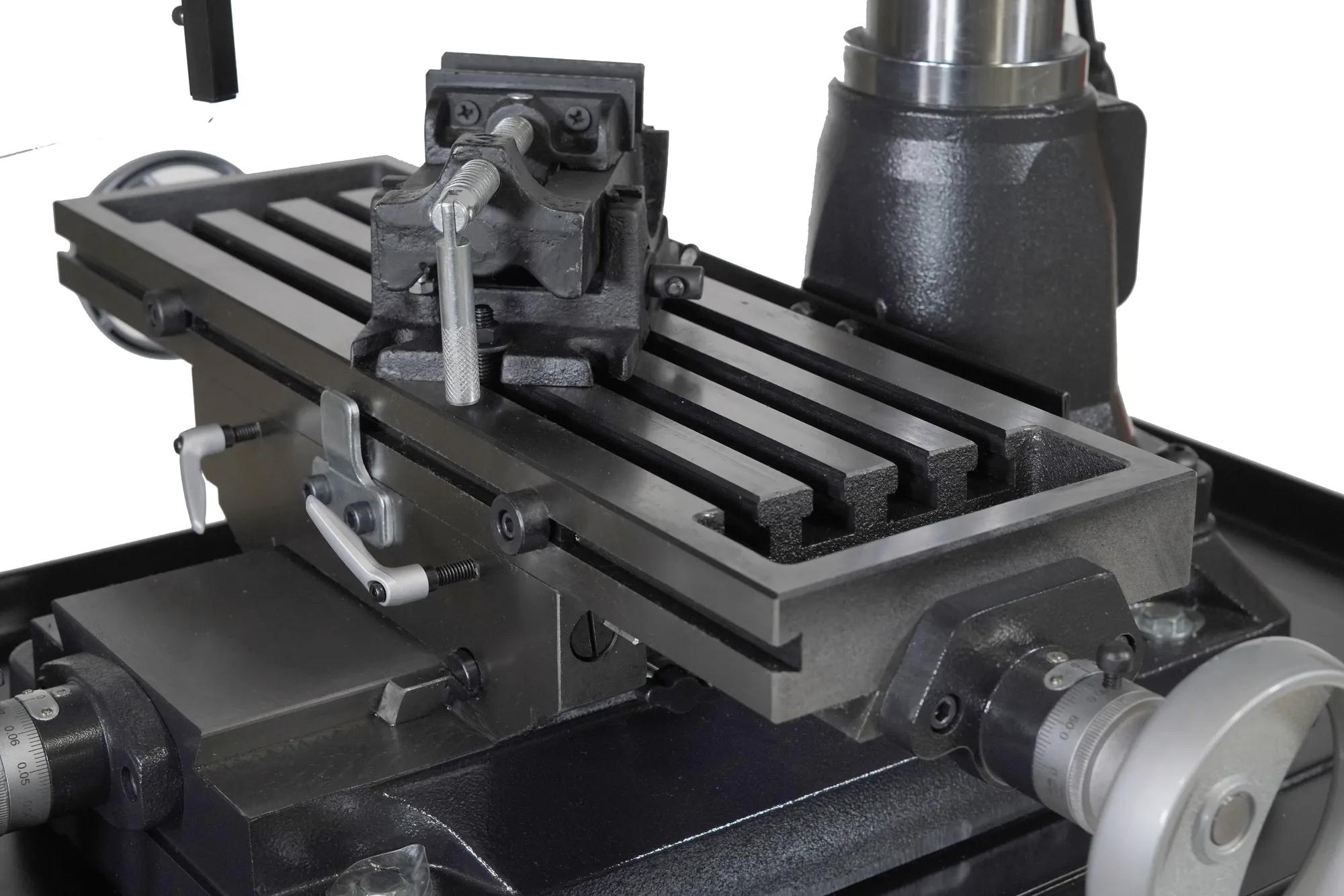

Drill press style angle vise locks material in place
Drill chuck & arbor allow easy changes from drilling to milling
360° head swivel allows milling or drilling of oversized material

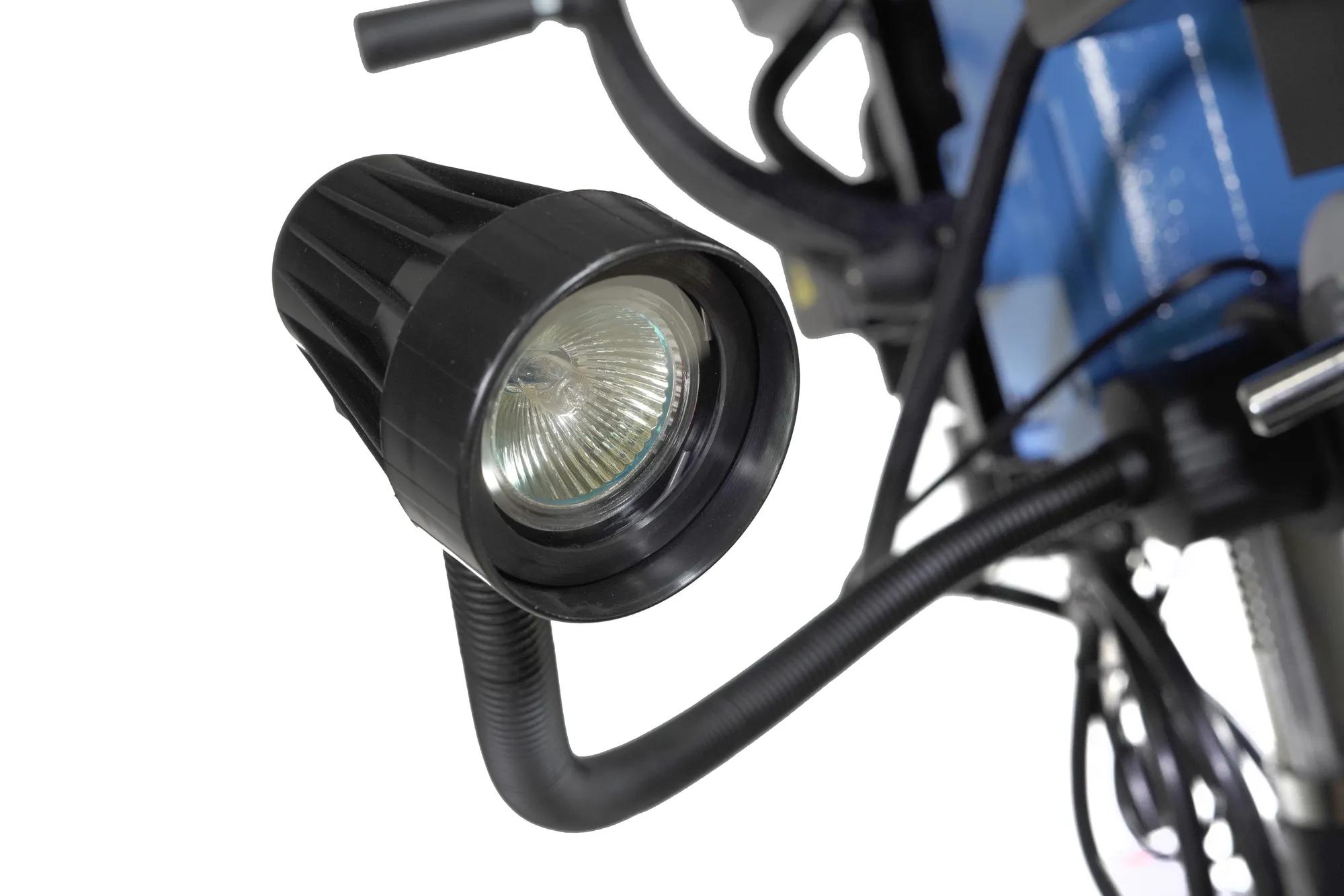

Articulated LED lamp illuminates your workpiece
Performance
Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection
Easy-to-read external depth gauge for accurate milling & drilling
| Stock Number | BA9-1231787 |
|---|---|
| Base Dimensions (In.) | 12-1/2 x 19-3/4 |
| Column Diameter (In.) | 3-5/8 |
| Drilling Capacity (In.) | 1.5 |
| Max Distance Spindle to Table (In.) | 14-1/2 |
| Model Number | VMD-15 |
| Motor (HP) | 1 |
| Number of Spindle Speeds | 12 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 2-7/16 |
| Range of Spindle Speeds (RPM) | 110 - 2580 |
| Spindle Taper (In. x TPI) | R8 |
| Spindle Travel (In.) | 4.75" |
| Swing (In.) | 14-1/2 |
| T-Slots Number and Size (In.) | 4 and 9/16 |
| Table Size (L x W) (In.) | 7-1/2 x 23 |
| Warranty | 1 Year |
| Work Table Weight Capacity (Lbs.) | 350 |
| Gross Weight | 457.0 |
| Net weight | 370.0 |
| Product Lease Price | 77 |
