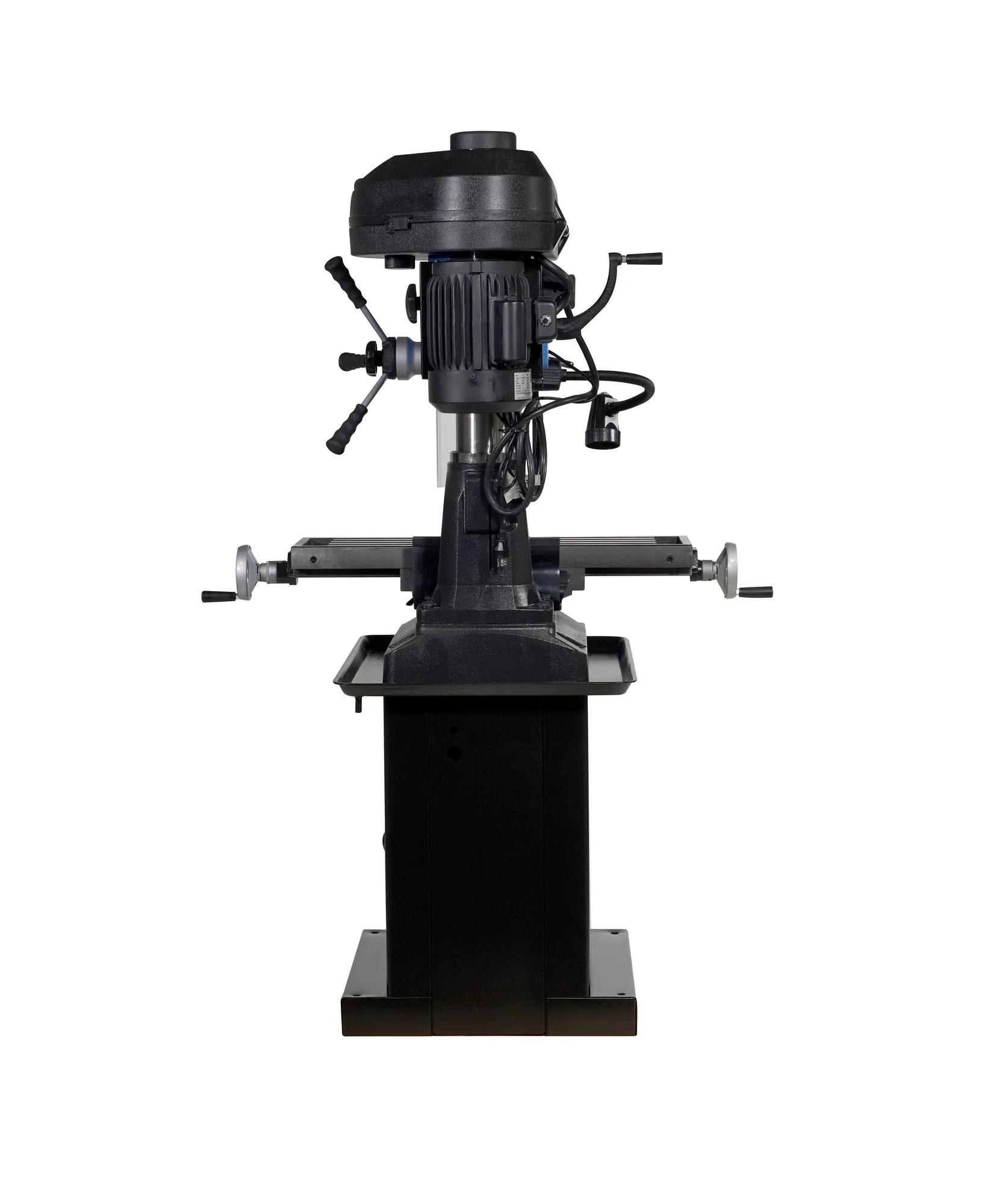

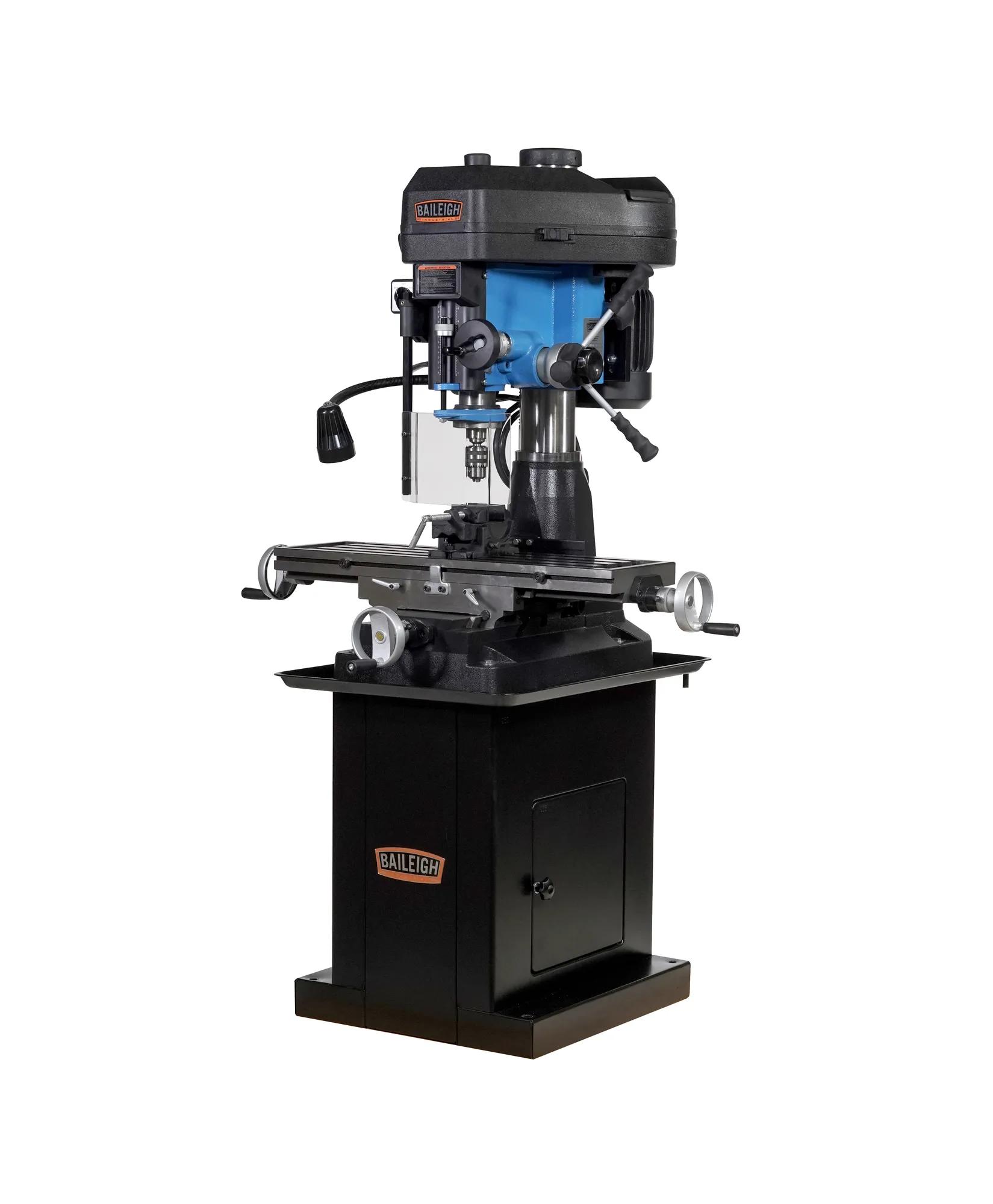

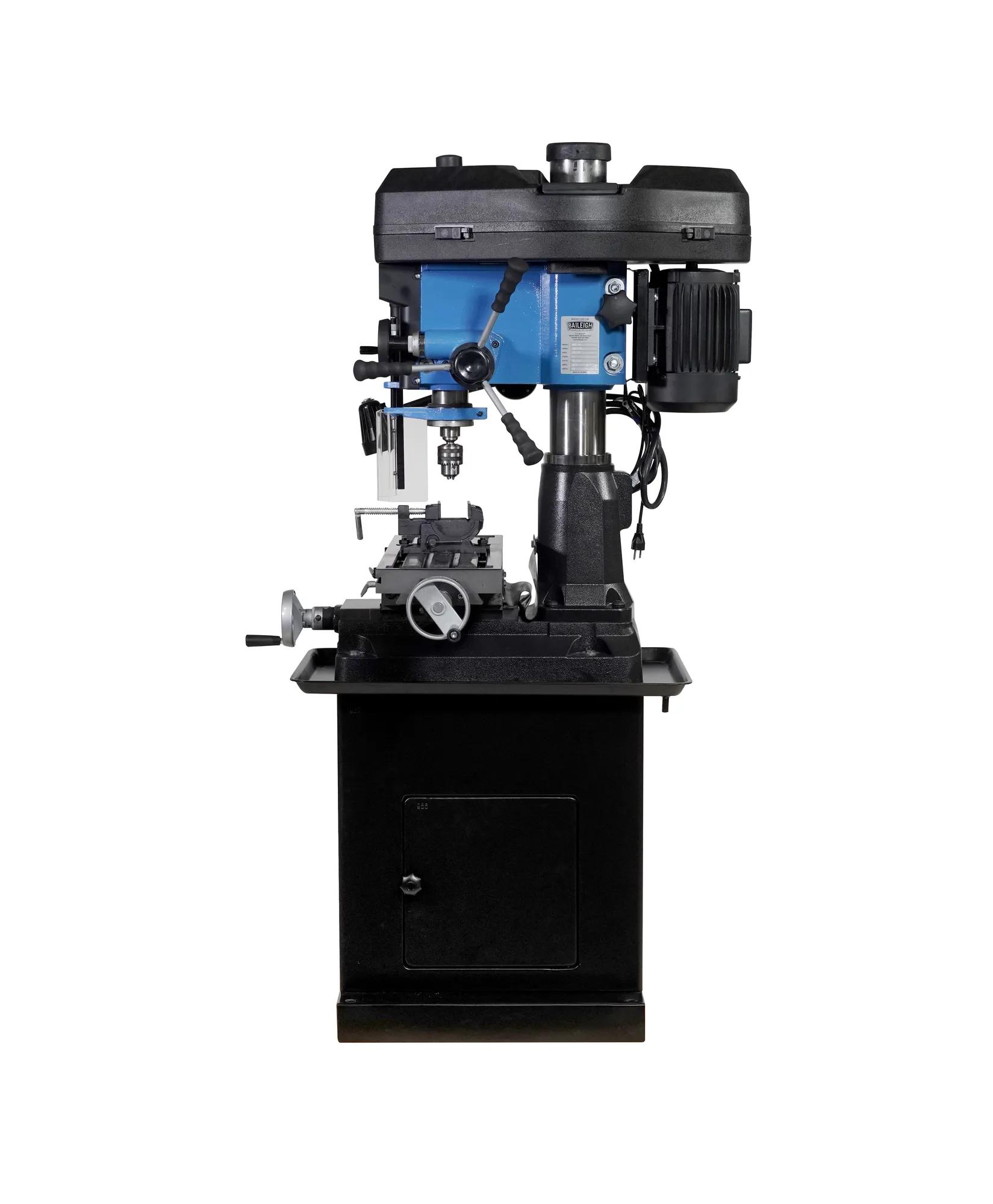

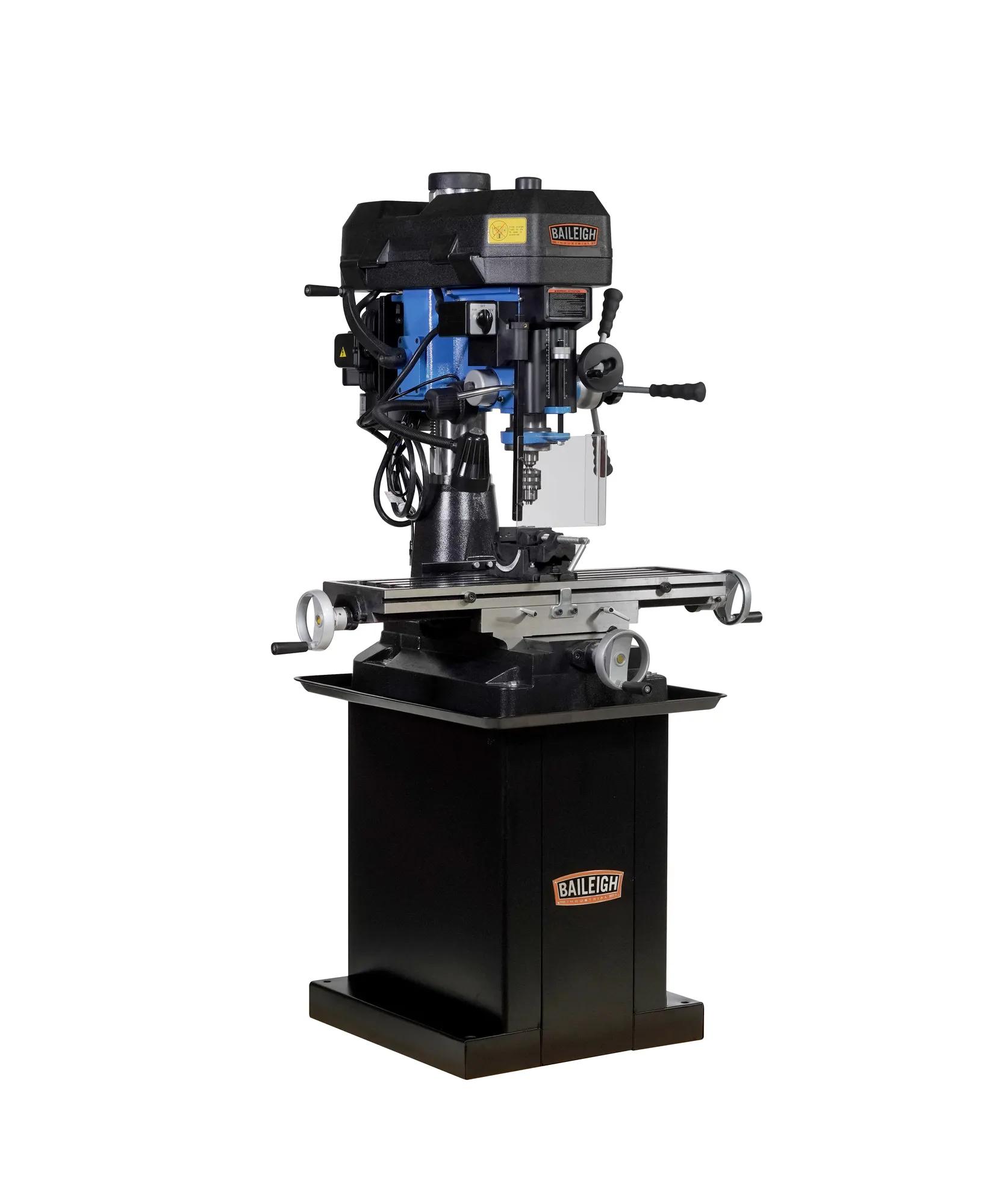

VMD-18 - 18" Mill Drill with R-8 Taper
Stock Number:
BA9-1231788
$3,339.00
Enhanced Bullet 1:
115V 2hp motor.
Enhanced Bullet 2:
R8 taper
Enhanced Bullet 3:
1.25” drilling capacity.
Enhanced Bullet 4:
12 speeds: 150 to 3000 rpm.
Leasing starts at $77 with Click LeaseYou are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.
Product Overview
The Baileigh VMD-18 Mill Drill is the perfect option when operators need to do some light-duty milling that doesn't require a full-size milling machine but still allows the use of R-8 tooling. The ability to drill and mill with one machine saves time and money and is perfect for maintenance departments, machine, welding, job, or even home shops. An optional stand is also available if bench space is at a premium.
Recommended for: Milling, drilling, tapping, and boring.
Manual
Efficiency

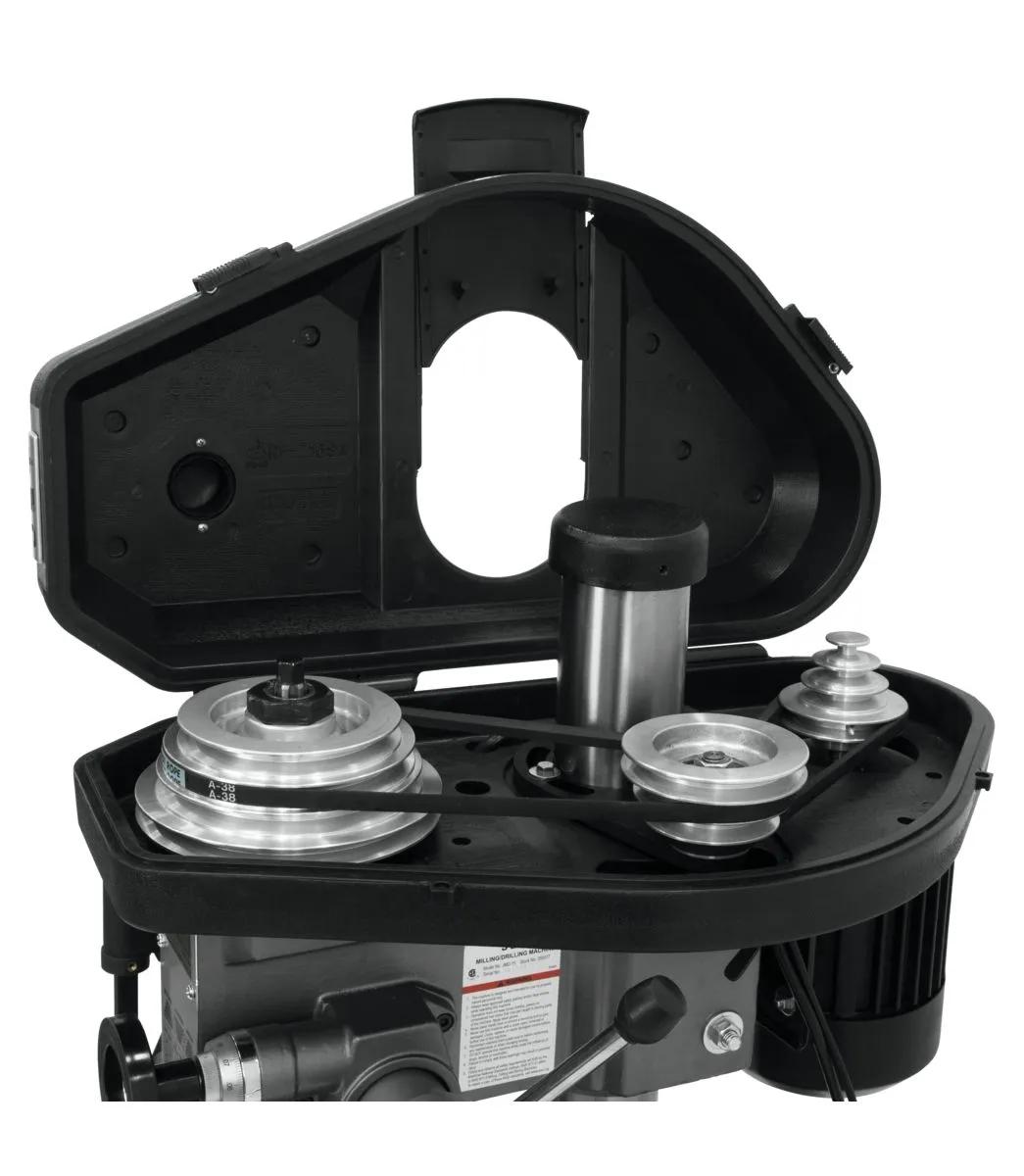

Belt-drive, step pulley system allows for rapid, easy speed changes to work with a variety of materials
Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds

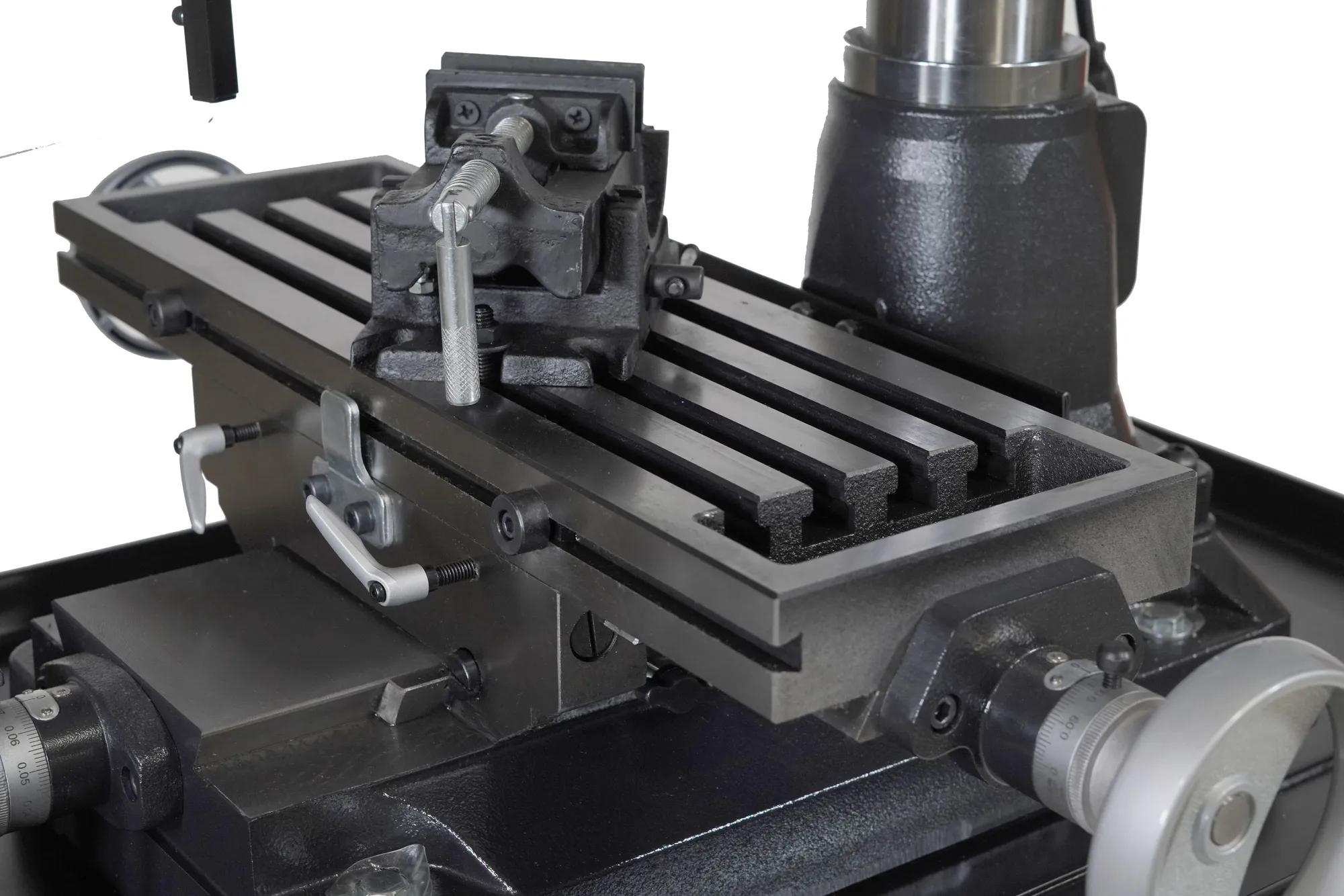

Drill press style angle vise locks material in place

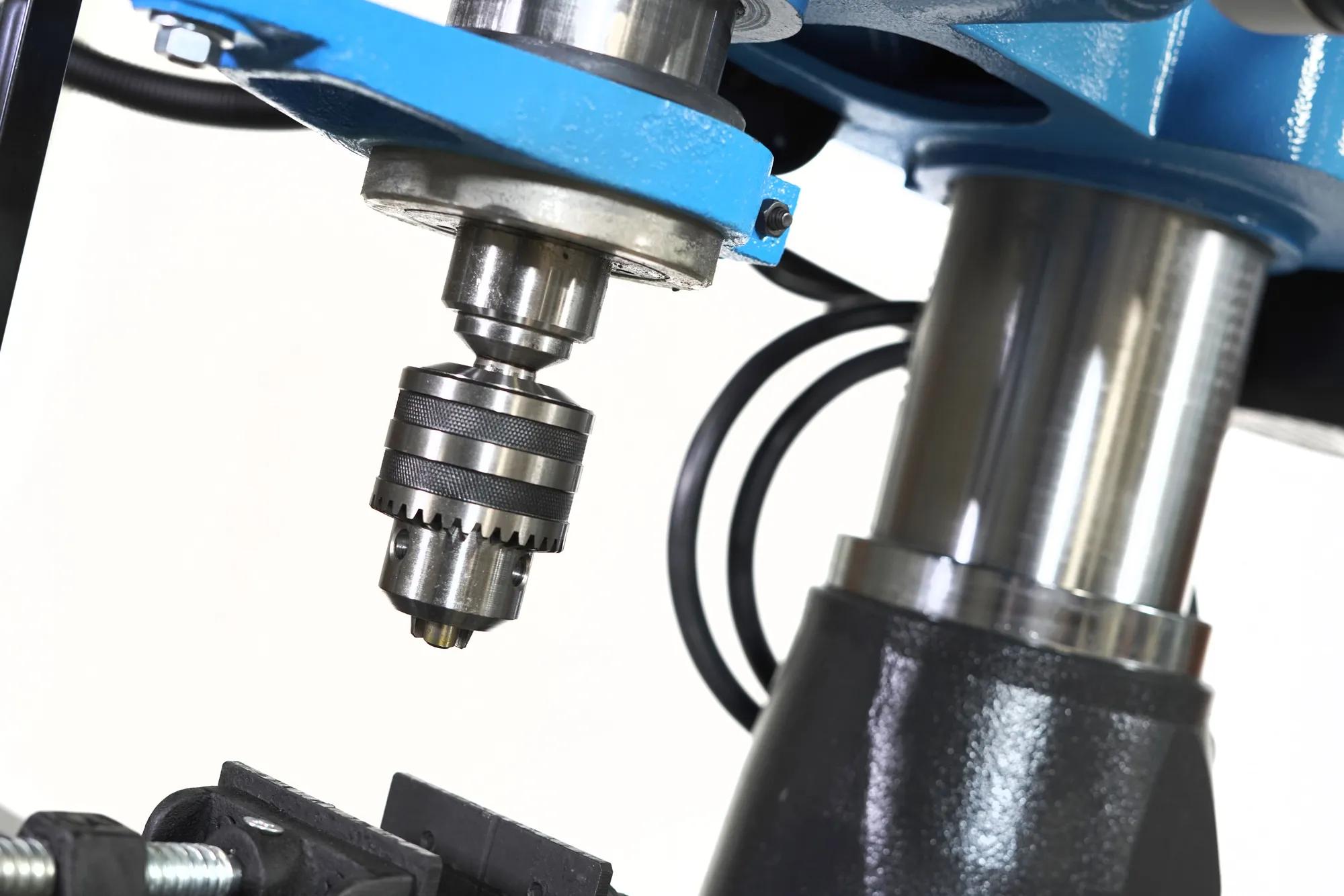

Drill chuck & arbor allow easy changes from drilling to milling
360° head swivel allows milling or drilling of oversized material

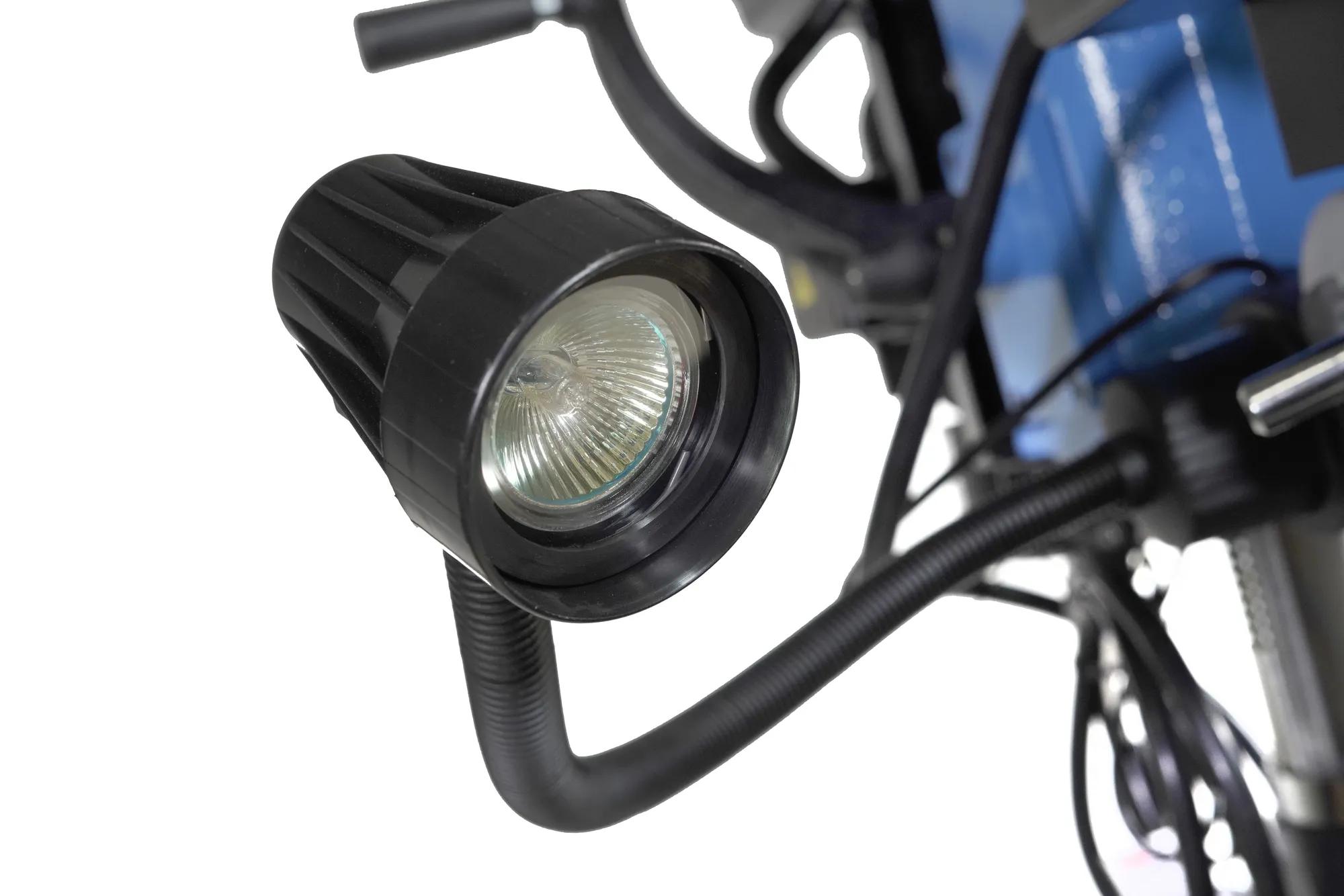

Articulated LED lamp illuminates your workpiece
Performance
Single piece, the cast iron column provides stable support for precise milling or drilling reducing deflection

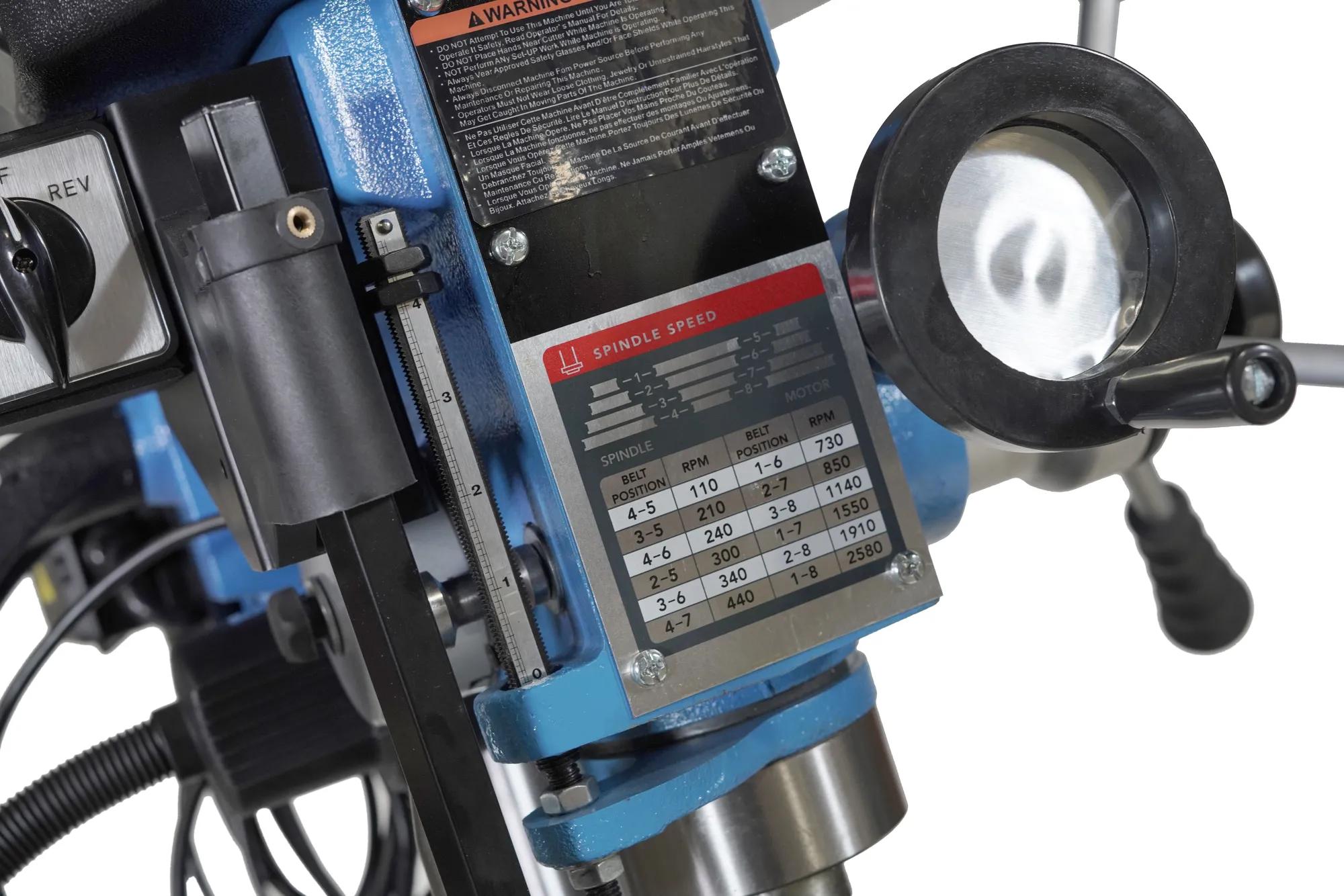

Easy-to-read external depth gauge for accurate milling & drilling
| Stock Number | BA9-1231788 |
|---|---|
| Base Dimensions (In.) | 15-3/4 x 23-3/4 |
| Column Diameter (In.) | 4-1/2 |
| Drilling Capacity (In.) | 1.5 |
| Model Number | VMD-18 |
| Motor (HP) | 1-1/2 HP, 115V, 1Ph |
| Number of Spindle Speeds | 12 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3" |
| Range of Spindle Speeds (RPM) | 150-3000 |
| Spindle Taper (In. x TPI) | R8 |
| Spindle Travel (In.) | 4.75" |
| Swing (In.) | 15-7/8 |
| T-Slots Number and Size (In.) | 4 & 5/8 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 32-1/4" x 9-1/2" |
| Warranty | 1 Year |
| Weight (Lbs.) | 660 |
| Work Table Weight Capacity (Lbs.) | 400 |
| Gross Weight | 682.0 |
