DP-3814B - Bench Top Drill Press

Stock Number
BA9-1228211
$1,220.00

Click LeaseLeasing starts at $33 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $33

Product Overview

Looking for a small, compact, bench top drill press that has the power to do any task you ask of it at an economical price? The DP-3814B 14" swing is just what you are looking for. This drill press runs smoothly even at full capacity—and will do so for years at your shop.

Questions? Please give us a call at 1-920-684-4990.


+ Show More
1/2 hp motor requires 110-volt power and will work at virtually any shop or site

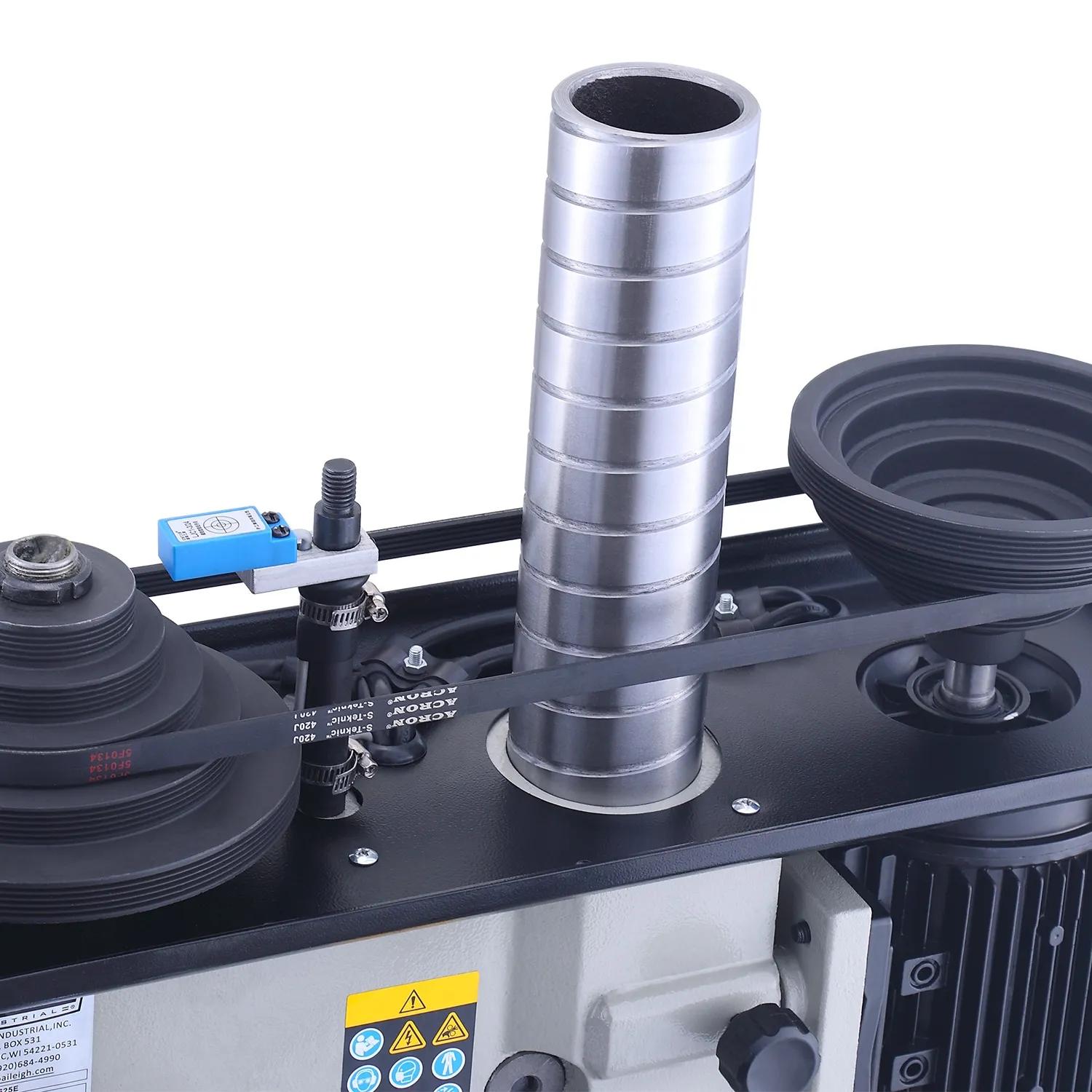

Belt-driven head drills a maximum capacity of 5/8” steel
Spindle speeds in the range from 250 to 2900 rpm to suit your application
2-3/4" wide steel column eliminates flexing even when drilling at full capacity

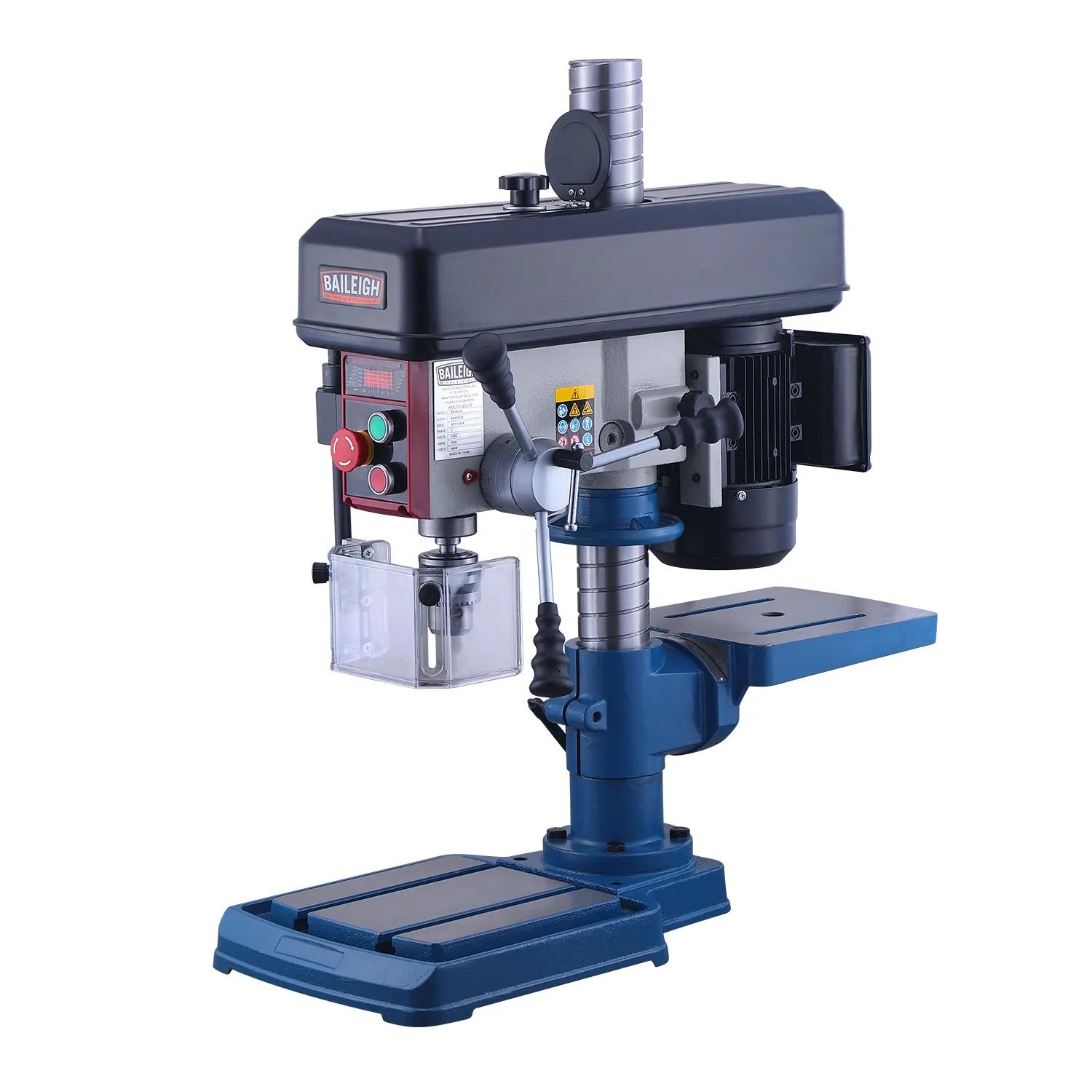

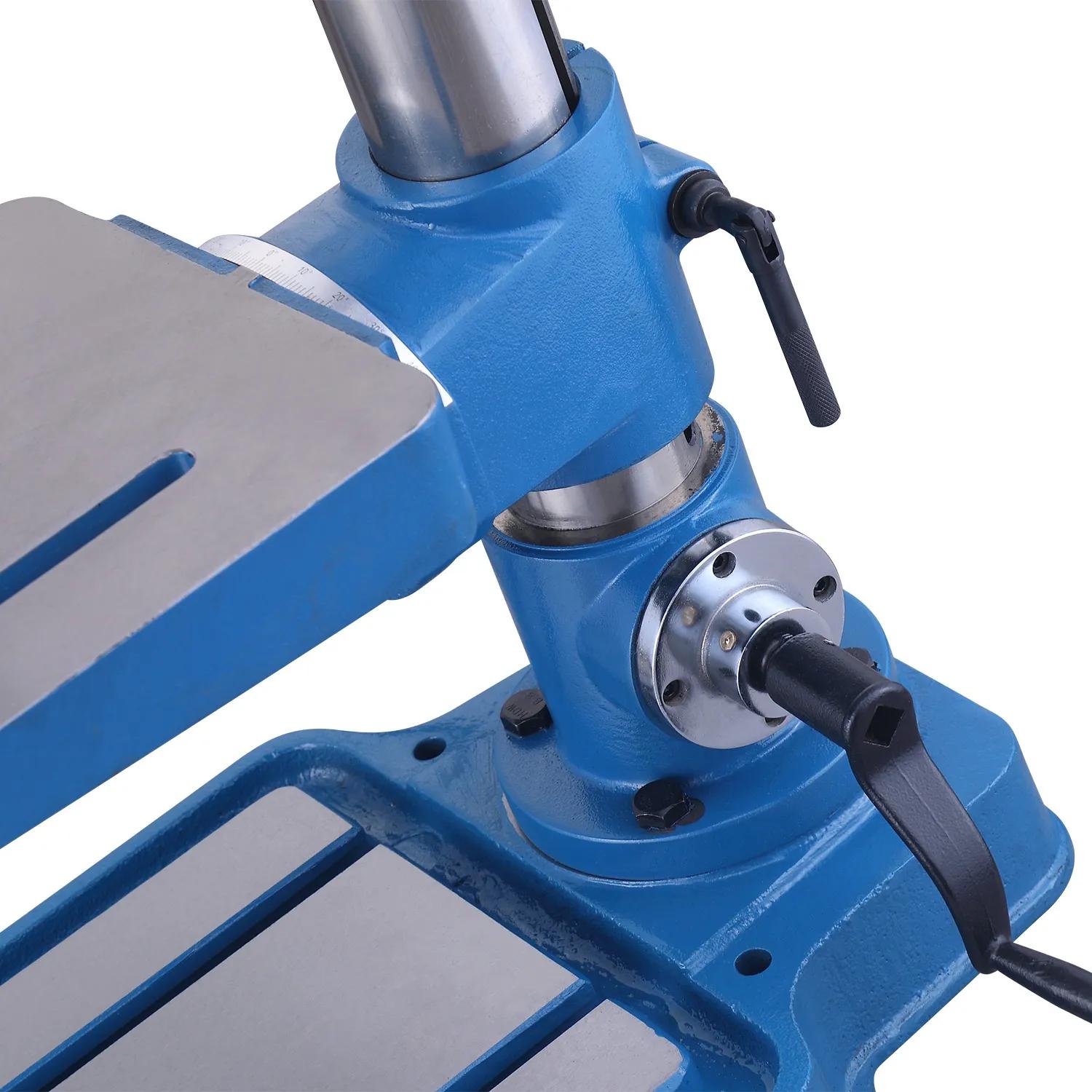

Easy to adjust table and head position with its clever screw type column
Rigid cast iron base and table add strength to the drill’s structure
The table even tilts left or right to 45 degrees
Includes a safety shield around the drill head to protect you
More Information
Stock NumberBA9-1228211
Base Size (In.)18-3/4" x 12-1/2"
Chuck Size (In.).03" - .625"
Column Diameter (In.)2-3/4
Drilling Capacity Mild Steel (In.)5/8
Headstock MovementYes (360 degrees)
Input Power110 Volt
Model NumberDP-3814B
Number of Spindle Speeds5
Overall Dimensions (L x W x H) (In.)26 1/4 x 13 x 38 1/4
Prop 65Cancer and Reproductive Harm
Quill Diameter (In.)1.85"/ 47mm
Range of Spindle Speeds (RPM)250-2900
Shipping Dimensions (L x W x H) (In.)48x31x16
Speeds16
Spindle Distance to Table (Max.) (In.)11-1/2"
Spindle TaperB16
Spindle Travel (In.)3-1/2
Swing (In.)14"
Table MaterialCast Iron
Table Size (In.)9" x 10-1/4"
Table T-Slot (In.)2 @ .531"
Table Tilt (Deg.)L or R 45 Degrees
Warranty1 Year
Working Load Limit (Lbs.)132
Gross Weight210.0
Net weight210.0
Distance From Spindle To Base (In.)19-5/8"
Shipping Weight (Lbs.)194
