DP-4016B-VS - 16" Variable Speed Bench Top Drill Press

Stock Number
BA9-1228213
$2,699.00
Click LeaseLeasing starts at $80 with Click Lease

You are able to calculate lease price on Click Lease's website.
Normally it takes no longer than 3 minutes.

Lease for $80

Product Overview

Looking for a small, compact, bench top drill press that has the power to do any task you ask of it including tapping?  The DP-4016B-VS is a 16" swing variable speed drill press that might just be what you are looking for. Unlike pulley-driven drills, this 16" drill press lets you run tooling at the proper speed to fit your application and extend tooling life.


Questions? Please give us a call at 1-920-684-4990.


+ Show More
3/4 hp motor requires 110-volt power and will work at virtually any shop or site.
Inverter-driven head drills a maximum capacity of 3/4” steel.
You can fine-tune the speed in the range from 0 to 2100 rpm to suit your application.
Auto-reversing tap has a tapping capacity of 1/2” steel.
2-3/4" wide steel column eliminates flexing even when drilling at full capacity.
Rigid cast iron base and table add strength to the drill’s structure.

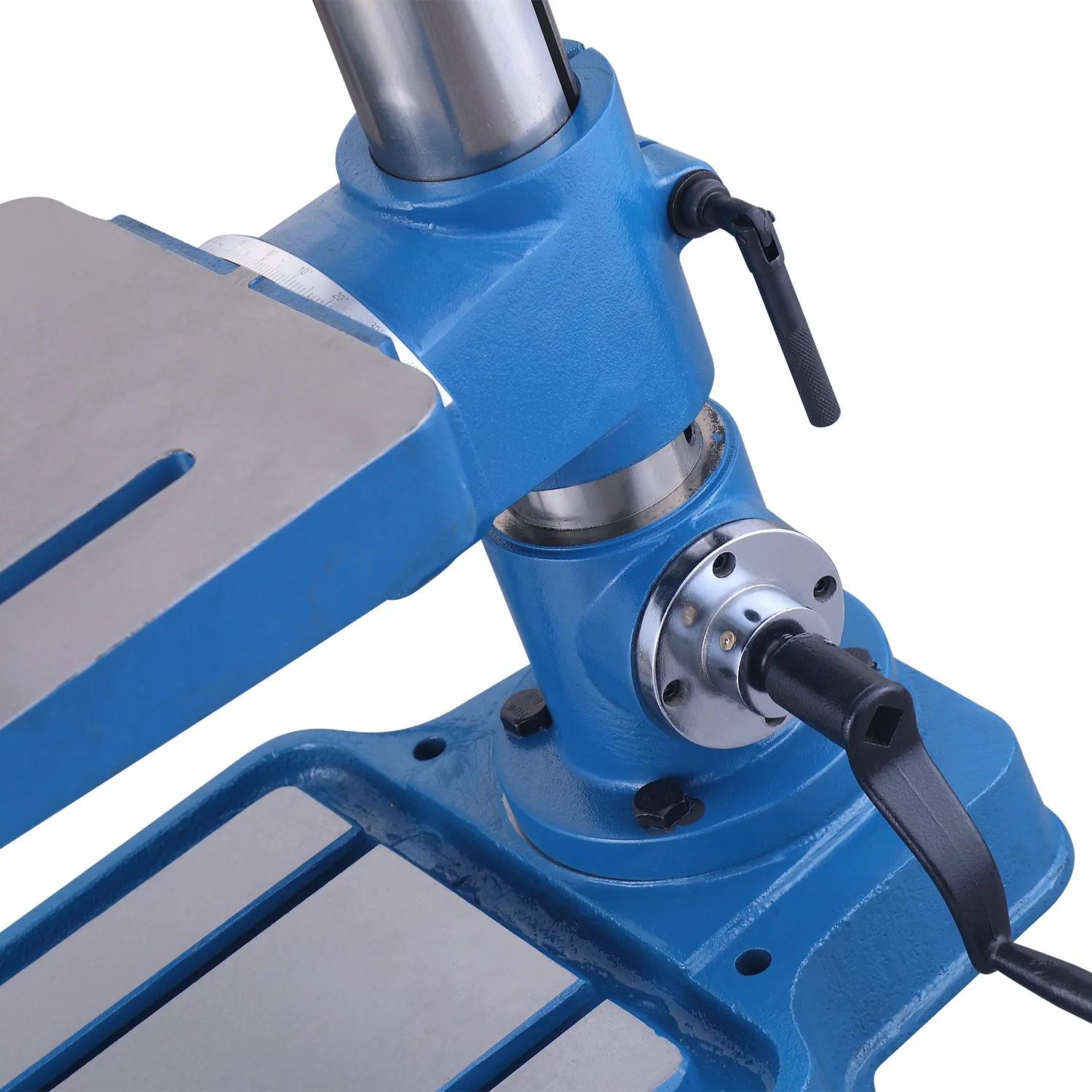

The table even tilts left or right to 45 degrees.
Includes a safety shield around the drill head to protect you.
Baileigh backs this bench-top drill press machine with a 1-year parts warranty and lifetime technical support by phone from our experienced team.
More Information
Stock NumberBA9-1228213
Base Size (In.)10.63” x 10.03”
Chuck Size (In.).03" - .625" (B16)
Column Diameter (In.)2-3/4
Distance Base to Spindle (Min.) (In.)22.83
Drilling Capacity Mild Steel (In.)3/4
Headstock MovementYes (360 degrees)
Horse Power (HP)0.7500
Input Power110 Volt
Model NumberDP-4016B-VS
Number of Spindle SpeedsVariable
Overall Dimensions (L x W x H) (In.)29.13" x 17.52" x 41.33"
Prop 65Cancer and Reproductive Harm
Range of Spindle Speeds (RPM)0-2100
Shipping Dimensions (L x W x H) (In.)48" x 30" x 21"
Spindle Distance to Table (Max.) (In.)13.18"
Spindle TaperMT2
Spindle Travel (In.)3.93"
Swing (In.)16"
Table MaterialCast Iron
Table Size (In.)11.14” x 9.76”
Table T-Slot (In.)2 @ .531"
Table Tilt (Deg.)L or R 45 Degrees
Tapping Capacity Mild Steel (In.)1/2"
Warranty1 Year
Weight (Lbs.)275
Working Load Limit (Lbs.)132
Gross Weight270.0
Distance From Spindle To Base (In.)22.83
Shipping Weight (Lbs.)275
