AH-24R Hand Held Planishing Hammer

Stock Number
BA9-AH24R
$1,789.00

Product Overview

This hand held planishing hammer is an air-powered model lands 3,200 beats per minute to give you a smooth finish. It arrives fully assembled with 7 dies.


+ Show More
16 gauge mild steel capacity.
Adjustable throat depth; comes standard with 24".
Air motor runs on just 90-120 psi.
Completely rebuildable air motor lets you change the characteristics of the hit for your application.
Top and bottom supports have adjustable length for offset planishing.

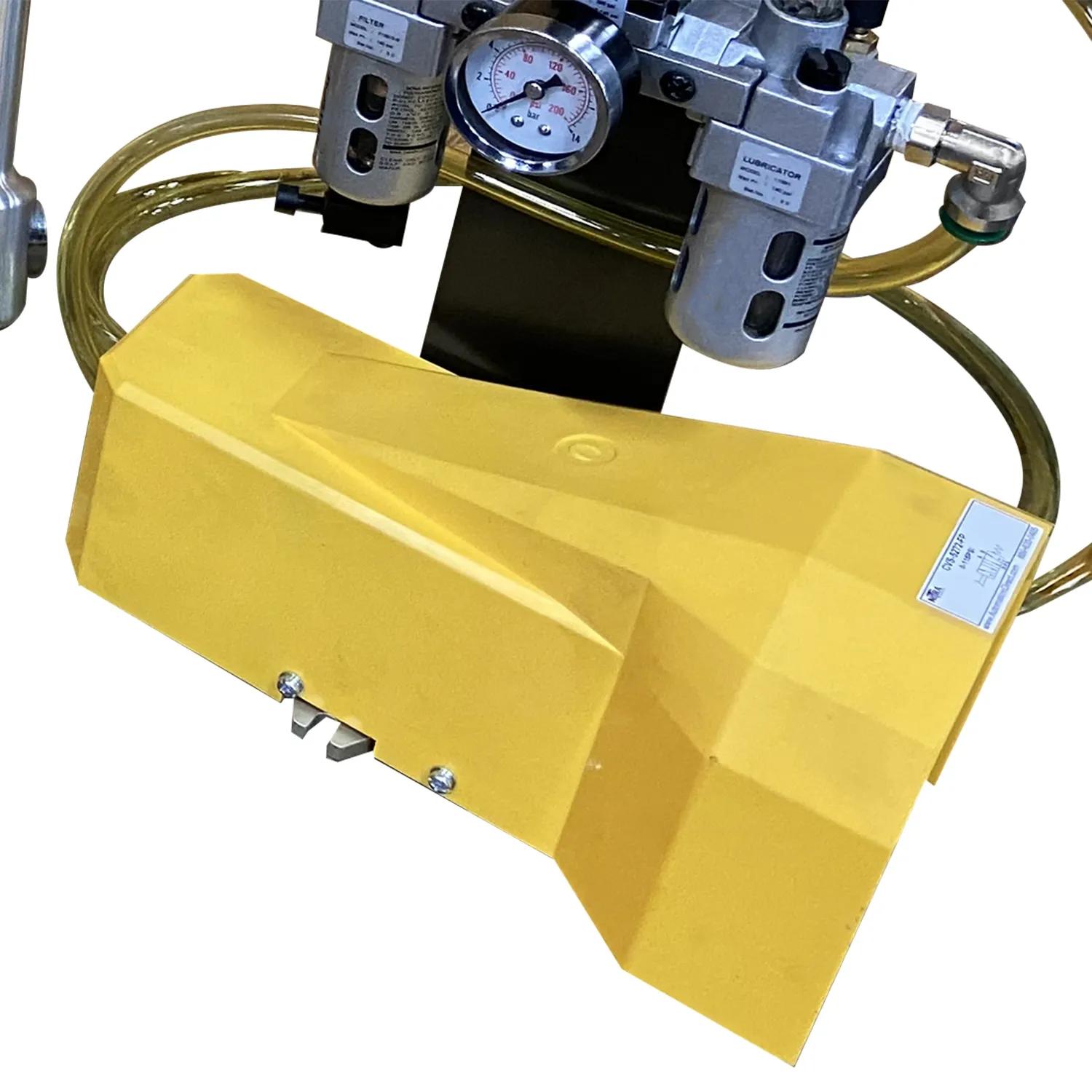

Foot pedal operation leaves your hands free to move the material.
Includes 7 radius dies: flat, 2”, 3”, 6”, 8”, 12”, 24" and 36”.

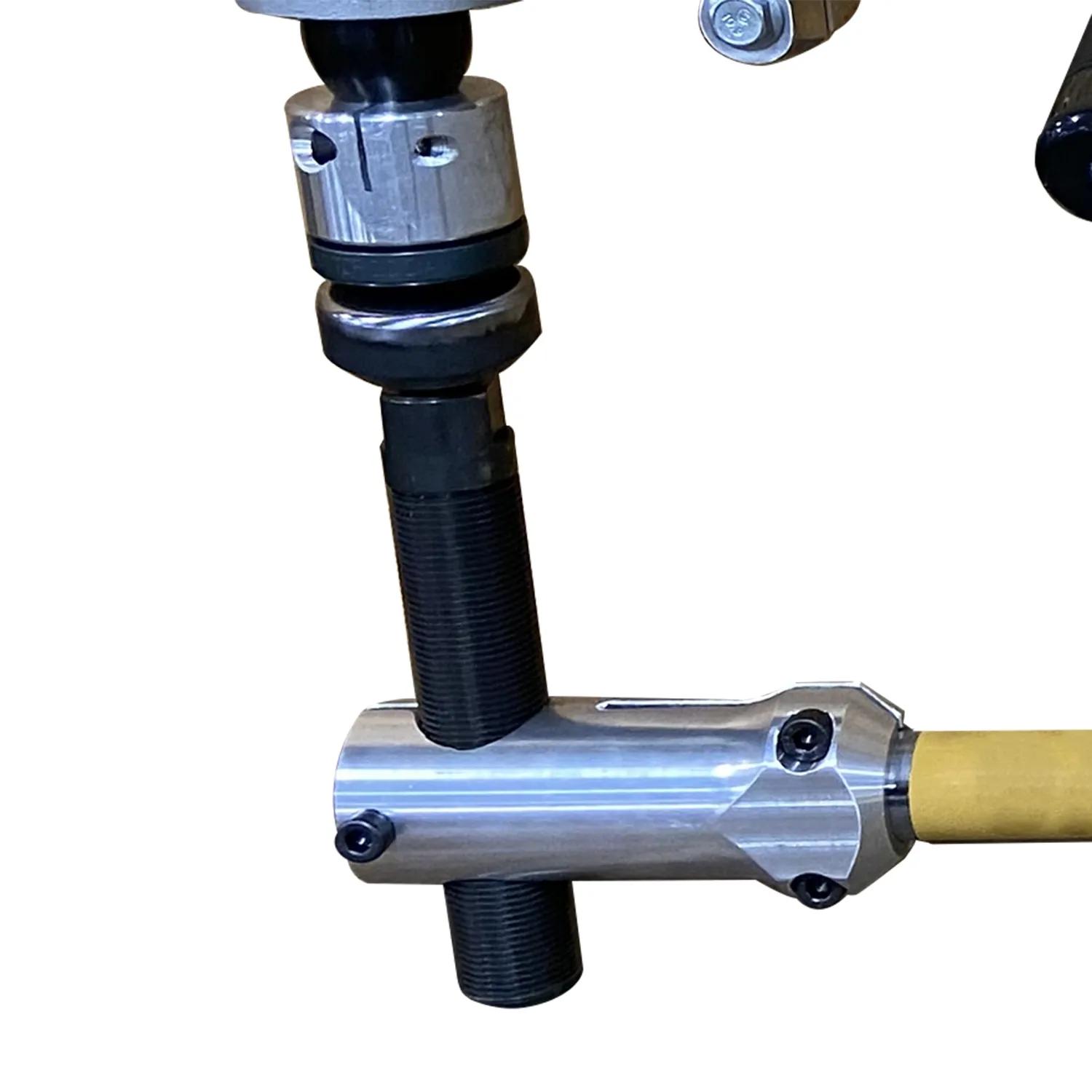

Captured 2.5" dia. top die; rubber O-ring detent keeping the top die from falling out when material is removed.

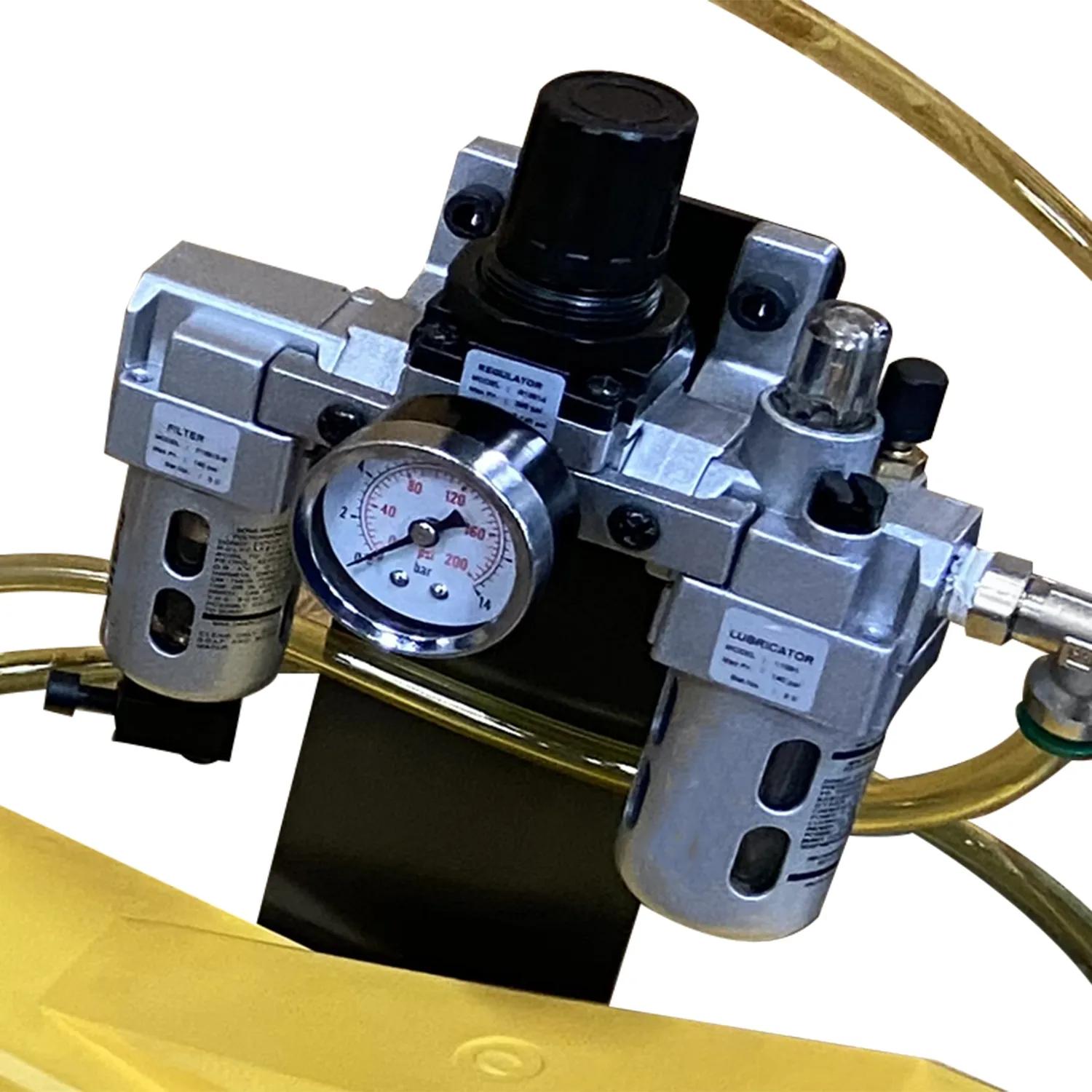

Automatic oiler keeps your machine running smoothly and saves you time on maintenance.
We offer an optional stand for more conventional applications.
More Information
Stock NumberBA9-AH24R
Aluminum Capacity (Gauge)14.0000
Included ToolingFlat 2", 3", 6", 12", 24" Radii
Input Power90 - 120 Psi.
Mild Steel Capacity (Gauge)16.0000
Model NumberAH-24R
Prop 65Cancer and Reproductive Harm
Range of Speeds3200 beats / minute
Shipping Dimensions (L x W x H) (In.)60x44x68
Throat Depth (In.)24" adjustable
Warranty1 Year
Weight (Lbs.)275
Gross Weight284.0
Net weight284.0
Tooling Height Adjustment (In.)11
